Description

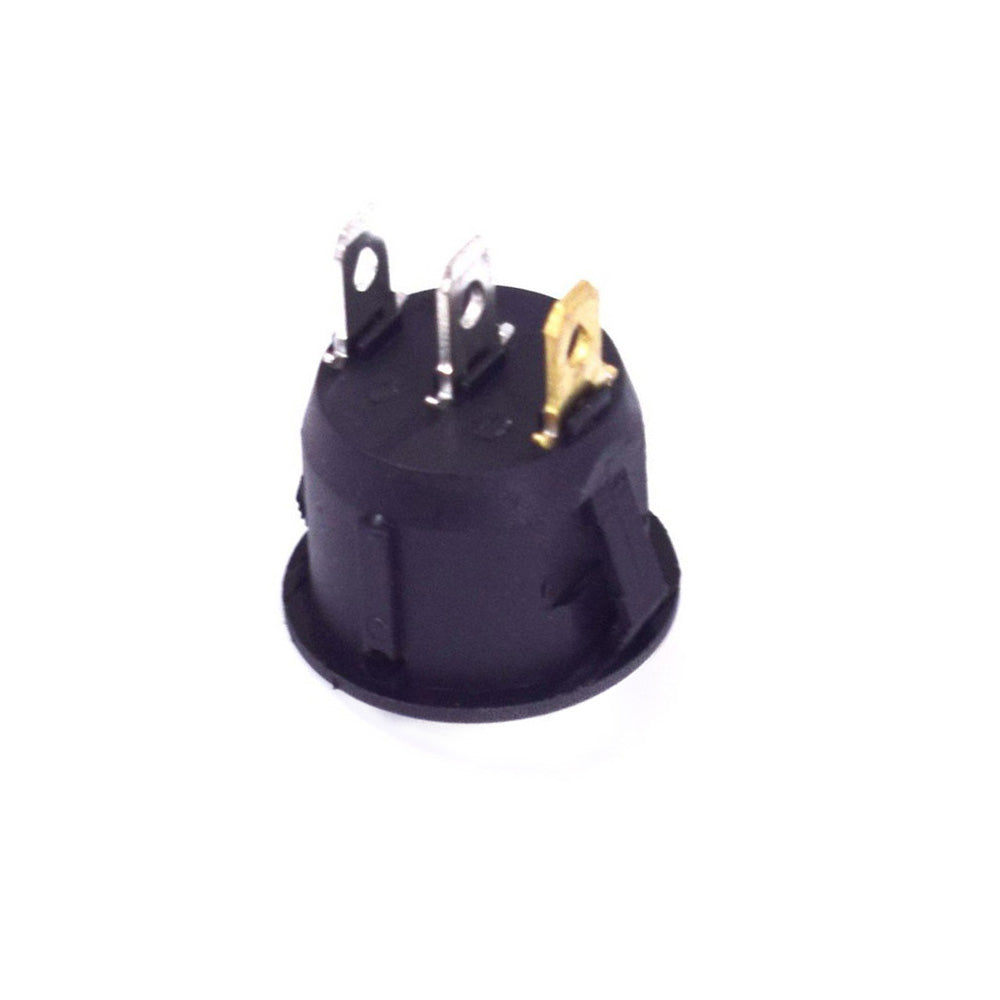

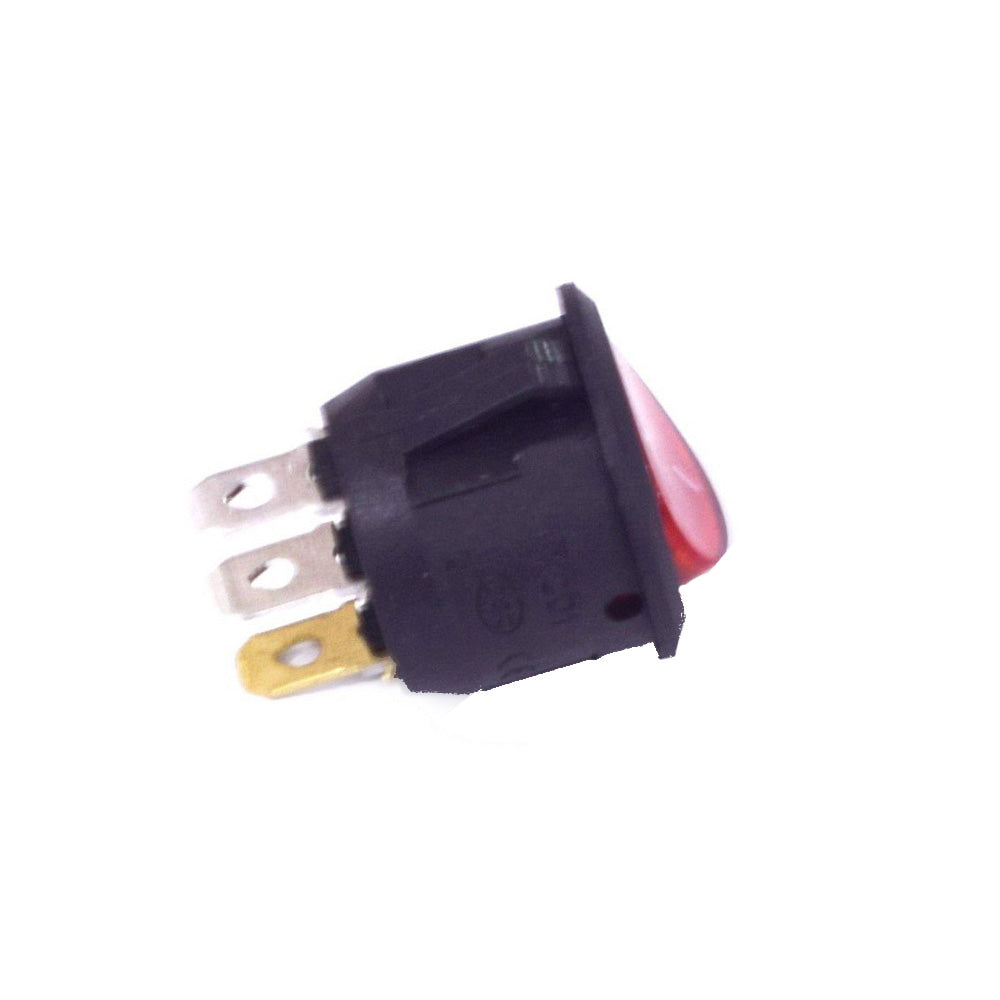

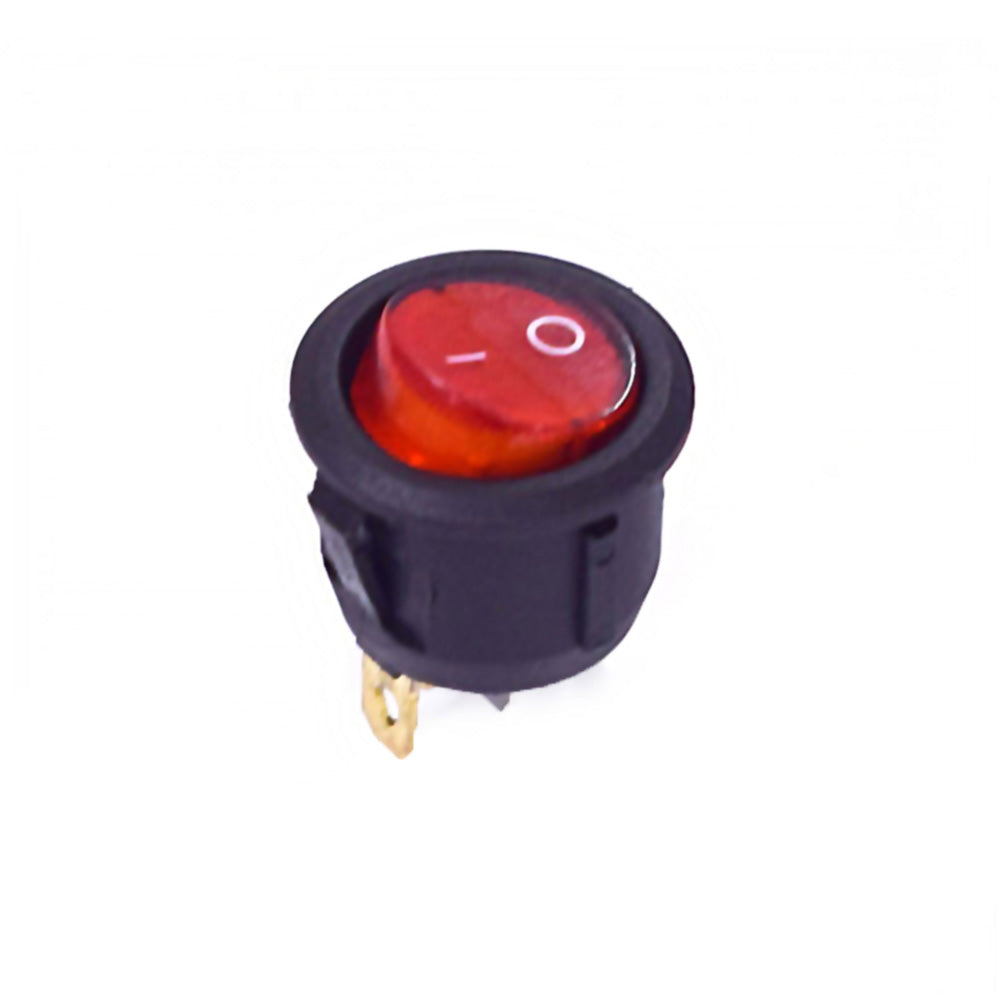

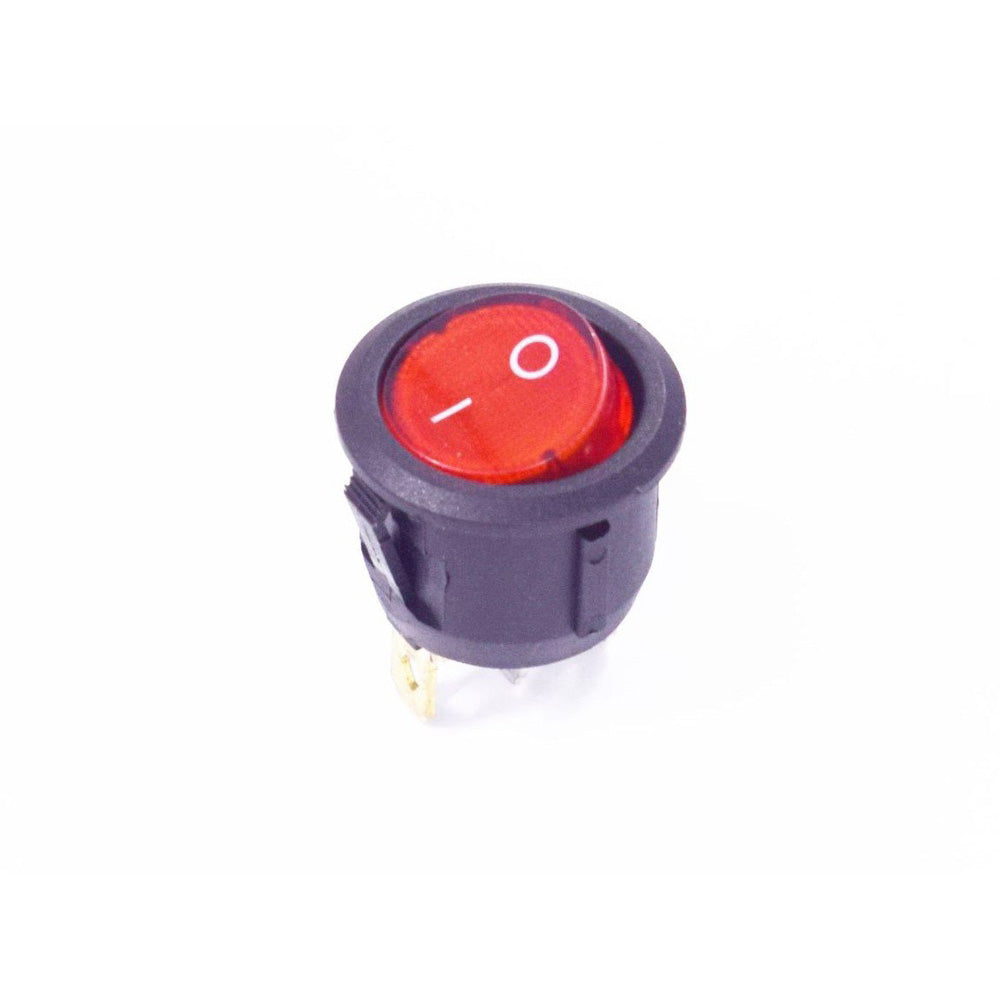

SPST(Single Pole Single Throw) rocker switch is simplest power control switch. SPST Round Rocker switches have two positions which are ON and OFF. To make identification of the position of the button easy ON and OFF positions are clearly marked on the button as I and O respectively. This button also features a LED light in it. It is very easy to install and requires no screws or nut-bolts. The life on the switch lies between 50000 to 100000 cycles. This switch is rated for a load of 10A 250V.
Specifications
| Voltage and Current Rating | Max 6A @ 250VAC, 10A @ 125VAC |
| Switching Mode | ON-OFF |
| Structure | SPST |
| Colour | Red |
| Number of Pins | 3 |
| Diameter | 16mm |
| Overall Size | 23x17(mm) |
| Country of Origin | China |
