Description

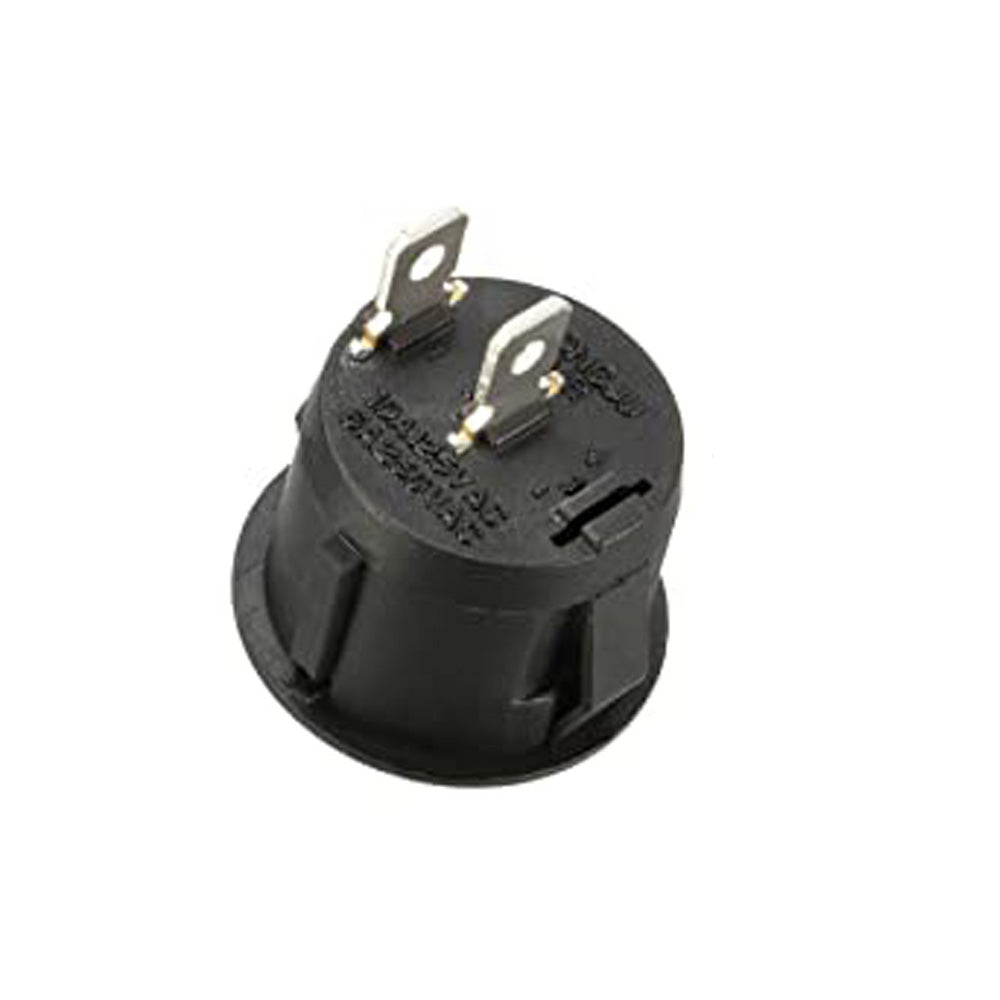

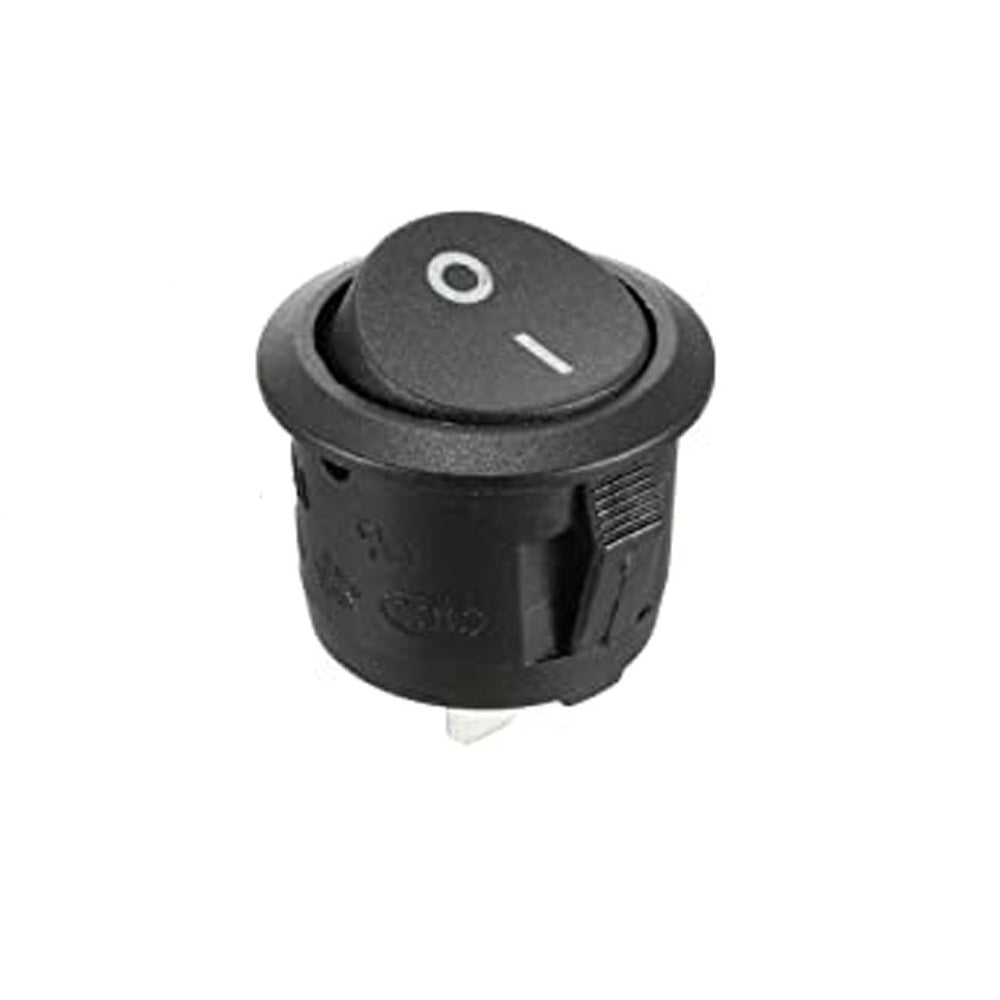

It's a 6A 250V AC SPST ON-OFF Round Rocker Switch. This is a simple On/Off SPST Rocker Switch. There are no screws needed; it simply clips into place. This is a simple two-pin switch; simply cut one of the two power wires and solder each end to the unit. This 6A 250V AC On-Off Rocker Switch is ideal for controlling power to electronic circuits, robots, and other similar devices. It is the best On/Off Rocker Switch with a high load rating and the ideal size for all general-purpose On/Off applications.
Specification
| Rating | 6A/250V AC |
| Switch Mode | ON-OFF |
| Switch Type: | Rocker Switch, SPST |
| Number of Pins: | 2 |
| Outer Diameter | 23mm |
| Height | 29mm |
| Mounting Whole Diameter | 20mm |
| Pon Pitch | 7.8mm |
| Country of Origin | China |
