Description

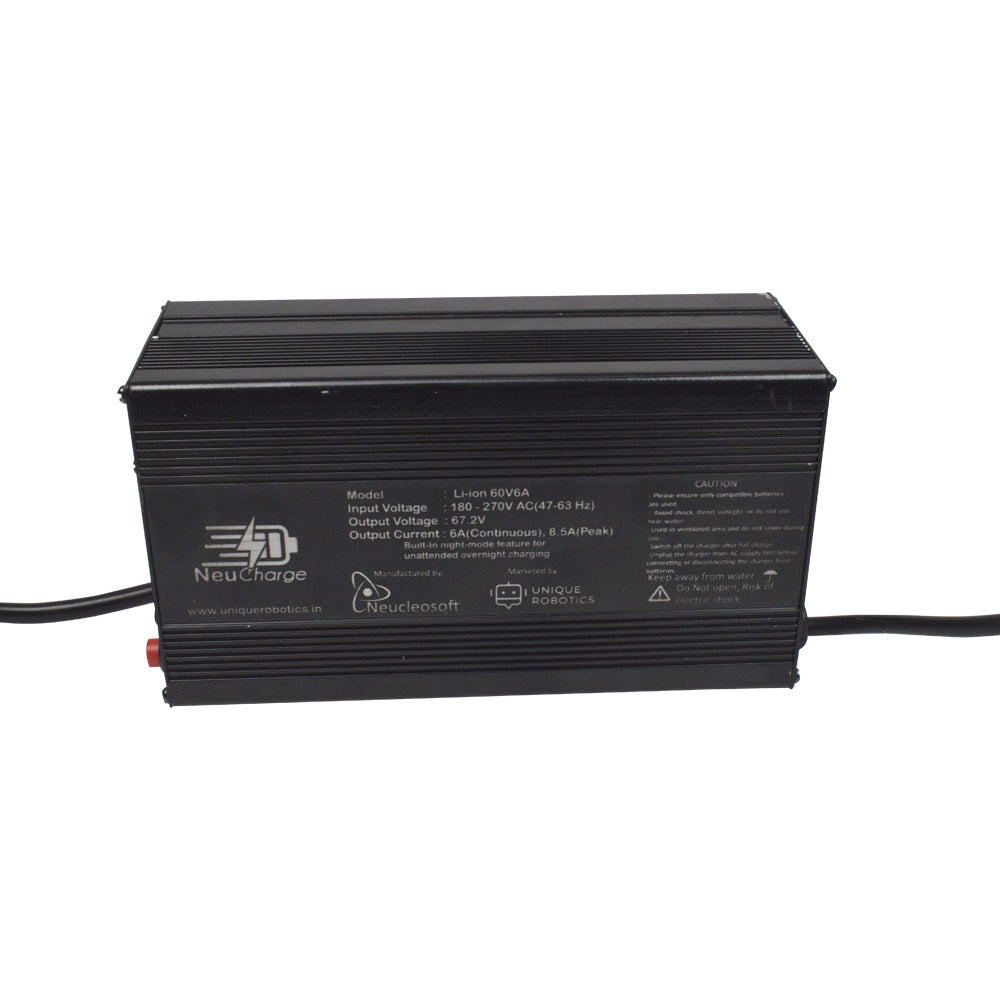

This is a 60V 6A Li-ion Battery Charging Power Supply. The Nominal Output Voltage is 67.2V with a continuous 6A current. It has a Built-in night mode feature for unattended overnight charging. The Input voltage is 180-270V AC Supply. This power supply encloses with a plastic body whose dimension is 195mm*106mm*76mm. The DC Interface is a type of female 3-Pin DC Cord with a 120mm length.
Features
- Build-in night mode feature for unattended overnight charging
- Good Quality
Applications
- Electric Vehicle Battery Charging.
Specifications
|  Model | Li-ion 60V6A |
|  Type |
Battery Charging Power Supply |
|  Input Power Source | 180-270VAC @(47-63 Hz) |
|  Output Voltage | 67.2 VDC  |
|  Continuous Output Current | 6A |
|  Peak Output Current |
8.5A |
|  Battery Charging Voltage  | 60V |
|  Size (L*W*D) (mm) | 195*106*76 (mm) |
|  Output DC Interface or Cord | 3-Pin Female Connector |
|  Length of DC Cable | 120mm |
|  Body Material  | Plastic |
|  Colour  | Black |
| Country of Origin | China |
