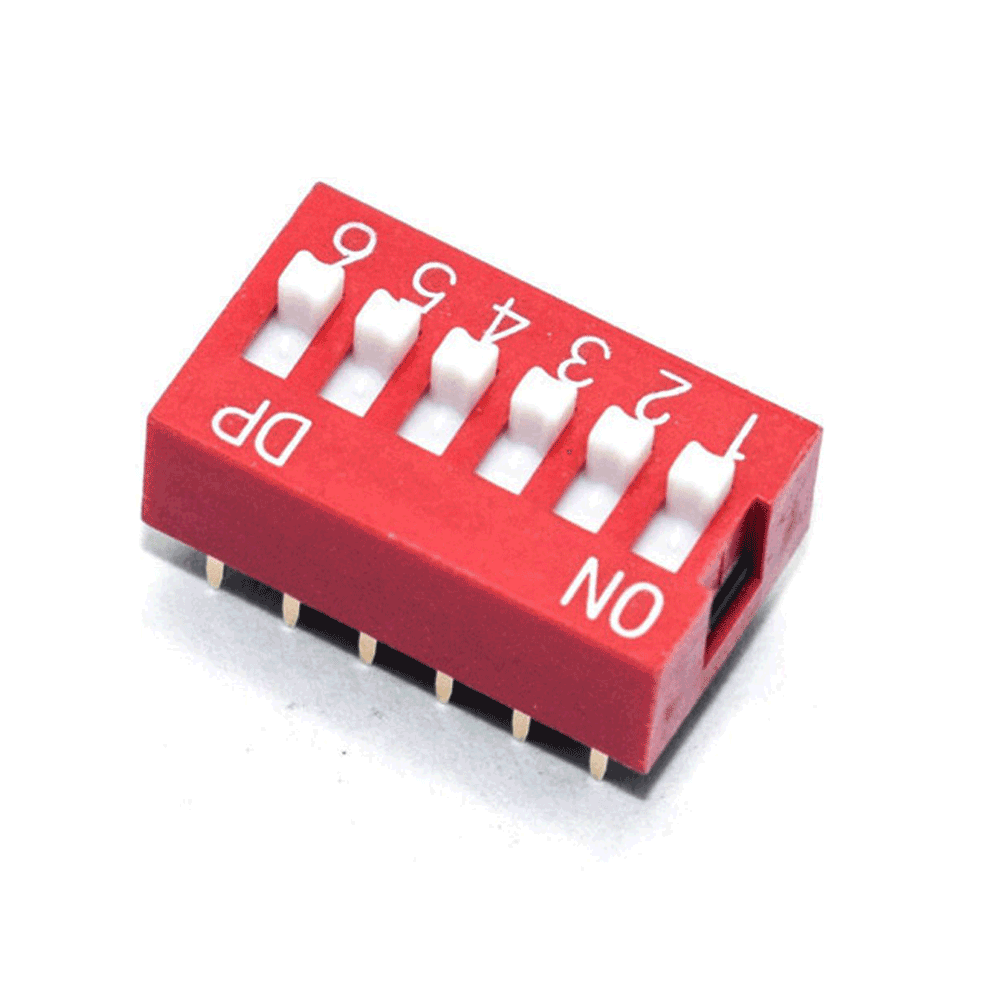

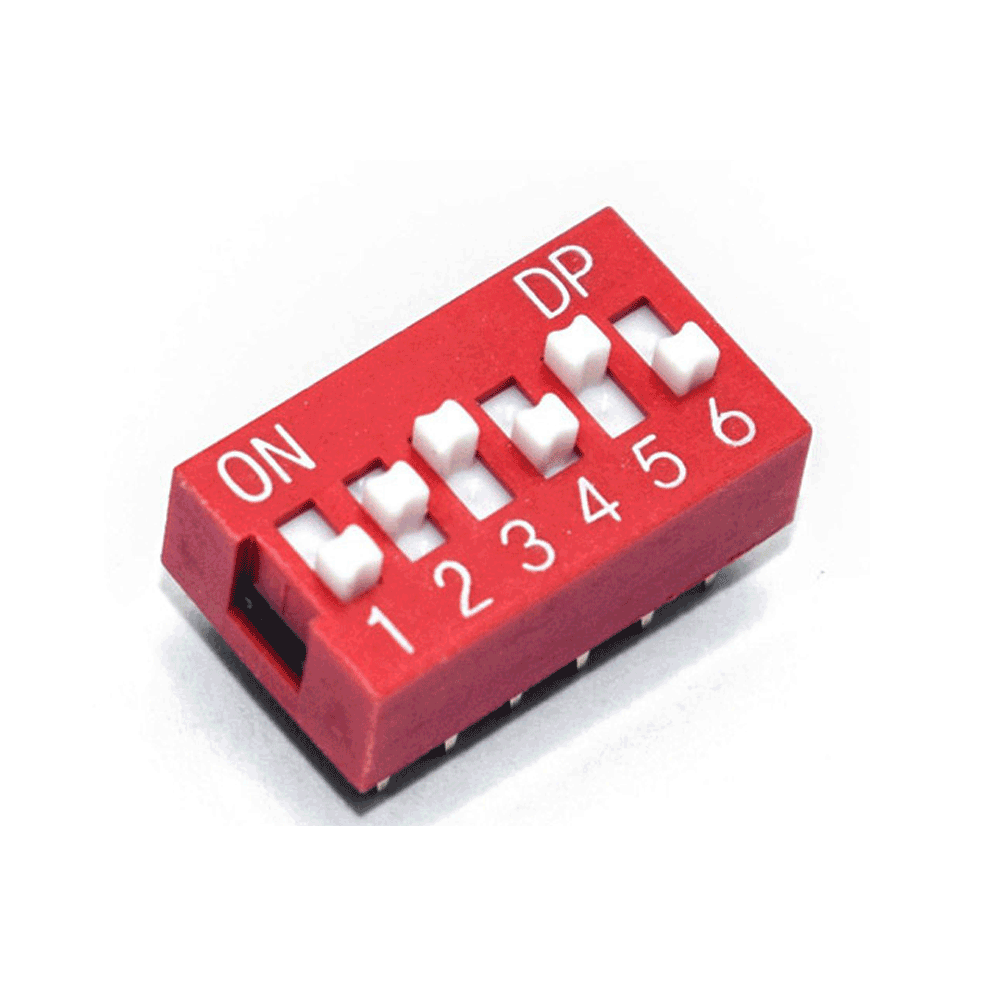

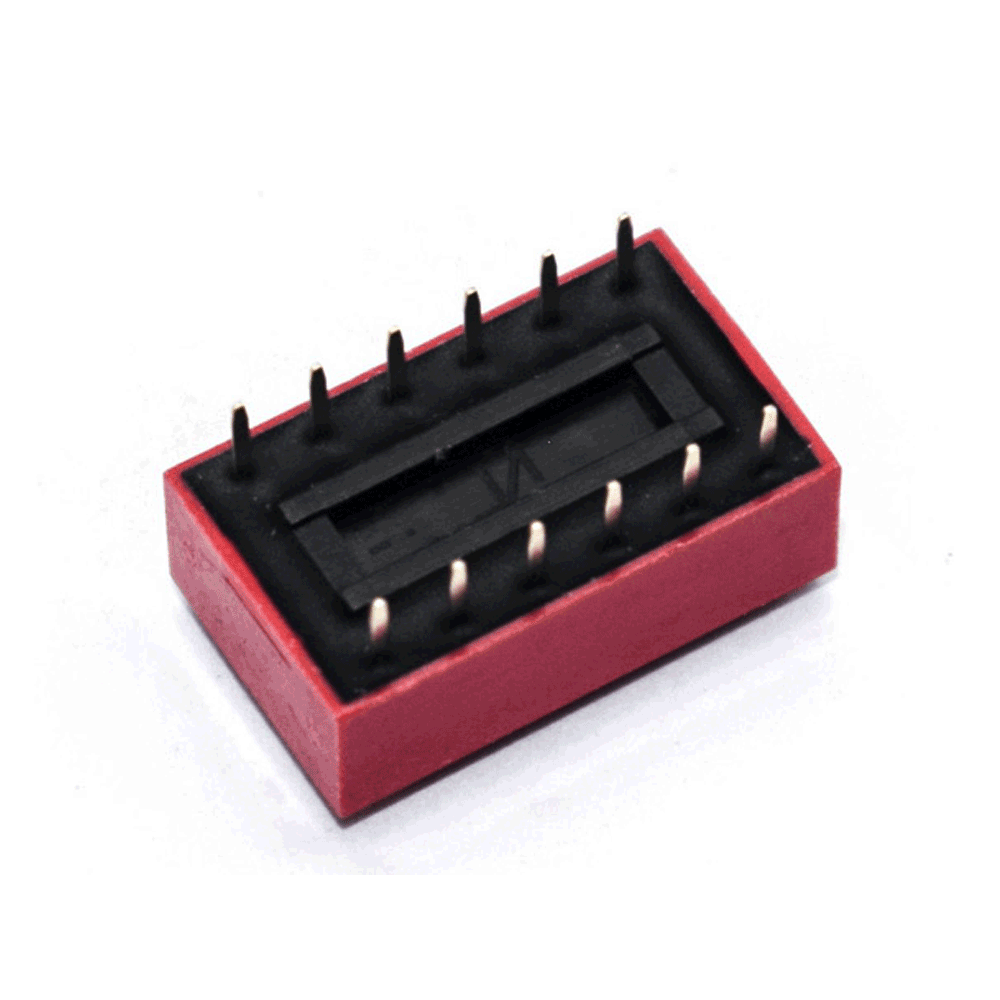

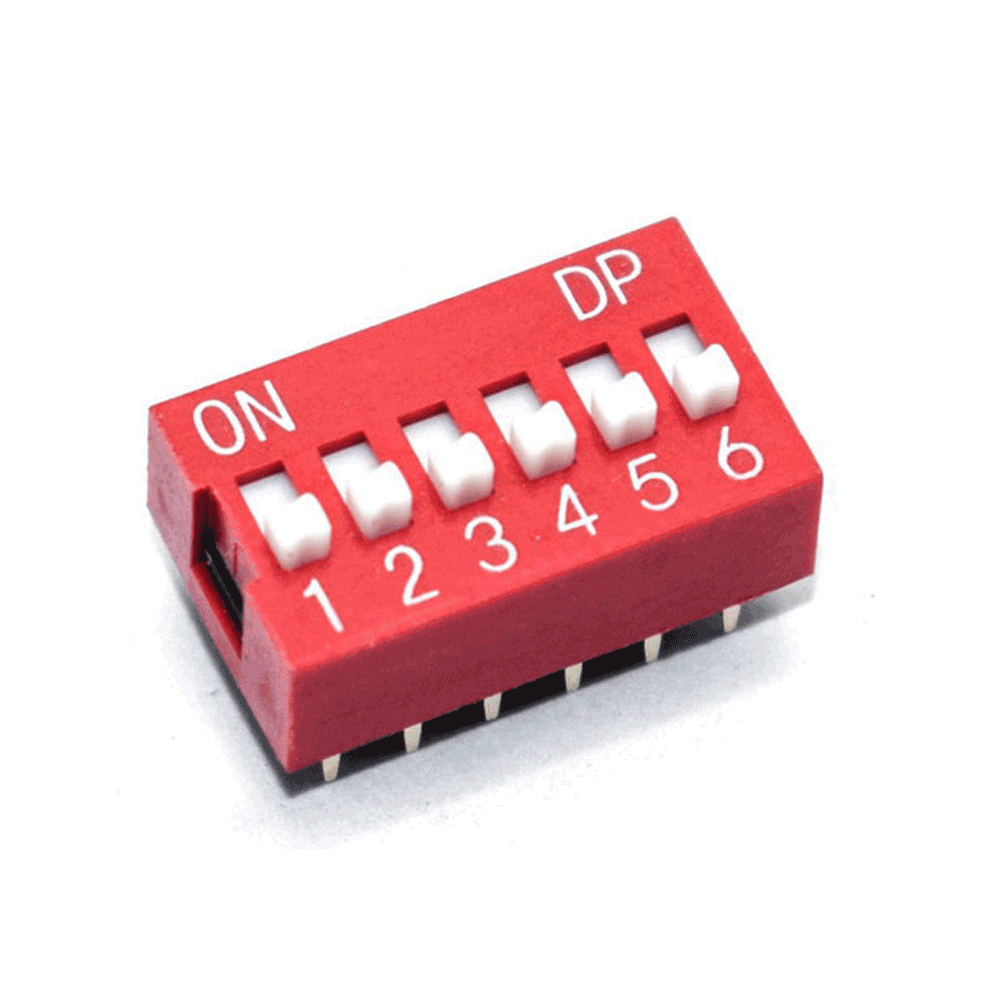

6 Way DIP Switch SPST - 2.54mm Pitch

Sold By: HatchnHackSKU: 2J09

Price:
Sale price₹ 18.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

A dual in-line package (DIP) switch is a manual electronic package that is composed of a series of tiny switches. It has a rectangular casing and two parallel rows of connecting terminals. whose position changes the operating mode of a device. DIP switches help configure computer peripherals, such as hard drives, modems, sound cards, and motherboards.

This 6 Way DIP SPST Switch is the simplest type of switch in which a single toggle either connects or disconnects a single terminal from other. This switch is designed to be conveniently mounted on printed circuit boards to provide various ranges of input to the electronic device.

Specification
Max. Operating Voltage 30V DC
Max. Operating Current 150mA
Contact Resistance <100mΩ
Operating Temperature -20°C to 80°C
Colour Red and White
Pitch 2.54mm
Mounting Type Through Hole
Number of Connecting Pins 12
Position 6
Dimension 16.7x9.8x7.0mm
