Description

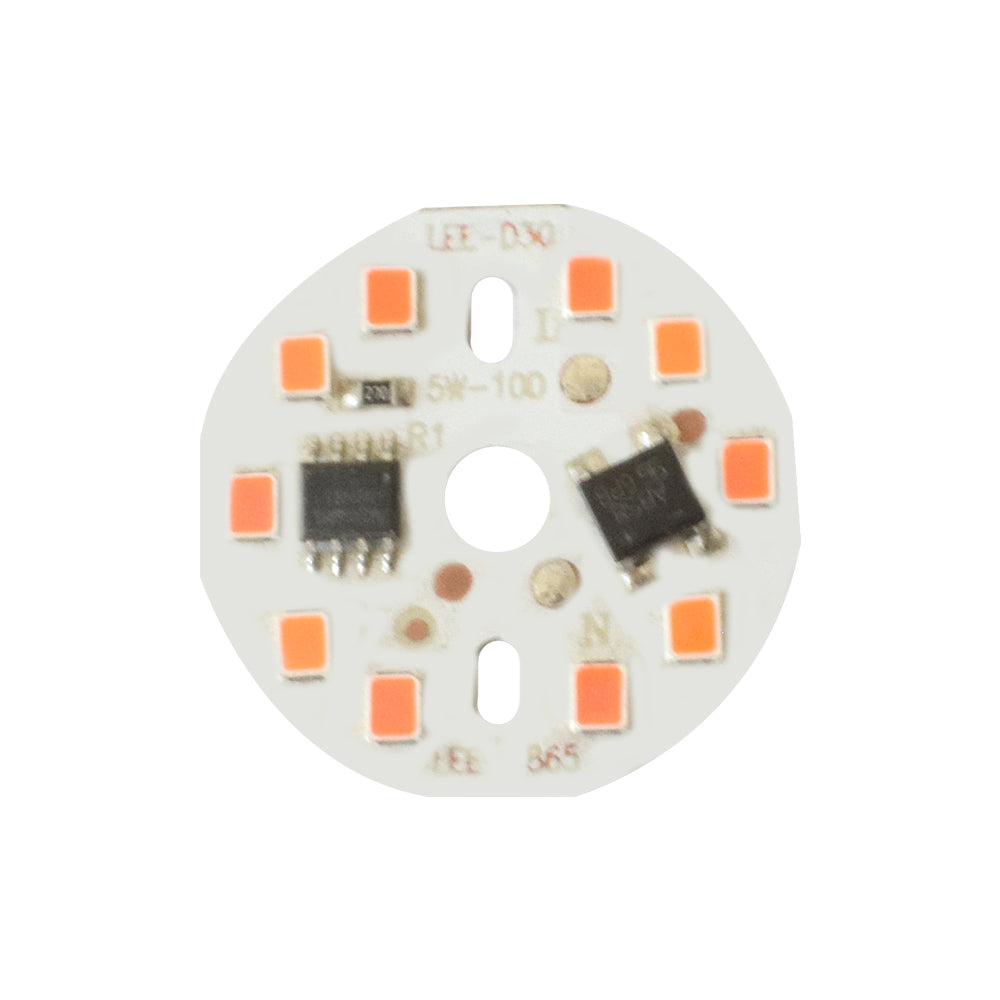

Its a 220V 5W COB/DOB LED PCB, which has two IC. One IC is a LED driver IC and the second IC is responsible for the rectification of the AC single-phase signal. FM3081S8HS is an eight-pi IC. It is a single-channel LED linear constant current drive control chip. An external resistor adjusts the output current. ABS86PB is a bridge rectifier used to rectify the signal; as we are already aware from the rectifier, a rectifier is used to convert the AC signal into a DC signal.
Applications:
- Its mainly used in decorative products
- It's used in home decor LEDs
- It's used in traffic LED
- Headlight
- Street lights
Features:
- Direct AC Source
- It has a total of 10 LED
- It does not need any external driver circuit
- It has an inbuilt driver IC
Specifications:
| Type | DOB LED PCB |
| Input Voltage | 220VAC |
| No of LEDs | 10 |
| Colour | Red |
| LED Diameter | 30mm |
| Power | 5W |
| Wire Mounting Diameter (Small hole) | 4.4mm |
| Mounting Diameter of (large Hole) | 5mm |
| Thickness | 2.1mm |
| Connection Point | Line and Neutral |
| No. of Connecting Point | 02 |
| Country of Origin | China |
