Description

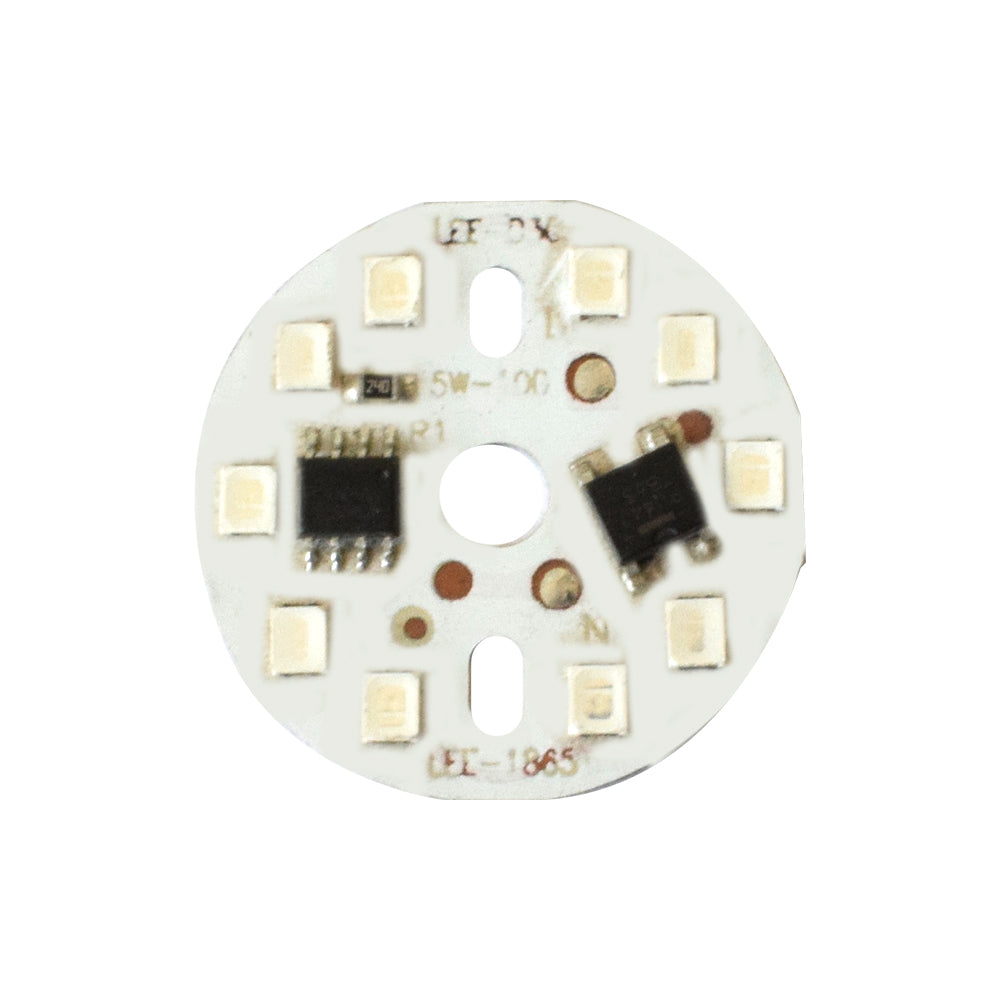

This is a 220V 5W COB/DOB LED PCB; this PCB has two main IC, which are used to drive the full LEDs and one another IC, known as a bridge rectifier. FM3081S8HS is an eight-pin IC. It's a driver IC. Its mainly used to drive colourful LEDs, and another one is PJ447TB6S, a rectifier used to rectify the AC input signal into DC Signal. This IC has four pins, and the polarity has marked on it. This PCB's operating voltage is 220V AC power supply, and the Power is 5W.
Applications:
- Its mainly used in decorative products
- It's used in home decor LEDs
- It's used in traffic LED
- Headlight
- Street lights
Features:
- Direct AC Source
- It has a total of 10 LED
- It does not need any external driver circuit
- It has an inbuilt driver IC
Specifications:
| Type | DOB LED PCB |
| Input Voltage | 220VAC |
| No of LEDs | 10 |
| Colour | Blue |
| LED Diameter | 30mm |
| Power | 5W |
| Wire Mounting Diameter (Small hole) | 4.4mm |
| Mounting Diameter of (large Hole) | 5mm |
| Thickness | 2.1mm |
| Connection Point | Line and Neutral |
| No. of Connecting Point | 02 |
| Country of Origin | China |
