Description

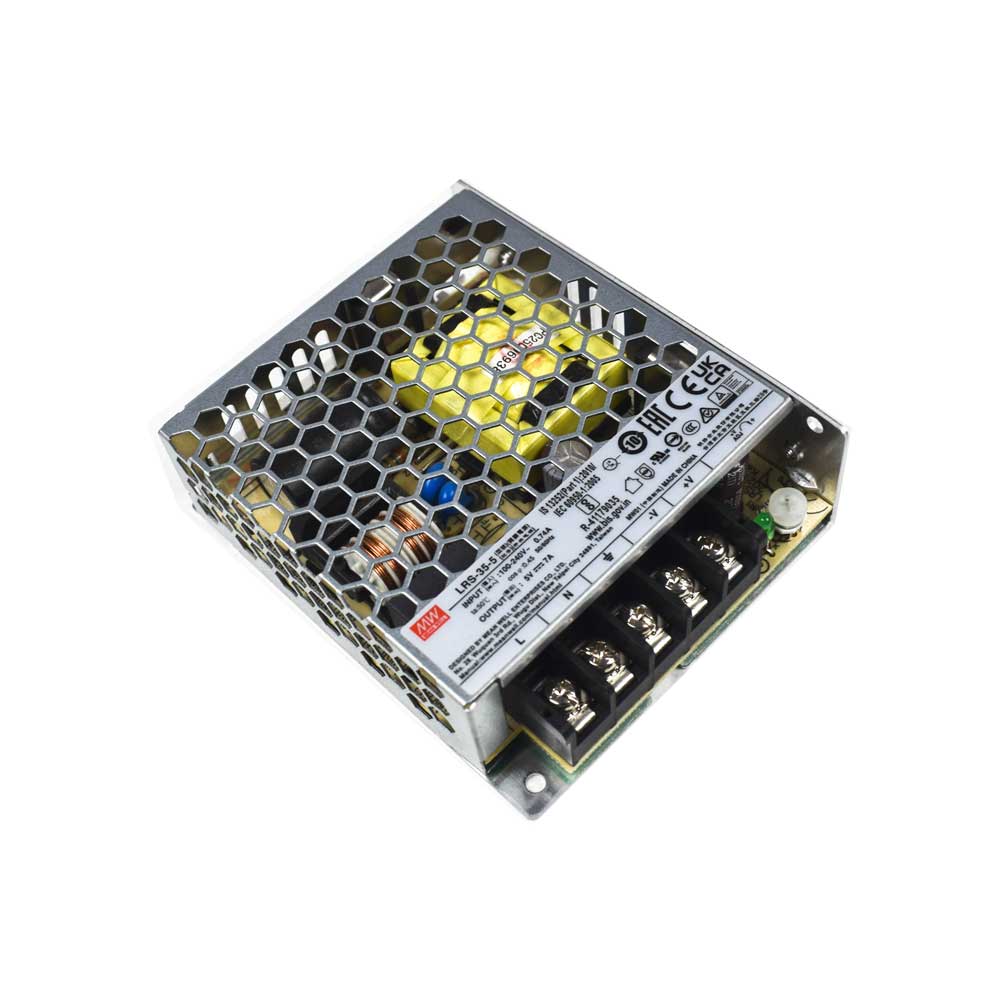

Meanwell's LRS-35-5 series is a 35W single-output switching power supply. The AC input is 100~240V AC which could be directly supplied from the house-supplied voltage. The output from SMPS will be 5V. The SMPS has high efficiency of up to 87.5%, the design is of metallic mesh case which enhances the heat dissipation of  LRS-35-5 and the whole series operates from -30°C through 70°C under air convection without a fan. Meanwell's 5V 35W LRS-35-5 has complete protection functions; it complies with international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-150 series can be used for many purposes with the best performance from it.
Pinout:
| Pin No. | Pin name | Description |
|  1, 2 | AC/L&N | Supplied AC Voltage (100 ~ 240VAC) |
|  3 | G | GND |
|  4 | V- | DC OUTPUT -V |
|  5 | V+ | DC OUTPUT +V (5V) |

Features
- Universal AC Input Range
- Operating Temperature Upto 70 Degrees C
- Protections: Short Circuit/ Overload/ Over Voltage
- LED Indicator on Power On
- High efficiency, long life, high reliability
Applications
- Industrial Automation Machinery
- Electronics Instrument & Equipment
- Household Appliances
Specifications
| Input Voltage | 100V~240V AC |
| Output Voltage | 5V DC |
| Maximum Output Current | 7A |
| Rated Power | 35W |
| Efficiency | 82% |
| Operating Temperature | -30°C to 70°C |
| Voltage Adj Range | 4.5-5.5V |
| Noise and Ripple (Max) | 80mvp-p |
| Size | 99x82x30mm |
| Country of Origin | China |
