Description

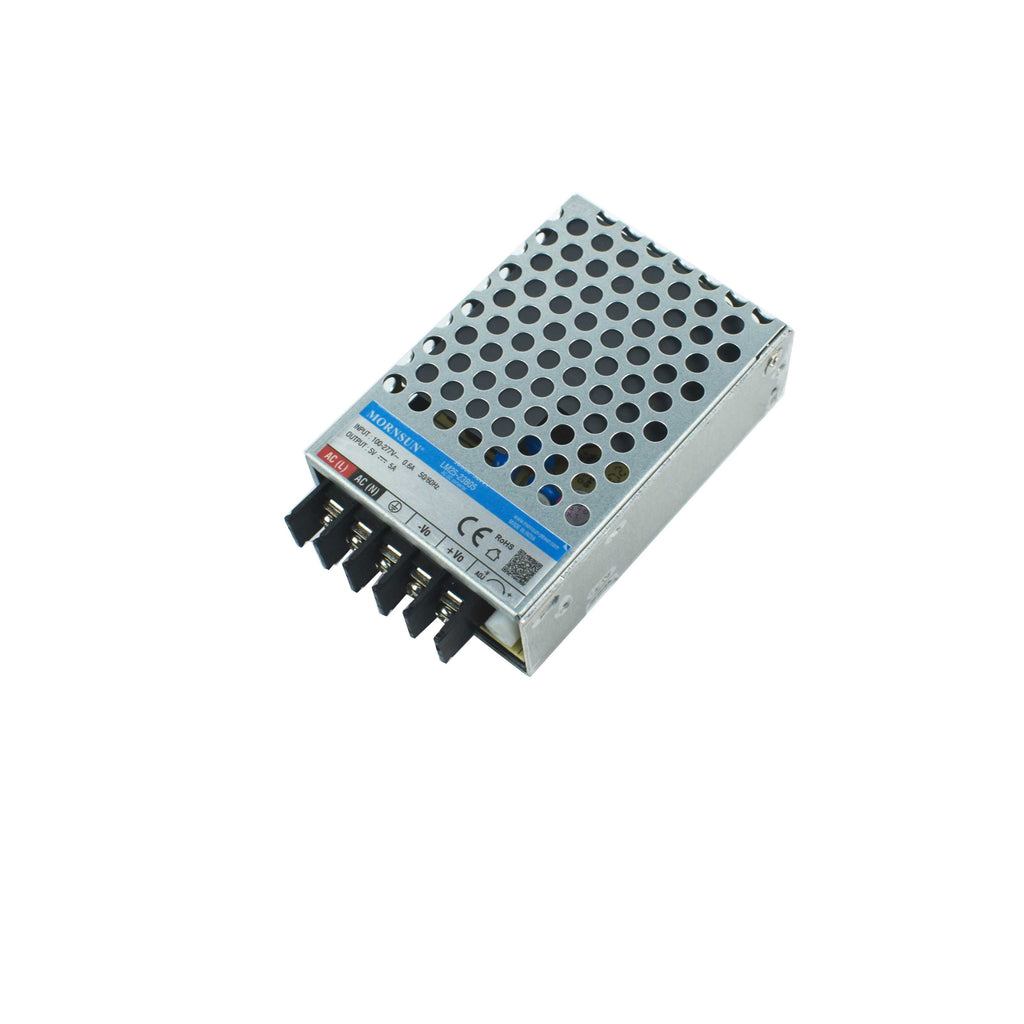

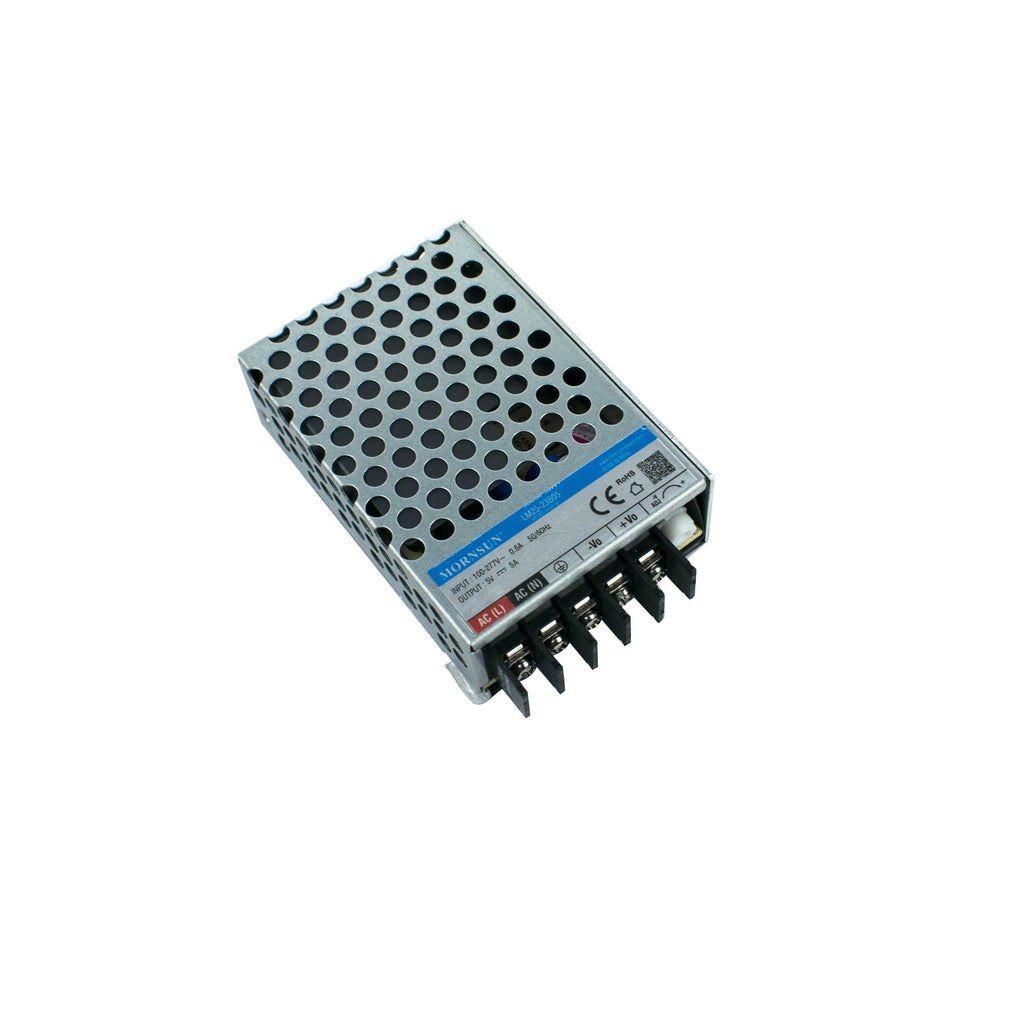

LM25-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supplies. It has a universal AC input that also supports DC input voltage, is economical, uses little power when not in use, and is extremely reliable, and efficient. The IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943, and other standards are met by these converters, which have good EMC performance and are widely used in industrial, LED, street light control, power, security, telecommunications, smart home, etc. applications.
Features :-
Features :-
- 85 - 305V(AC) or 100 - 430 V(DC) input voltage
- Accepts AC or DC input (dual-use of the same terminal)
- Operating ambient temperature range: -30℃to+70℃
- Up to 88% efficiency
- No-load power consumption < 0.5W
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ(designed to meet EN61558)
- Operating altitude up to 5000m
Specifications
| Model | LM25-23B05 |
| Brand | Mornsun |
| Output Power | 25W |
| Nominal Output Voltage and Current | 5V / 5A |
| Output Voltage Adjustable Range | 4.5 V - 5.5 V |
| Efficiency at 230V(AC) Typ. | 81 % |
| Max. Capacitive Load | 4000uF |
| Input Voltage Range | AC input 85 V – 305 V |
| DC input 100 V – 430 V | |
| Input Current | 115 V(AC) 0.6 A |
| 230 V(AC) 0.34 A | |
| Country of Origin | China |
