Description

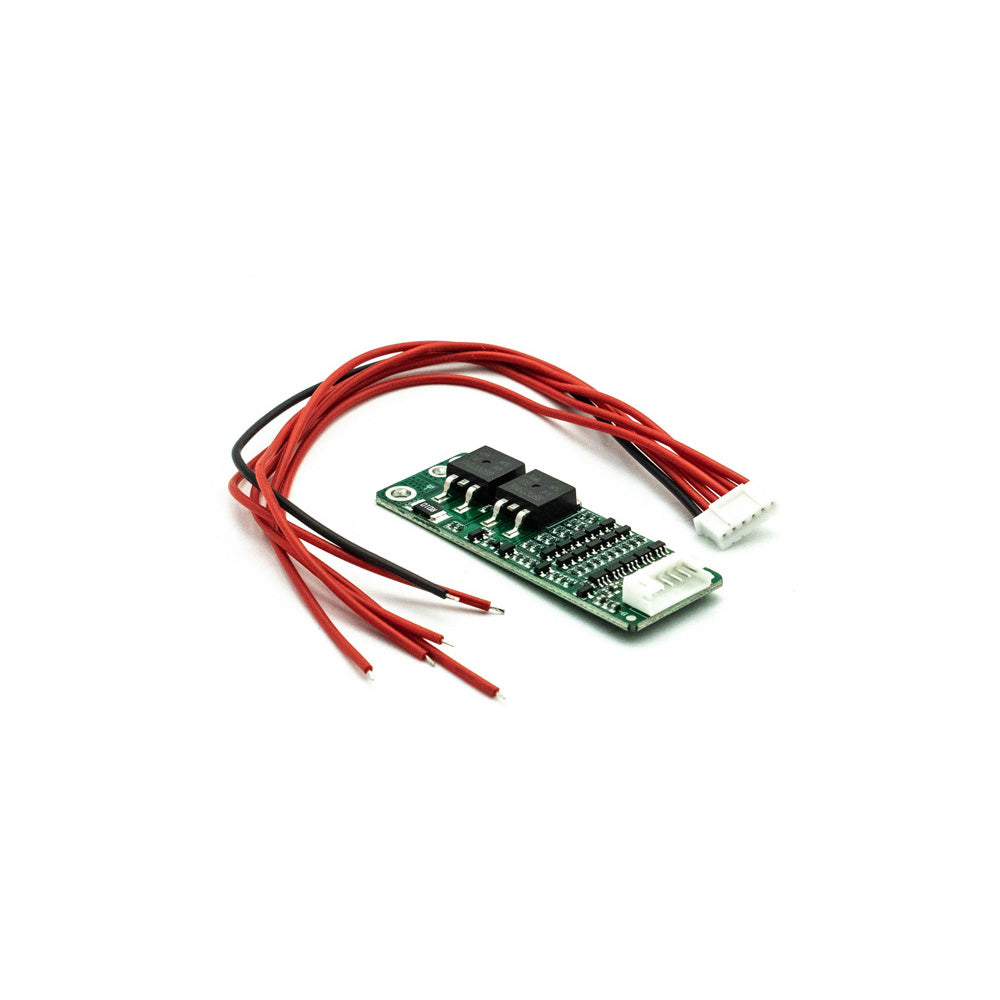

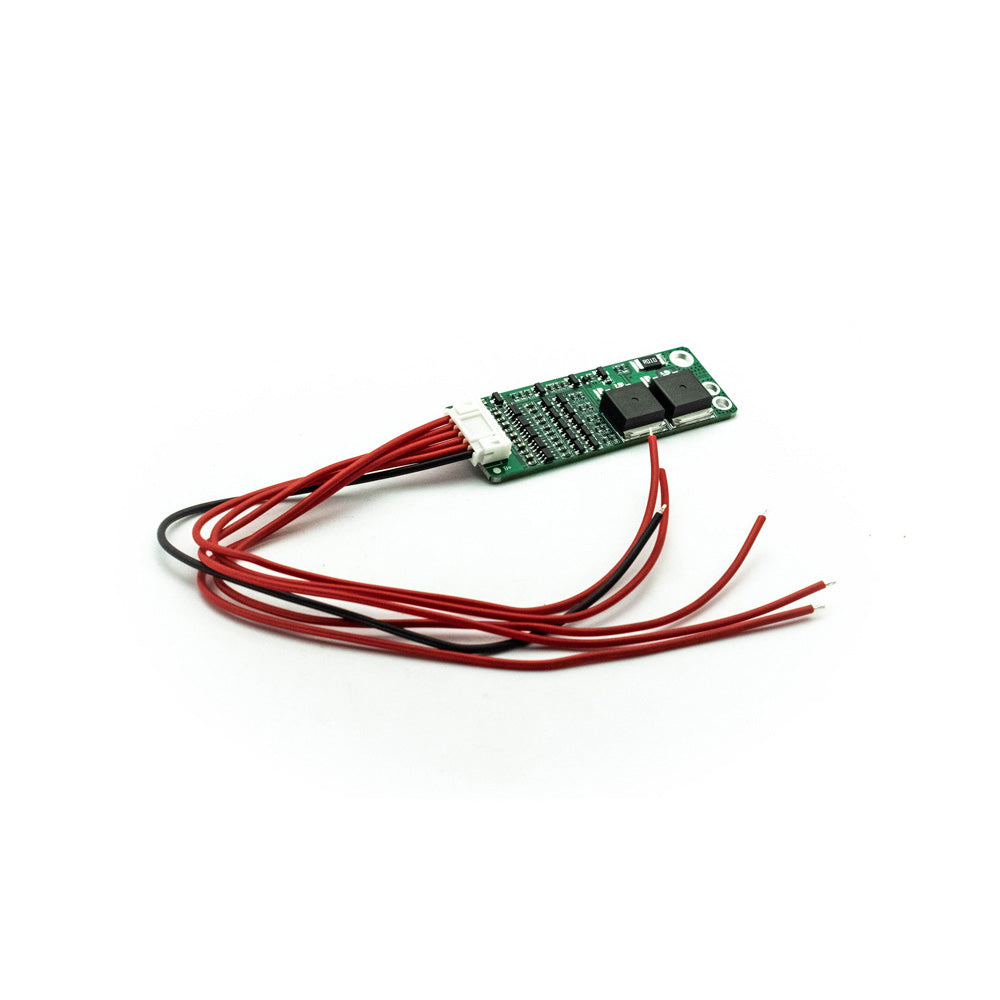

5S 18.5V 15A Li-ion Battery Protection Board is used for Overcharge protection, over-discharge protection function, short circuit protection function and over current protection function.
Features
- Power consumption between single section: 3 A
- Single section over charging sensing voltage: 4.18- / 4.22V
- Over-charging recovery voltage: 4.05-4.15V
- Overcharge detection delay: 0.5 / 1.0 / 2.0S
- Single section discharge detection voltage: 2.75-2.85V
- Over-discharge recovery voltage: 2.90-3.20V
- Discharge detection delay: 0.5-2.0S
Specification
| Charging Voltage | 21 V |
| Charging MOS Pressure Value | 35V |
| Discharge MOS Pressure Value | 35V |
| Charging Current | 56A |
| Continuous Discharge Current | 15A |
| Over Current Protection | 50 A |
| Over Current Protection Delay | 25ms |
| Country of Origin | China |
