Description

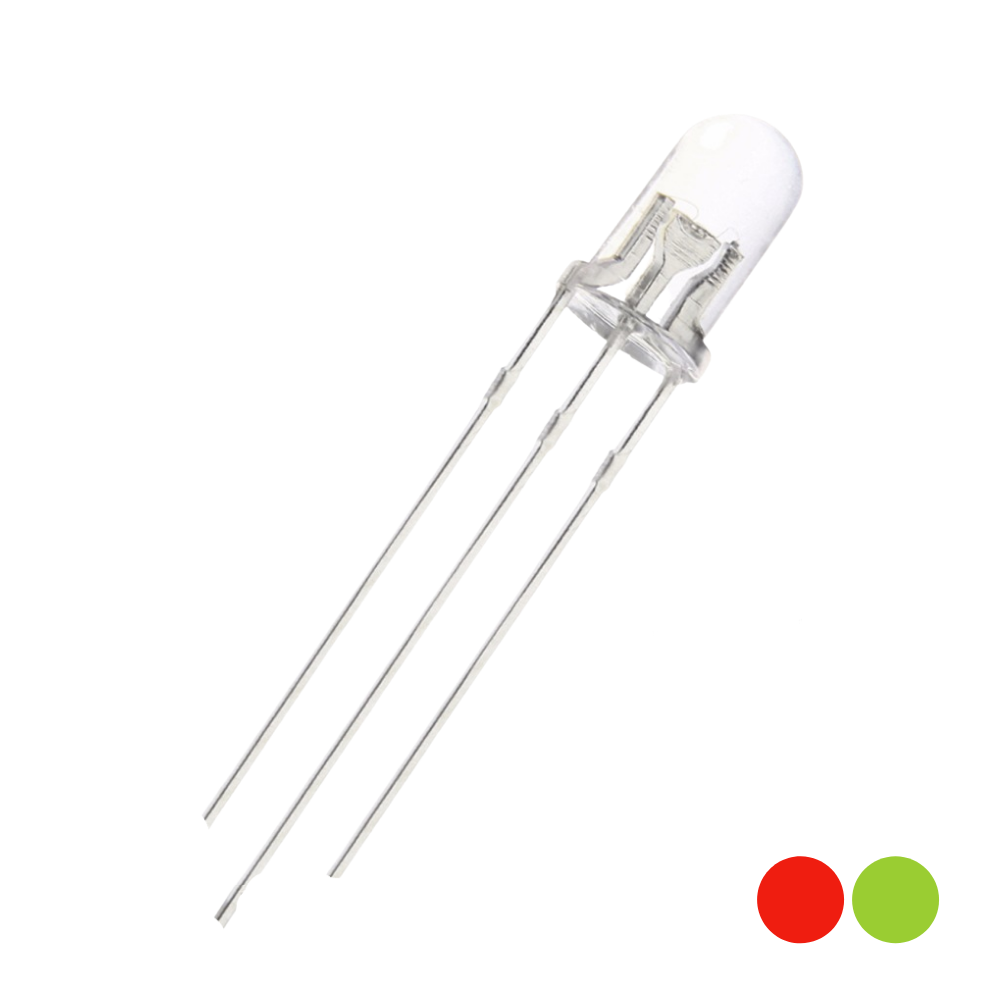

A small Red and Yellow Green bi-colour 5mm light-emitting diode with a common cathode that produces consistent light and consumes little power, contained in a clear lens packaging. It is suitable for PCB or panel mounting.
In a shared cathode design, diodes are linked. The common cathode is the center leg, and it is the place where a resistor should be installed for the protection of the LED.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
The positive terminal of Red LED(the big pin of the LED ) |
|
Cathode |
A common negative terminal of LED(biggest pin of the LED) |
|
Anode |
The positive terminal of Yellow Green LED(smallest pin of the LED ) |
Specifications
| Colour | Red/Yellow-Green |
| Forward Voltage | 1.8~2.0V |
| Forward Current | 20mA |
| Brightness | 620-625 |
| Color Temperature | 520-525 |
| Mounting Type | Through Hole |
| Lens | Clear |
| No. of Pins | 3 |
| Diameter | 5mm |
| Country of Origin | China |
