Description

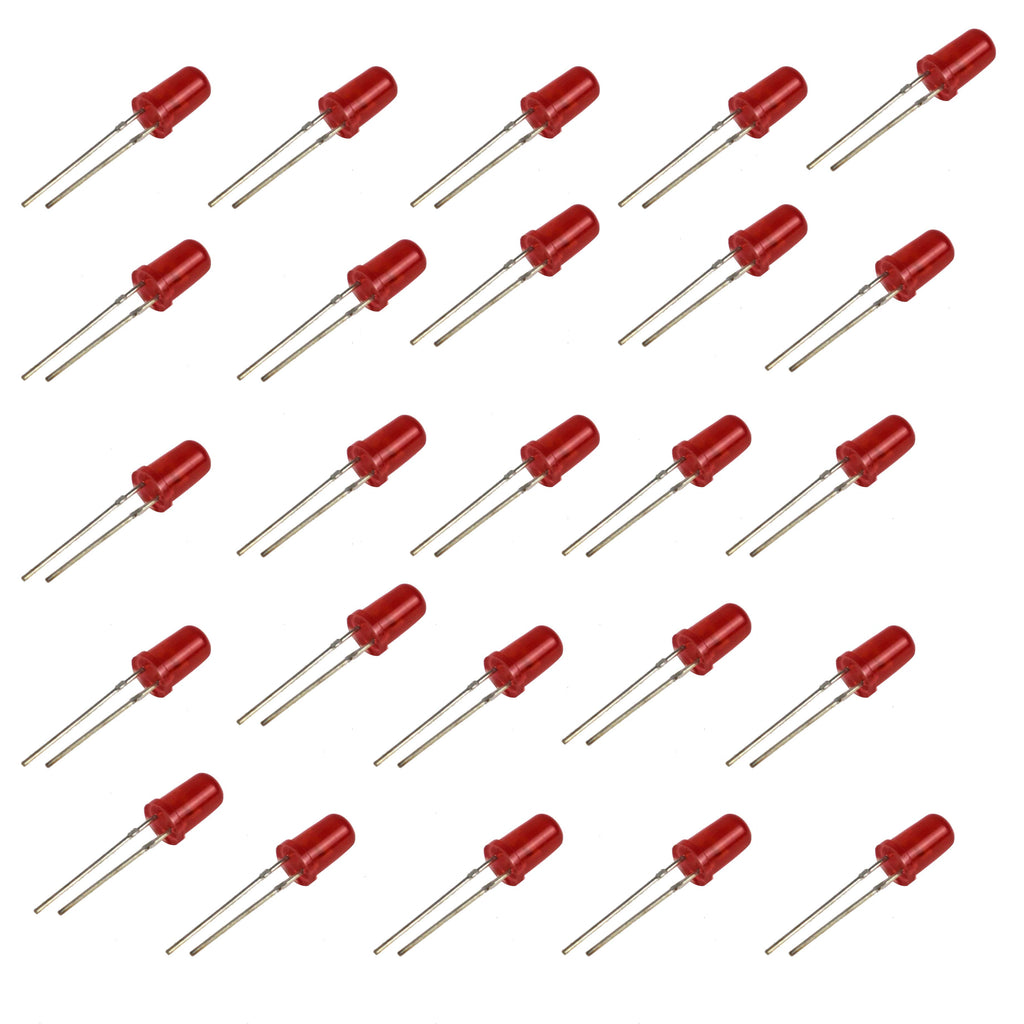

It is a general-purpose 5mm Round Red colour LED, Its Forward voltage is 1.8 to 2.4V and it is a Through Hole LED. These LEDs are used for general-purpose in electronic circuits, modules, devices, indicator lights, and many other devices. These LEDs have two terminals Anode(+) and Cathode(-). It is a low power consumption with a wide viewing angle Ideal for backlight and Power indicators. The most common application of these LEDs is as power Off, power Fail indicator lights, pin status, etc.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
Positive terminal of LED(the big leg of the LED ) |
|
Cathode |
Negative terminal of LED(the small leg of the LED) |
Specifications
| Brand | NSEE |
| Product | 5mm Round Red LED |
| Wavelength | 620-625 nm |
| LED Colour | Red |
| Lens Colour | Red |
| Forward Voltage | 1.8 - 2.4V |
| LED Type | Through Hole |
| Application | General lighting, Power Indication Purpose |
| Diameter | 5mm |
| No. of Pins | 02 |
| MCD | 300-500 mcd |
| Quantity | 1Pcs |
| Country of Origin | China |
