Description

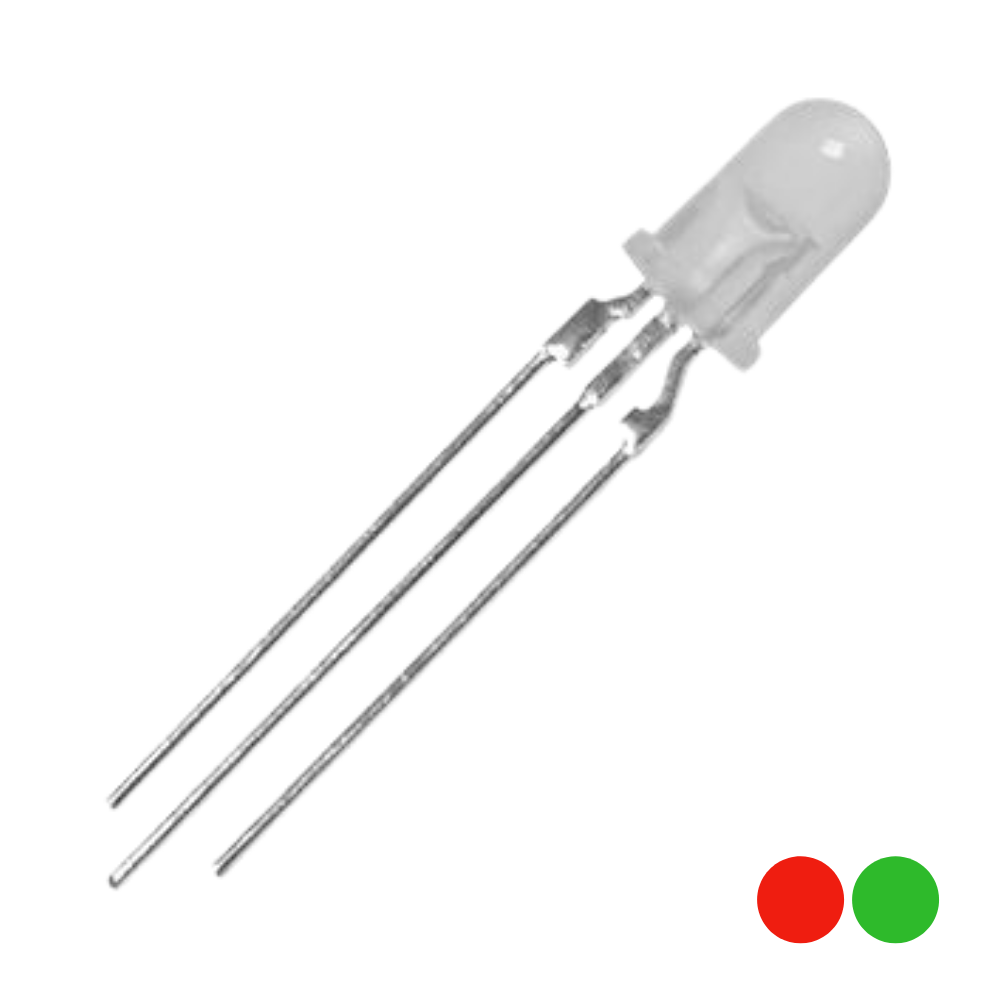

A small Red and Green bi-color 5mm light-emitting diode with a common cathode that produces consistent light and consumes little power, contained in a milky white packaging. It is suitable for PCB or panel mounting. In a shared cathode design, diodes are linked. The common cathode is the centre leg, and it is the place where a resistor should be installed for the protection of the LED.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
The positive terminal of Red LED(the big pin of the LED ) |
|
Cathode |
A common negative terminal of LED(biggest pin of the LED) |
|
Anode |
The positive terminal of Green LED(smallest pin of the LED ) |
Specifications
|
Colour |
Red-Green |
|
Forward Voltage |
1.8~2.6V |
|
Forward Current |
30mA |
|
Mounting Type |
Through Hole |
|
Lens Colour |
White Diffused |
|
No. of Pins |
3 |
|
Diameter |
5mm |
| Country of Origin | China |
