Description

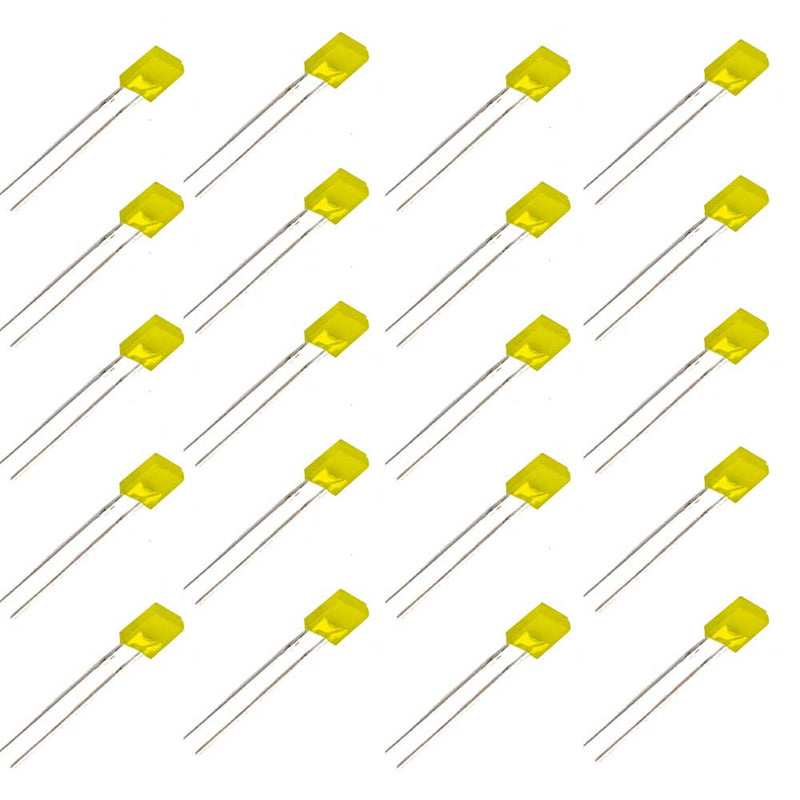

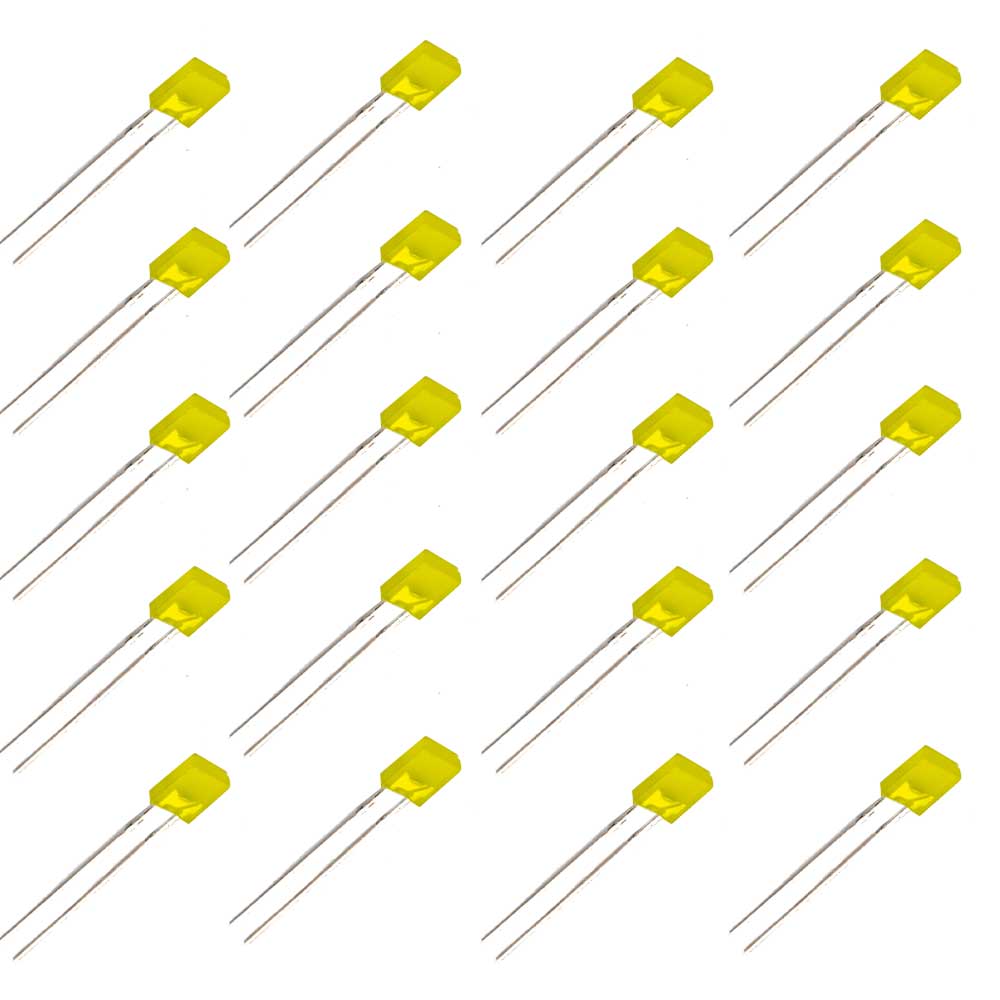

It is a common LED and is used in a wide range of electronic projects. This Light Emitting Diode has a 5mm width and length of 7mm with a 2 pin terminal. When turned on, it will emit a bright Yellow colour light. This LED can be used in status indicators, diagnostic or analytical devices, breadboard projects, etc.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
Positive terminal of LED(the big leg of the LED ) |
|
Cathode |
Negative terminal of LED(the small leg of the LED) |
Specifications
|
Forward Voltage |
2.0-3V |
|
Max DC Forward Current |
30mA |
|
Reverse Voltage |
5V |
|
Colour |
Yellow |
|
Shape |
Rectangular |
|
Dimensions |
7x4.8x2.0mm |
| Country of Origin | China |
