Description

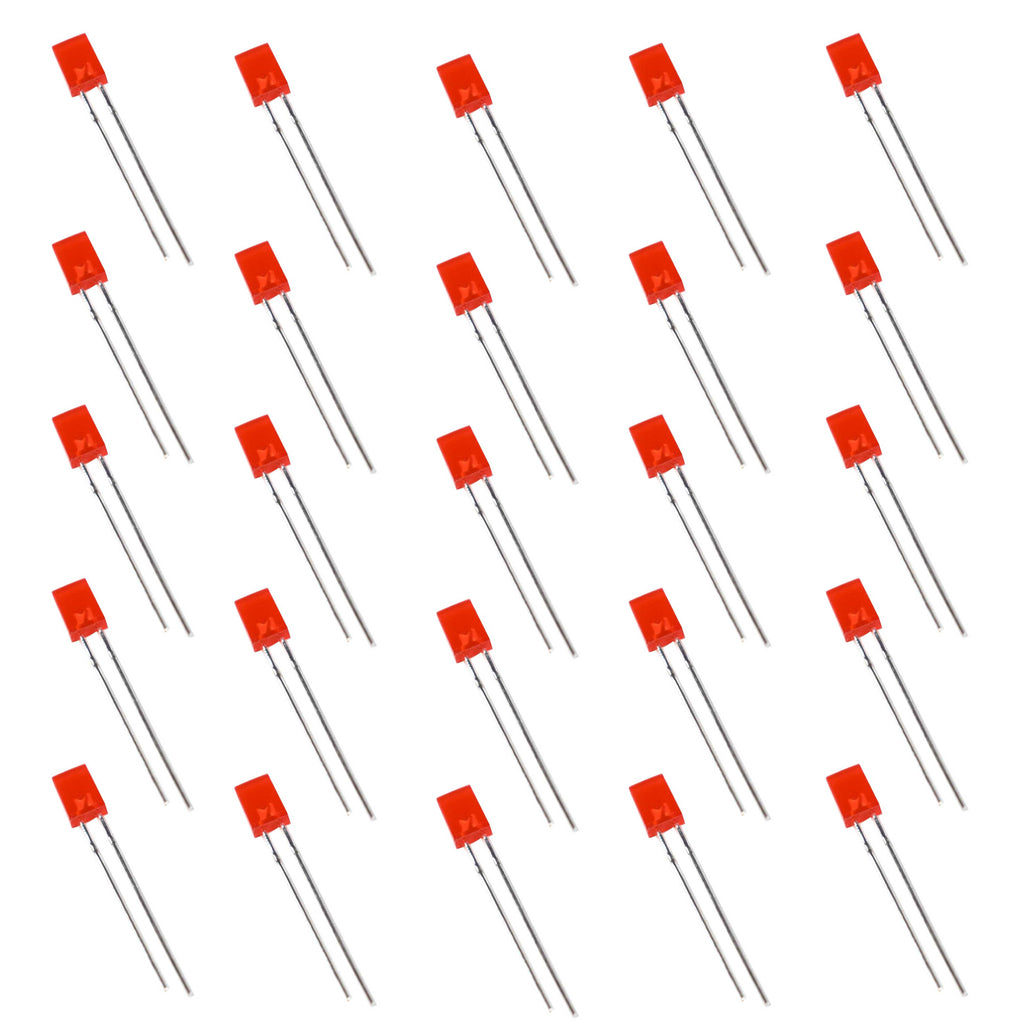

It is a general-purpose 5mm Flat Rectangle Diffused Red Colour LED, Its Forward voltage is 2.5 to 2.8V and it is a Through Hole LED. These LEDs are used for general-purpose in electronic circuits, modules, devices, indicator lights, and many other devices. These LEDs have two terminals Anode(+) and Cathode(-). It is a low power consumption with a wide viewing angle Ideal for backlight and indicator.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
Positive terminal of LED(the big leg of the LED ) |
|
Cathode |
Negative terminal of LED(the small leg of the LED) |
Specifications
| Brand | A.P.S |
| Product | Flat Rectangle Red LED |
| LED Colour | Red |
| Lens Colour | Red |
| Forward Voltage | 2.5-2.8V |
| LED Type | Through Hole |
| Application | General lighting, Indication Purpose |
| Size | 5mm |
| No. of Pins | 02 |
| Country of Origin | China |
