Description

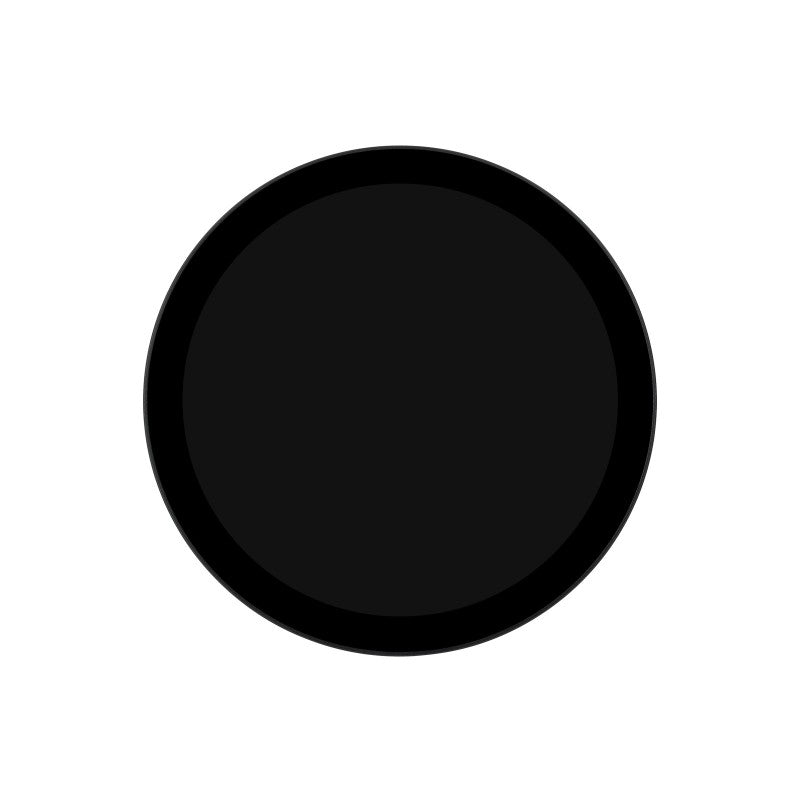

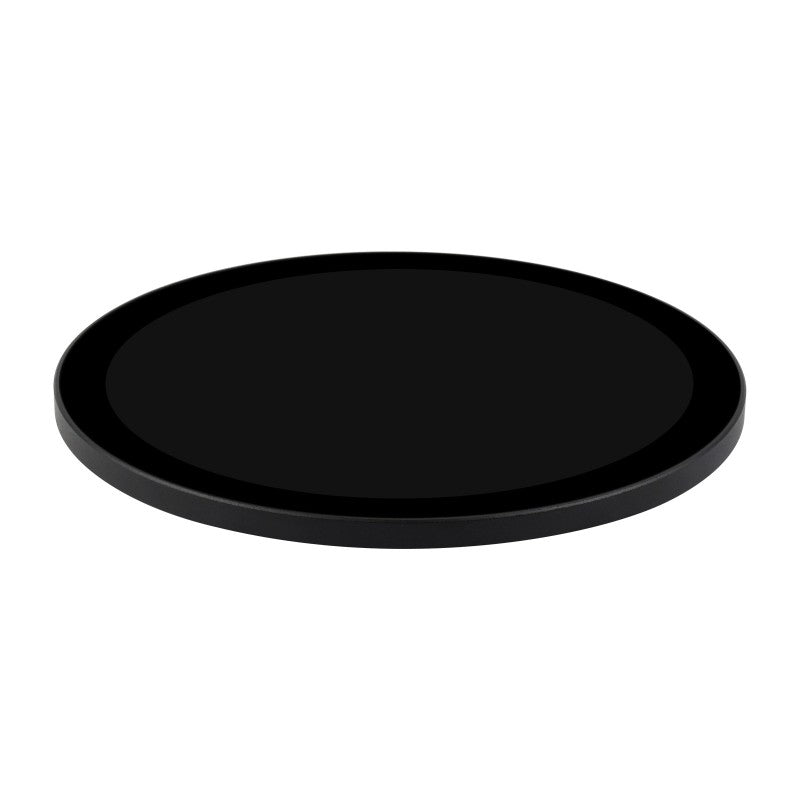

5″ Round Touch Display
High Resolution | Multi-Touch | Full Color
Size
5″ |
Resolution
1080×1080 |
Display Interface
HDMI |
Display Panel
IPS |
Viewing Angle
160° |
Touch Type
Capacitive |
Touch Points
10-Point |
Touch Interface
USB Type-C |
Touch Panel
Toughened Glass |
Touch Panel Tech
Optical Bonding |
Audio Output1
3.5mm Jack |
Audio Output2
4PIN Header |
Device & System Support
 |
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free Jetson NanoSupports Ubuntu, single point touch, driver free PCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free |
Connection Examples
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero 2 W
**You need to prepare additional mini HDMI adapter and USB cable
Working With Jetson Nano
Working With Mini PC
**for reference only, the Raspberry Pi boards are not included.

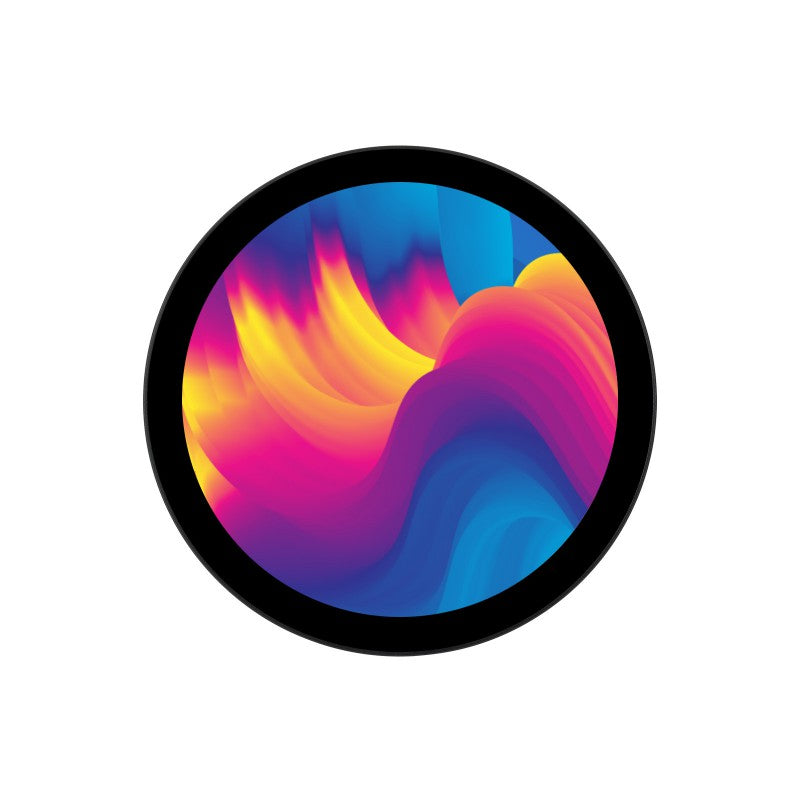

IPS Display Panel
Excellent Display Performance With 160° Wide Viewing Angle
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dust-proof

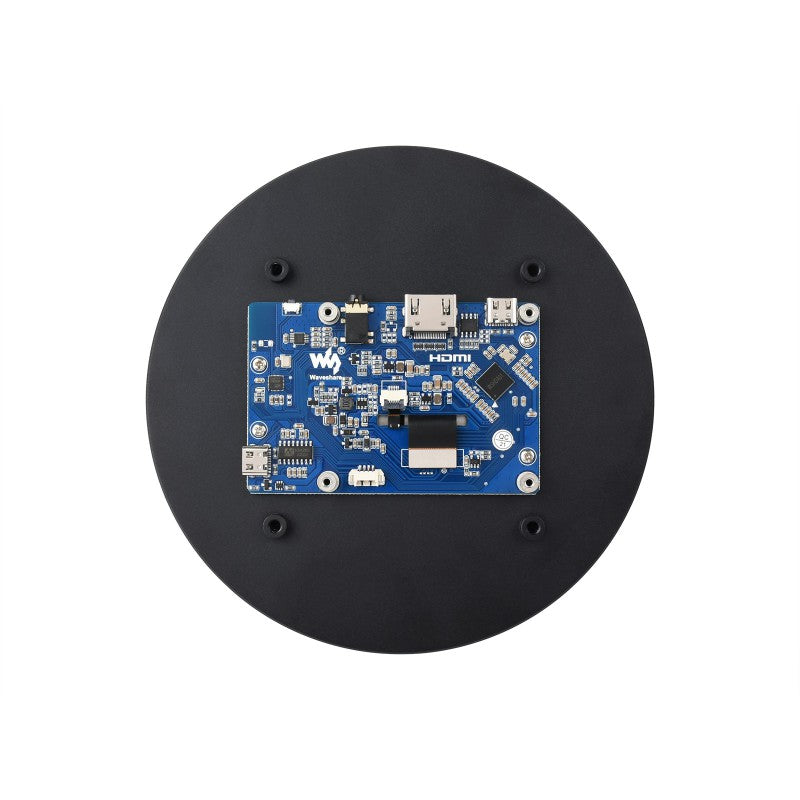

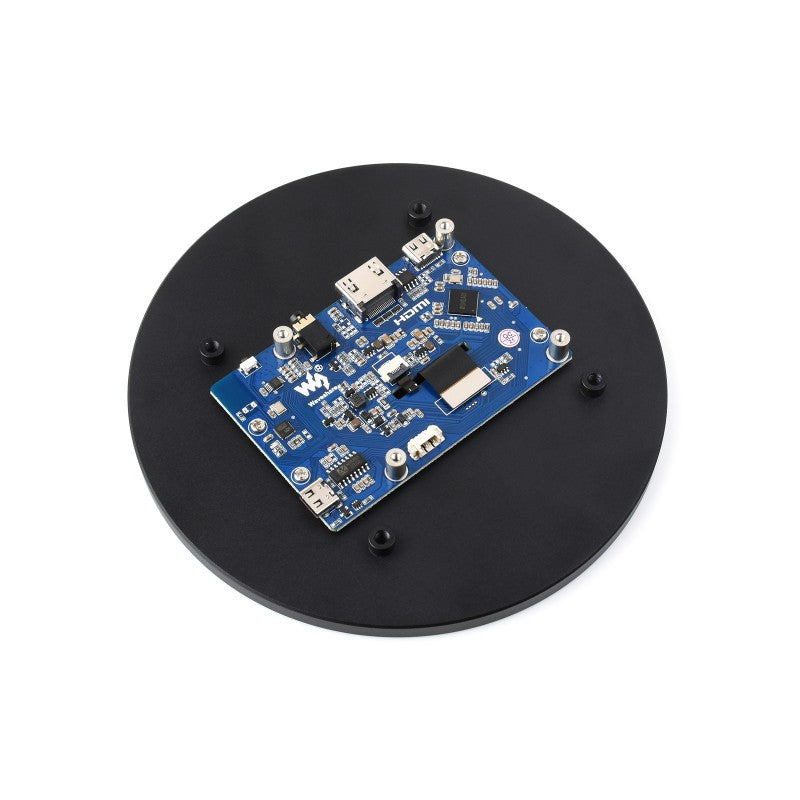

Interface
Application Examples
Smart Home |
In-vehicle Devices |
Consumer Electronics |
Industrial Equipments |
Dimensions
Resources
Wiki: www.waveshare.com/wiki/5inch_1080x1080_LCDPackage Contents:
- 5inch 1080x1080 LCD ×1
- HDMI flat cable ~1m ×1
- USB-A to USB-C cable ~1m ×1
- USB to Type-C adapter (B) ×1
- USB to Type-C adapter (C) ×1
- HDMI to Micro HDMI adapter ×1
- HDMI adapter ×1
- Screwspack ×1
