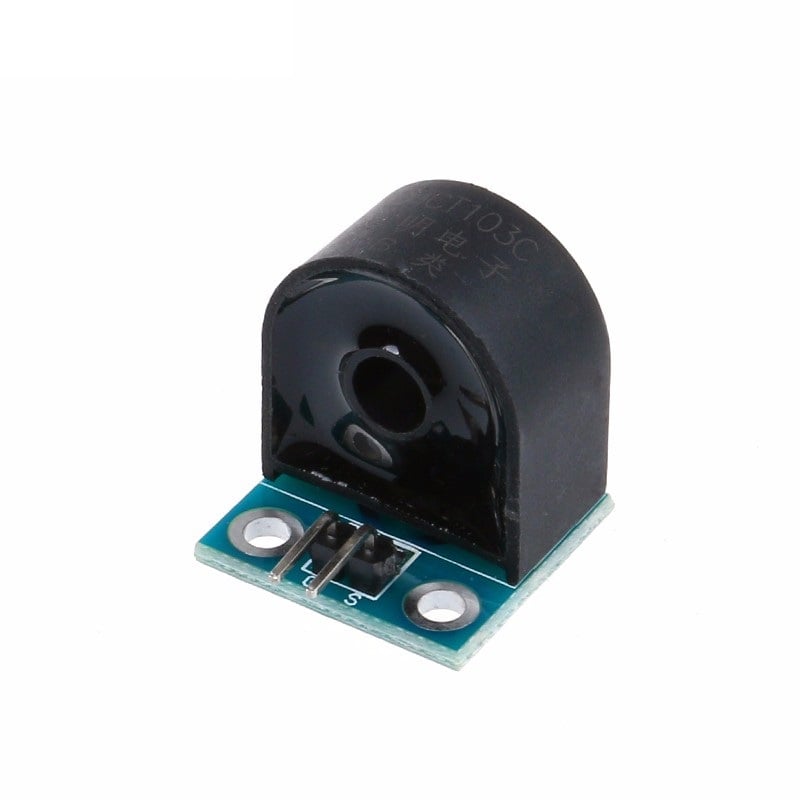

Description
- Onboard precision microcurrent transformer.
- Onboard sampling resistor.
- The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA.
- Rated input current: 5A
- Rated output current: 5mA
- Change: 1000: 1
- The linear range: 0 ~ 10A (100 ohms)
- Linearity: 0.2%
| Rated Input Current (A) |
5 |
|---|---|
| Rated Output Current (mA) |
5 |
| The linear range |
0 ~ 10A (100 ohms) |
| Change |
1000: 1 |
| Linearity |
0.2% |
| Precision Rating |
0.2 |
| Sealing material |
Epoxy Resin |
| Operating Temperature (°C): |
-40 to 90 |
| Length (mm): |
18 |
| Width (mm): |
19 |
| Height (mm): |
22 |
| Weight (g): |
8 |
| Shipping Weight | 0.012 kg |
| Shipping Dimensions | 3 × 3 × 3 cm |
