Description

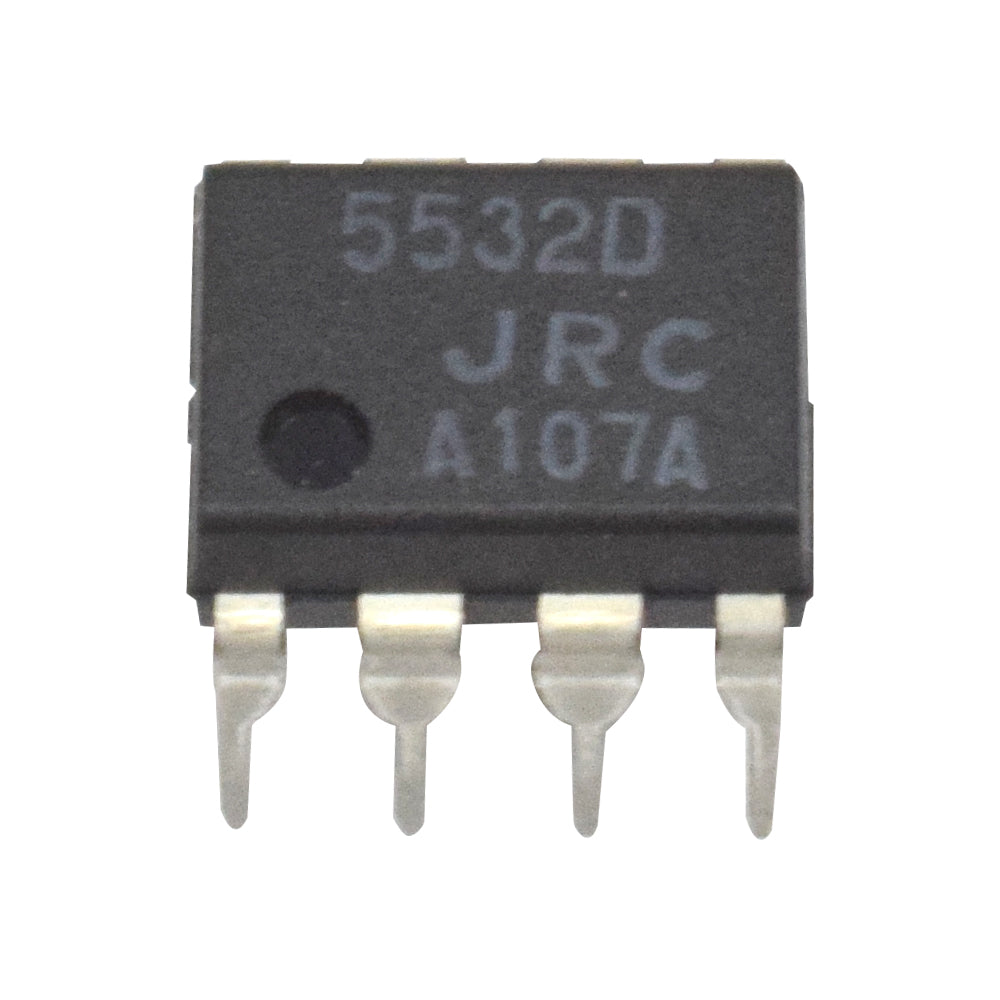

5532D is a type of operational amplifier. As we already know that an operational amplifier is an integrated circuit that can amplify weak electric signals. An operational amplifier has two input pins and one output pin. Its basic role is to amplify and output the voltage difference between the two input pins. This IC is used for audio application it has 8 pins. this IC comes in SOP and DIP packages both. Its maximum operating voltage is 30V. Its used in AV receiver, Net book, Video broadcasting, Multichannel video transcoder, pro audio mixers Etc.
Features
- DIP8/SO8 Packages
- Its unity gain bandwidth is 10MHz
- Its peak to peak output voltage is 26V
- Its common mode rejection ratio is 100DB
- It has 8 pins
Specifications
| Model | 5532D |
| Type | Operational amplifier |
| Package | SA5532A |
| Package Style | SMD |
| Maximum operating voltage | 30V |
| Electrostatic discharge | 2000V |
| Supply Voltage | 15V |
| Overshoot Factor | 10% |
| Country of Origin | China |
