Description

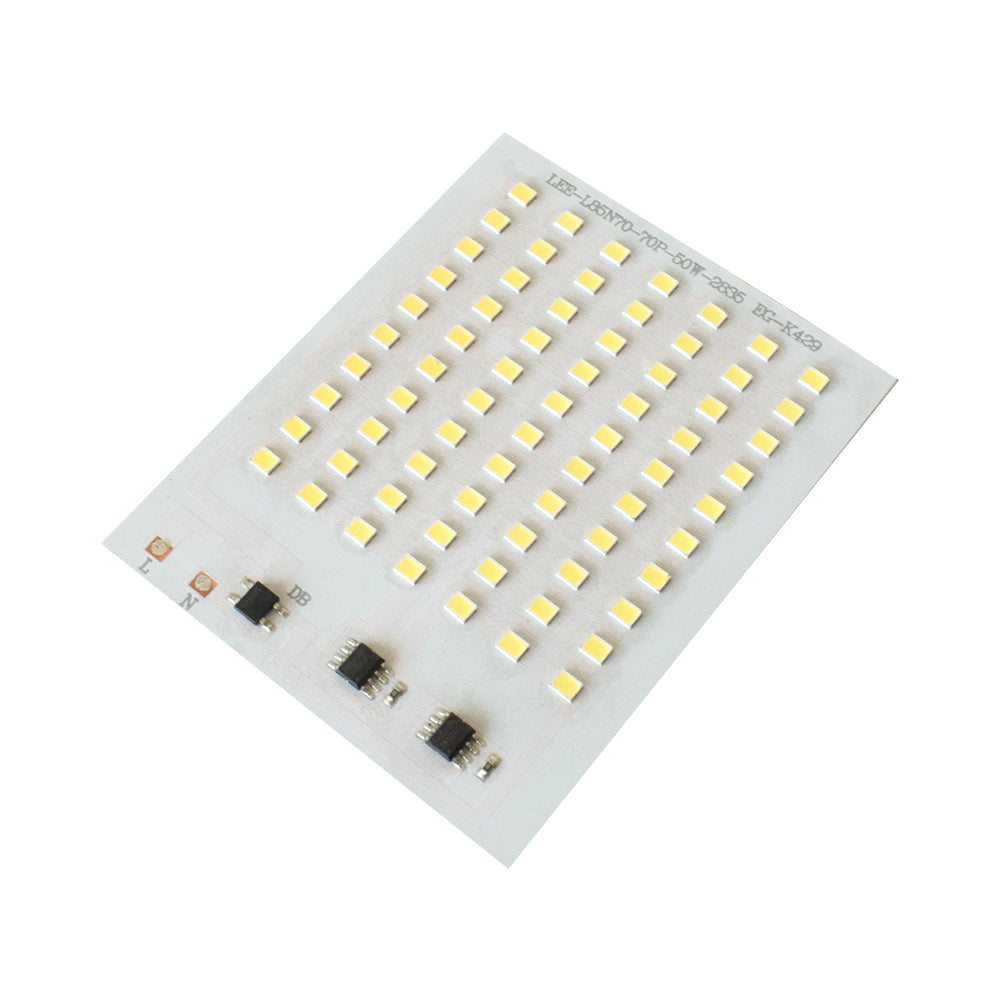

Its a DOB LED PCB board its power is 50W; it has one IC MB10F, is a bridge rectifier IC it has a total of four pins polarity has marked on it as a rectifier used to rectify the signal; it's used to rectify AC signal to DC signal. Single phase AC power supply is used here as an input signal. It has two another IC. The FM3081S8HS is an integrated 500V MOSFET, single segment linear LED driver. The magnitude of the output peak current is set by an external sampling resistor, and the patent-protected current control technology ensures precise current control accuracy. The system topology is simple, the number of peripheral devices is small, and the system cost is low. The FM3081S8HS has built-in over-temperature protection function
Applications:
- Its mainly used in decorative products
- It's used in home décor LEDs
- Headlight
- Street lights
Features:
- Direct AC Source
- It has a total of 70 LED
- It does not need any external driver circuit
- It has an inbuilt driver IC
Specifications:
| Model | L85N70 |
| Type | DOB LED PCB |
| Input Voltage | 220VAC |
| No of LEDs | 70 |
| Colour | White |
| Dimensions | 86mmx70mmx2.5mm |
| Power | 50W |
| Country of Origin | China |
