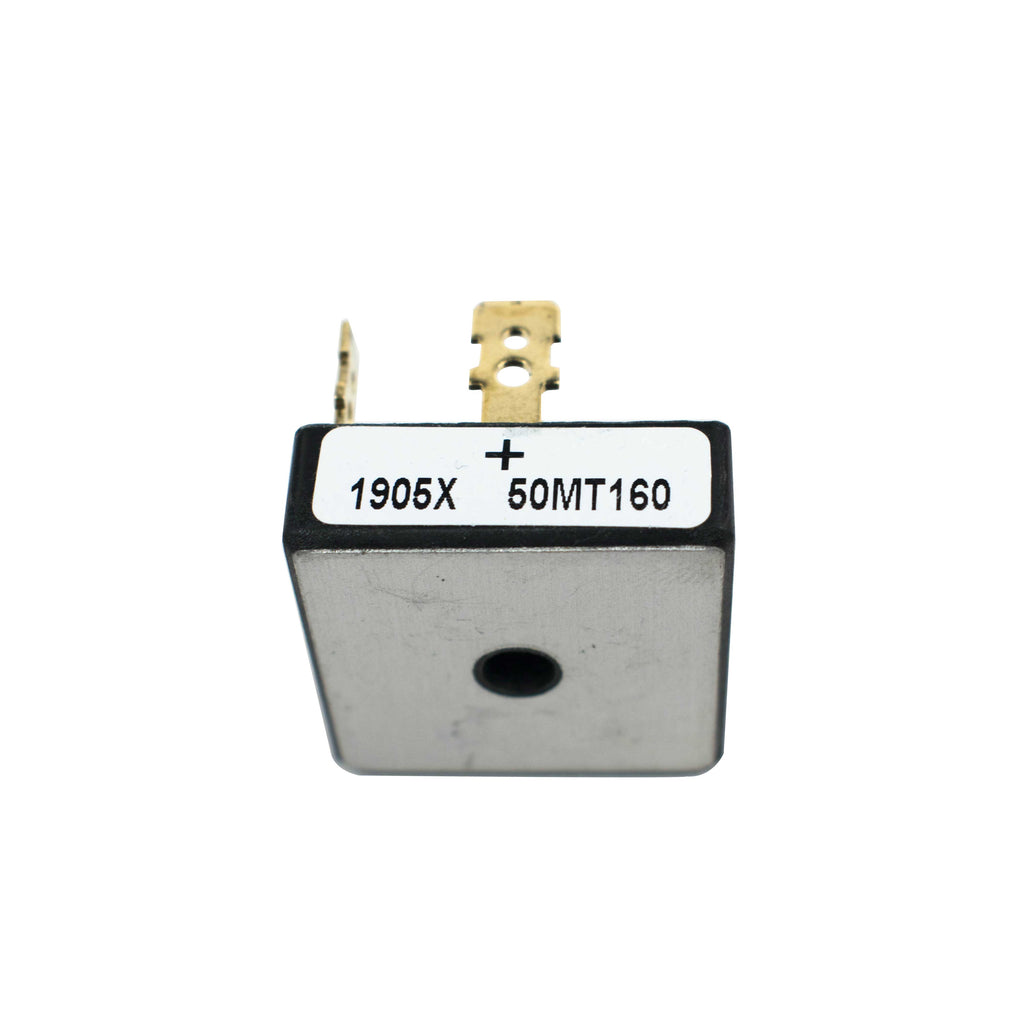

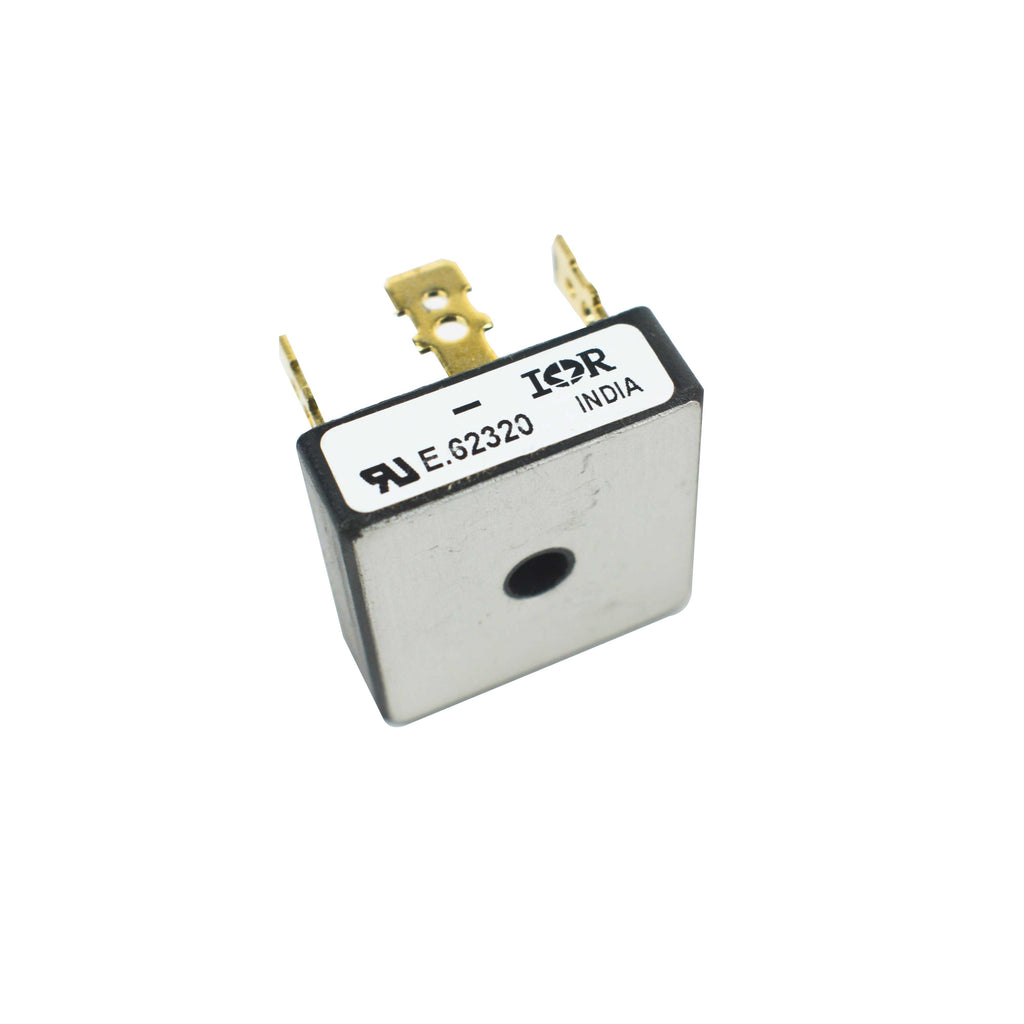

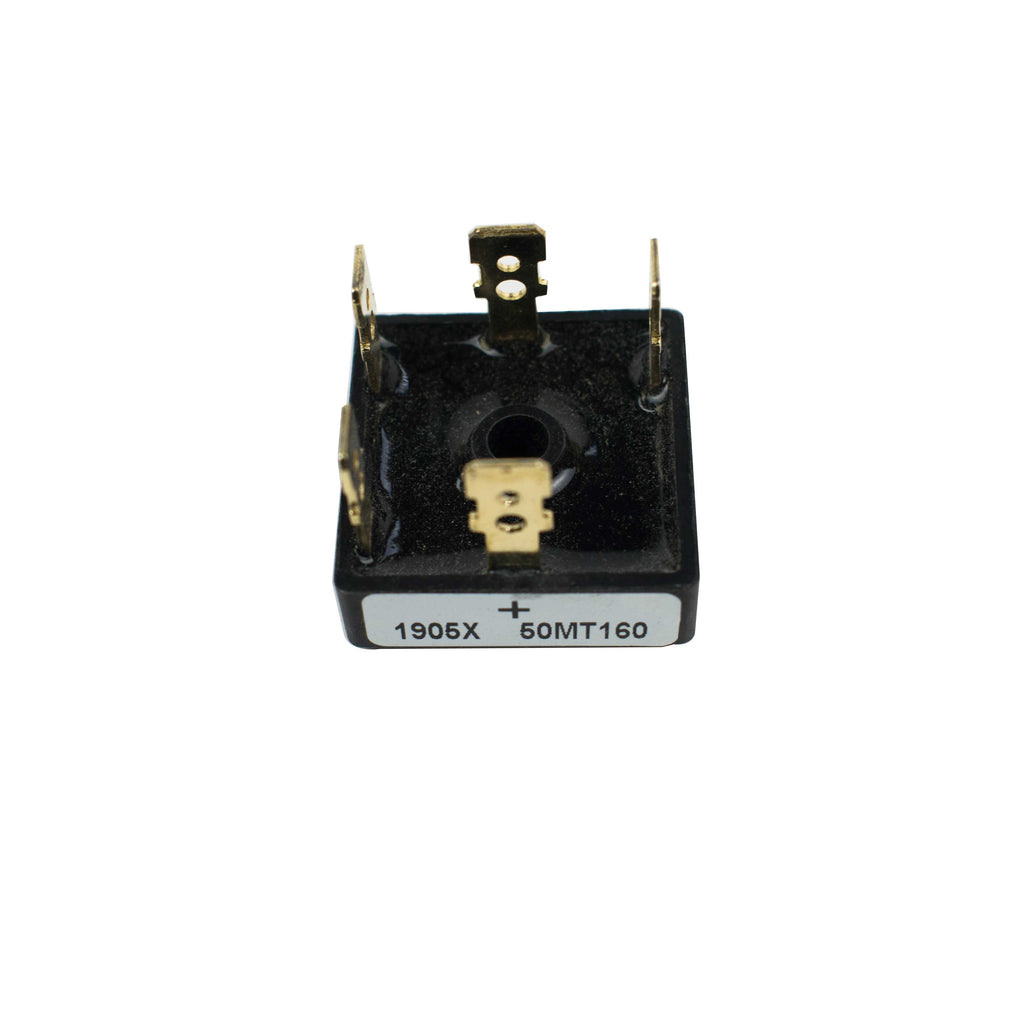

The 50MT160 is a Three Phase Bridge Rectifier Diode. The maximum DC current that this IC can handle is 50A hence can be used for a broad range of applications. This IC has a reverse breakdown voltage of 1600V and a low forward voltage drop of 1.2V. It has high efficiency and a high surge current capability of 500A. If you are looking for a compact IC for rectification application this can be a good choice. This bridge rectifier is typically used in large UPS systems, electroplating, electro-refining and anodising plants, and large DC motor controllers.
- Universal, 3 way terminals: push-on, wrap around or solder
- High thermal conductivity package, electrically insulated case
- Center hole fixing
- Excellent power/volume ratio
- Terminal solder temperature: 235-260°C max. time: 8-10 sec.
|Type||Bridge Rectifier Diode|
|Working Peak Reverse Voltage||1600 V|
|Average Forward Rectified Output Current||35A|
|Peak Reverse Current at 25°C||100µA|
|Operating and Storage Temperature Range||-40°C TO 150°C|
