50kg Load Cell with HX711 Weight Sensor

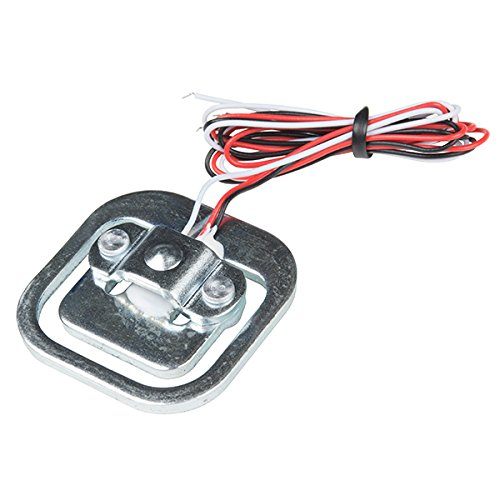

To measure the weight and load of any object we use strain gauges but the problem with using standalone strain gauges is that they are fragile and are easily bent and break if not used in proper enclosure. To overcome this difficulty this 50 KG Body Load Cell Weighing Sensor comes with a metal enclosure to protect the strain gauge inside. The Load cell is of internal resistance 1000Ω Half Bridge structure so, you will need to connect external resistances to read variation of resistance in full bridge or you can use two or 4 of these load cells to complete the bridge. If you are using 2 or more than two load cell weighing sensors then the weighing limit of the whole combination will increase. They are used in Platform scales, Electronic weighing machines, belt scales etc.

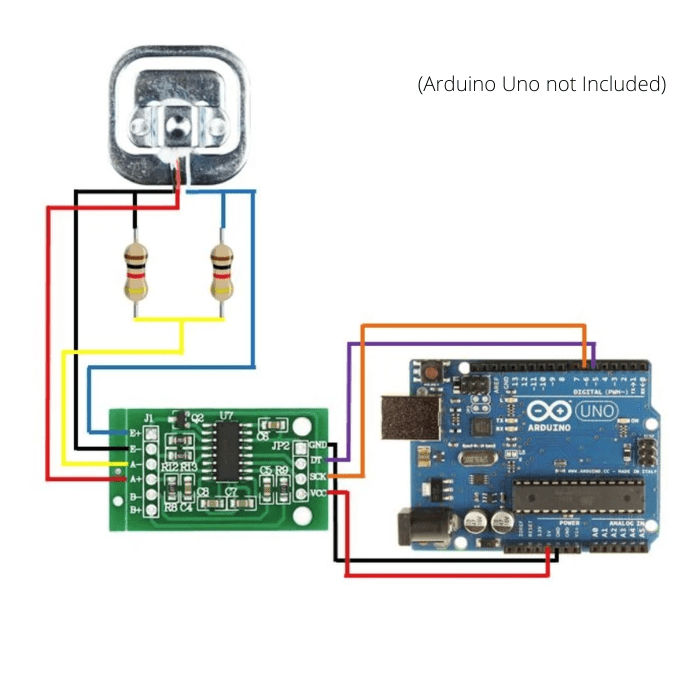

While using this sensor, we measure the change in resistance between the Red and White or Red and Black Wires. At times the change is so small that you will need an external amplifier like an HX711 breakout board to amplify the small changes to readable values that can be read by the microcontroller or ADC ICs.

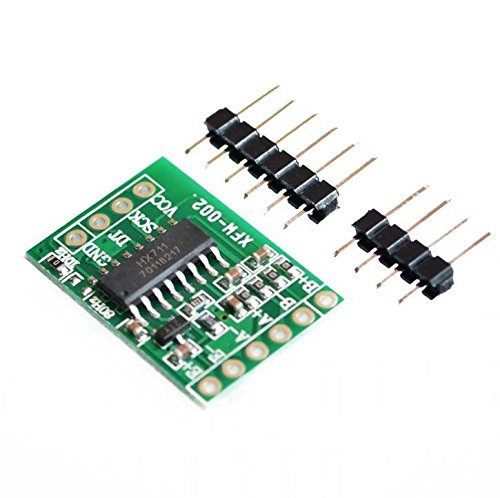

HX711: The dual-channel 24 Bit Precision A/D weight Pressure Sensor Load Cell Amplifier and ADC HX711 Module is a small breakout board; for the HX711 IC that allows you to easily read load cells to measure weight. By connecting the module to your microcontroller you will be able to read the changes in the resistance of the load cell, and with some calibration. You’ll be able to get very accurate weight measurements. This can be handy for creating your own industrial scale, process control, or simple presence detection. The HX711 Weighing Sensor uses a two-wire interface (Clock and Data) for communication. Any microcontroller’s GPIO pins should work and numerous libraries have been written making it easy to read data from the HX711.
Applications:
- Platform scales
- Electronic weighing machines
- Belt scales
Also check 50kg Load Cell available on the Robocraze website. It is described as an Alloy Steel wired weighing load cell with high accuracy, simple structure, and easy installation. The load cell is designed for use in hopper scales, platform scales, platform balance, belt scales, and other electronic weighing devices.
Package Includes:

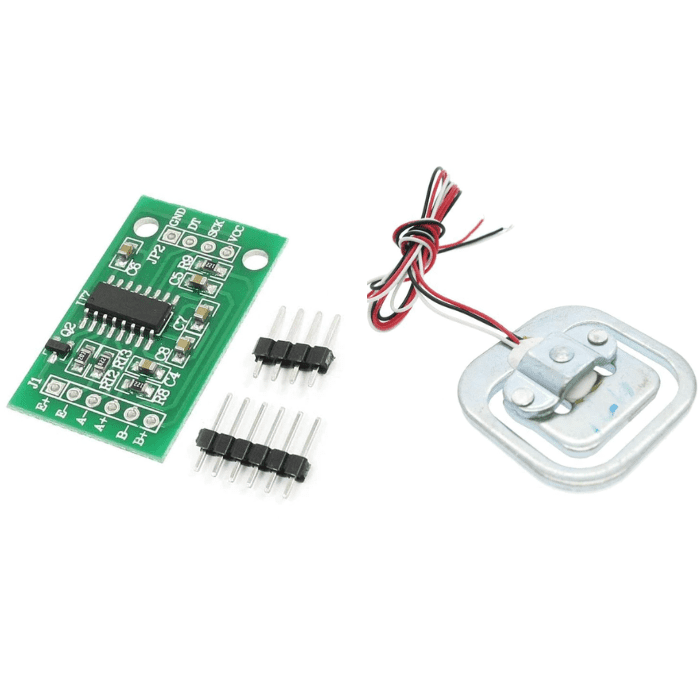

- 1 x 50Kg Load Cell + HX711
Specifications of 50Kg Load Cell:
| Capacity (Kg) | 50 |
| Output Sensitivity (mv/v) | 1 ± 0.1 |
| Nonlinearity (%FS) | 0.03 |
| Repeatability (%FS) | 0.03 |
| Input Resistance (Ω) | 1000 |
| Insulation Resistance (MΩ) | 5000 |
| Dimensions(mm) | 34 x 34 x 8 |
| Weight (gm) | 20 |
| Cable Length (cm) | 30 |
Specifications of HX711:
| Operating voltage (v) | 5 ~ 10 |
| Current consumption | normal operation < 1.5mA |
| Operating Temperature (°C) | -40 ~ +85 |
| Length (mm) | 34.3 x 20 x 3 |
| Weight (gm) | 5 |
