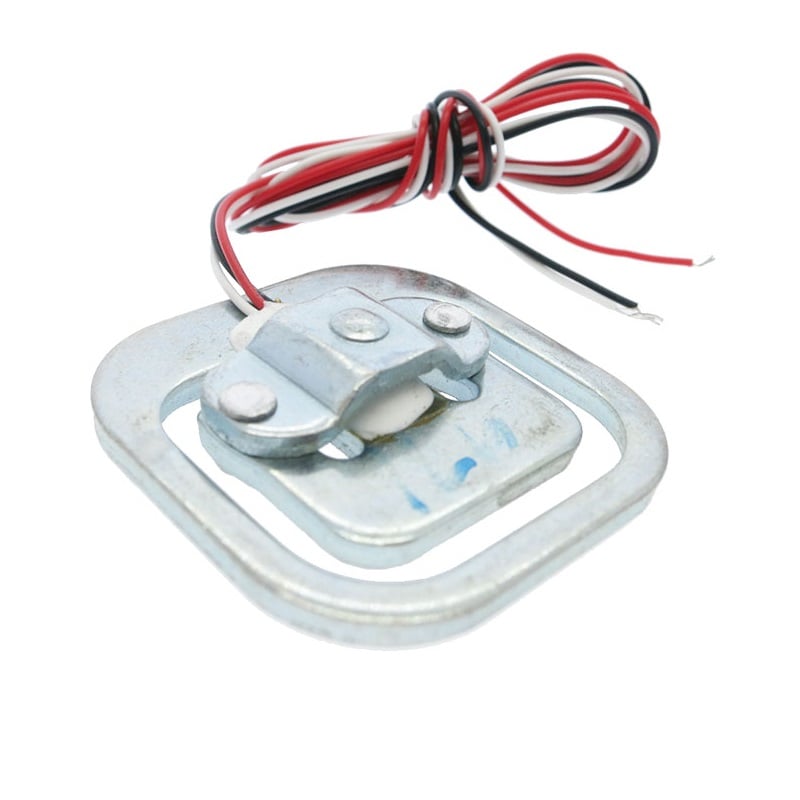

Description
- Capacity (Kg): 50.
- Output Sensitivity (mv/v): 1.0±0.1.
- Nonlinearity (%FS): 0.03.
- Repeatability (%FS): 0.03.
- Input Resistance (Ω): 1000.
- Insulation Resistance (MΩ): ≥5000.
| Capacity (Kg) |
50 |
|---|---|
| Output Sensitivity (mv/v) |
1 ± 0.1 |
| Nonlinearity (%FS) |
0.03 |
| Repeatability (%FS) |
0.03 |
| Input Resistance (Ω) |
1000 |
| Insulation Resistance (MΩ) |
5000 |
| Length (mm): |
34 |
| Width (mm): |
34 |
| Height (mm): |
8 |
| Weight (g): |
20 |
| Cable Length (cm) |
30 |
| Shipping Weight | 0.022 kg |
| Shipping Dimensions | 10 × 7 × 5 cm |
