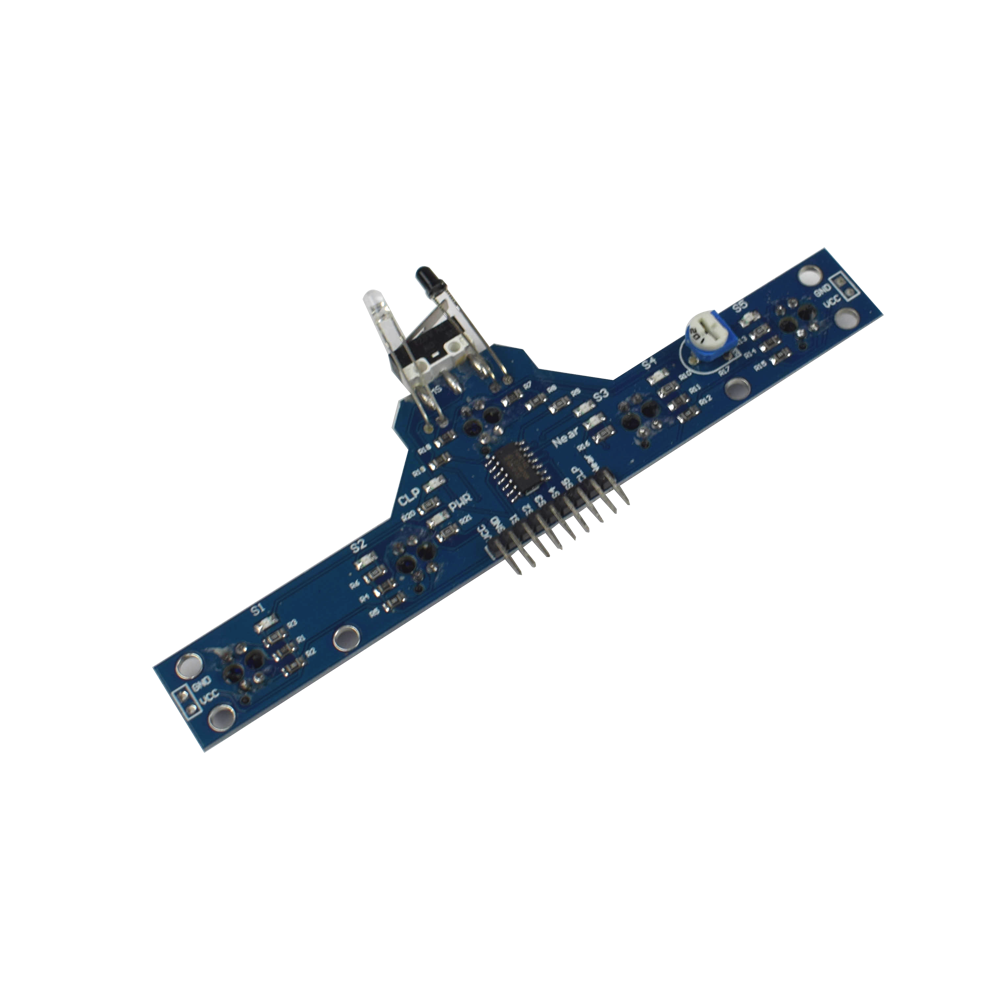

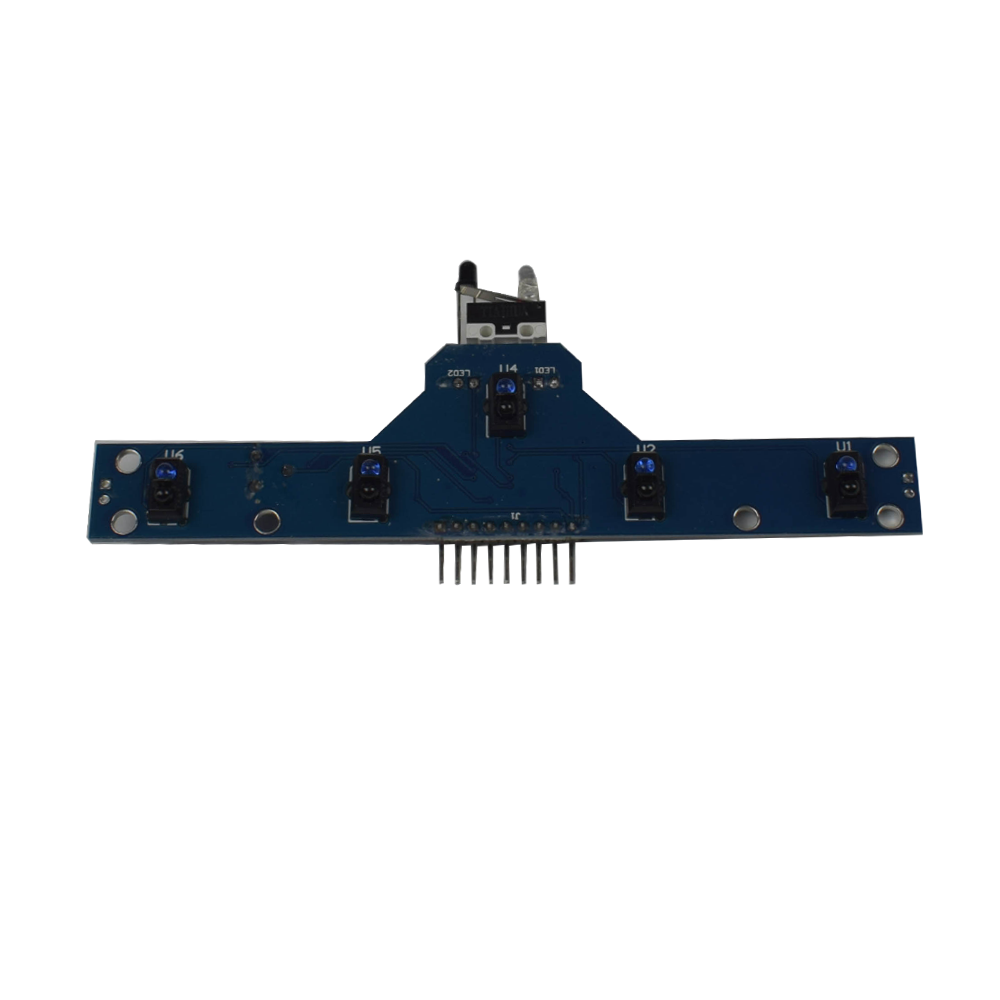

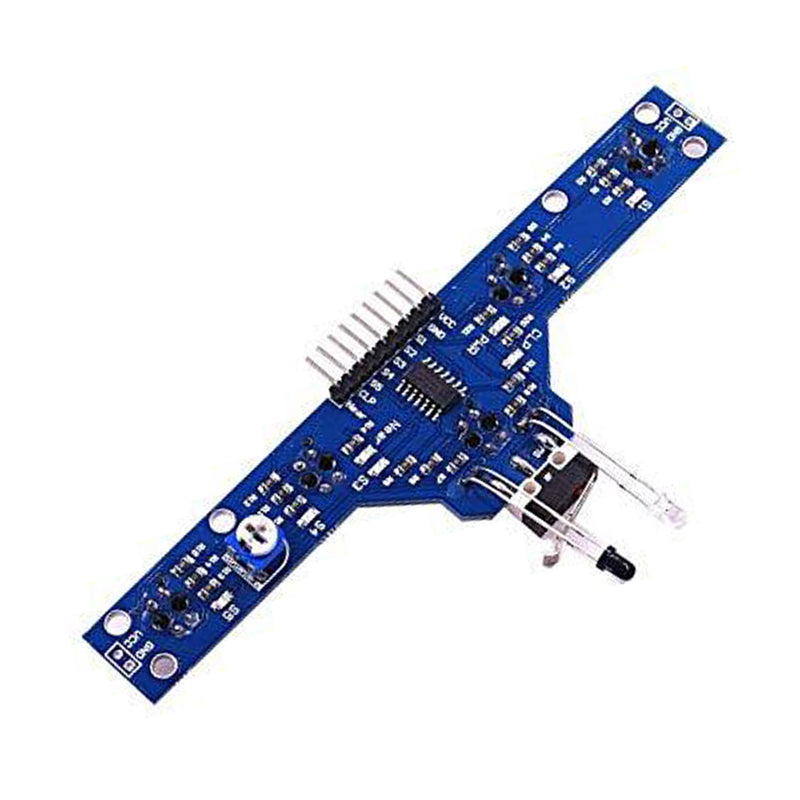

An IR sensor array consists of 5 TCRT 5000 sensors at the bottom, an IR sensor emitter and receiver arrangement at the front to detect obstacles or obstruction and a bump switch ( more commonly known as a limit switch). The array can be used effectively in robotic applications like a line follower robot. Using this array we can view the sensor outputs either in digital format (i.e. 1 or 0) or in analog format with output in varying voltage ranges. This sensor array is also known as infrared array detector, infrared array sensor or infrared linear array detector. The approximate operating wavelength of the sensor array is 5 cm. The IR sensor array operates on 5V and can be used with a development kit easily.
It is also known as an Infrared array detector, infrared array sensor, Infrared array sensor grid-eye, Infrared sensor array Arduino, Infrared linear array detector, ir sensor array circuit for line follower.
To know more about interfacing please visit: Love Thy Components - 5 Way IR Array with Bump Switch
|Distance between each IR Sensor||15mm|
|Total Number of sensors||8|
|Output from TCRT5000||S1, S2, S3, S4, S5 (Digital)|
|Output from Bump Switch||CLP (Digital)|
|Output from IR sensor||Near (Digital)|
