Description

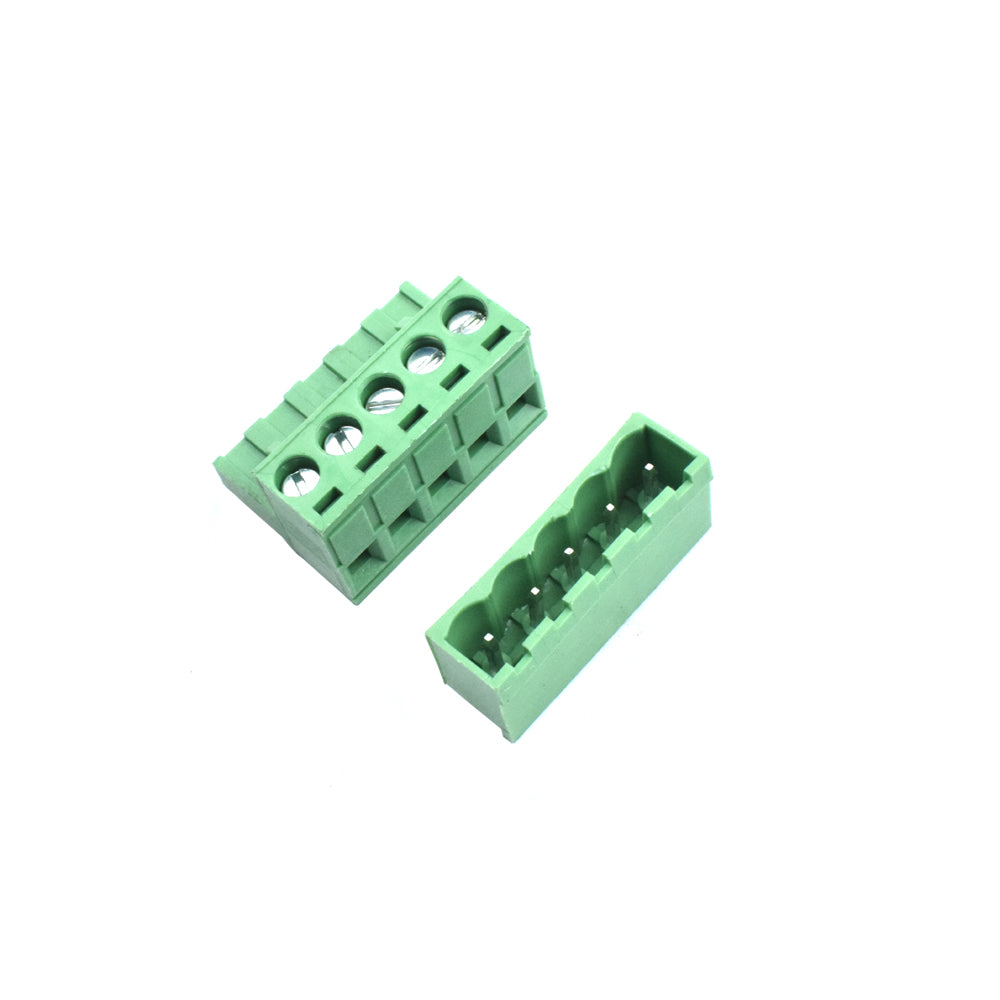

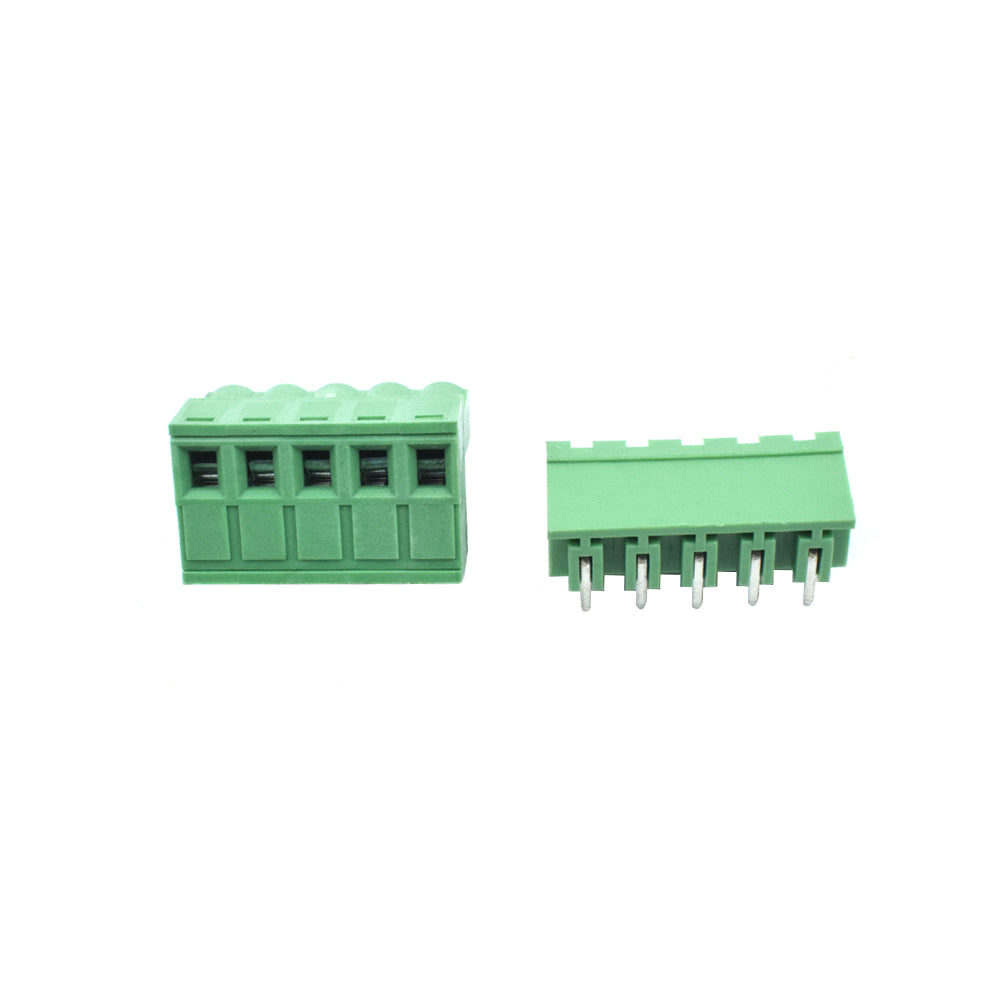

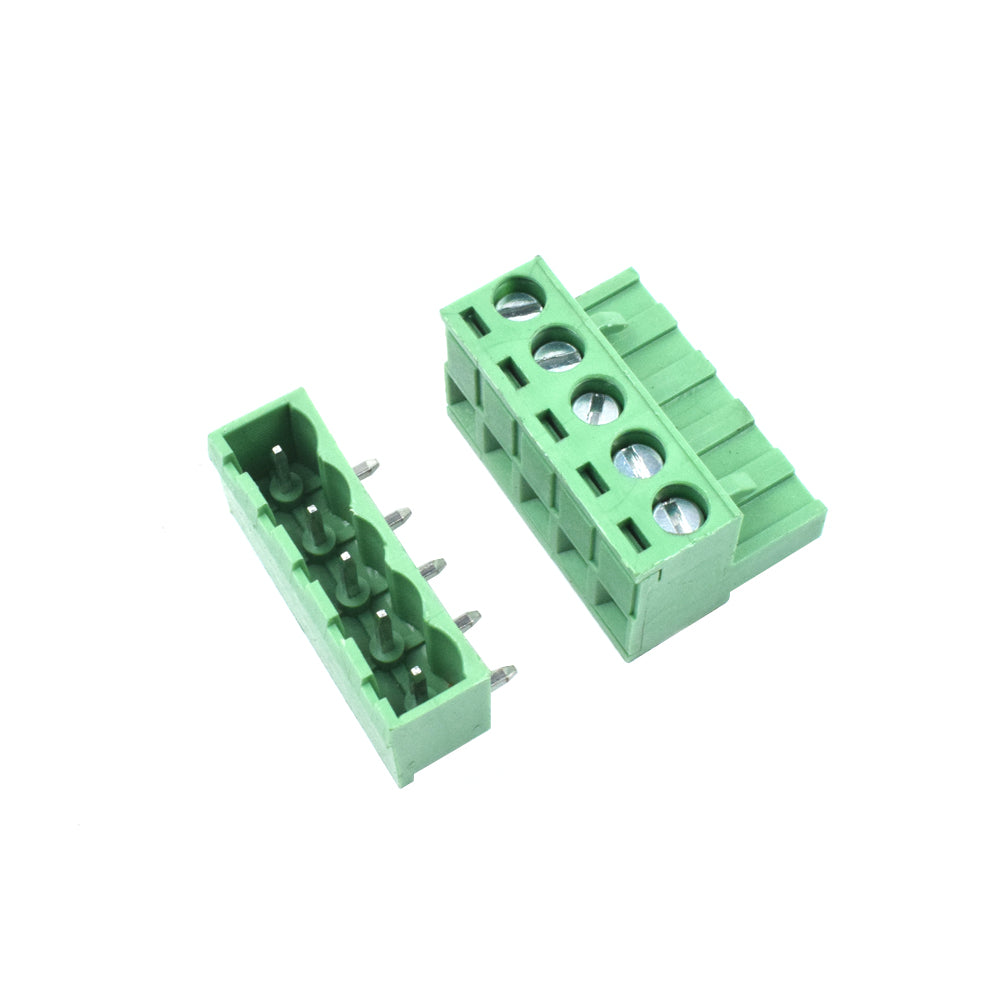

The 5 Pin Female Pluggable Terminal is a Right Angle Terminal pitch 5.08mm that is suitable for the wire to board connectors in a variety of industrial and other electronics products. It is appropriate for use when the PCB is placed inside the enclosure and connections must be accessible from the outside. The wires are held in place by a screw in the connector. Male Connectors are right angle and will fit on the THT PCB Board. A terminal block connector is a component consisting of a plastic housing with metal holdings which is used to connect wires to a circuit. A terminal block is a modular housing with an insulated body that connects two or more wires.
Features:
- Its Pitch is 5.08mm
- High Quality
- Type Male- Female
- Its Current Rating is 15A , 300V AC
- Its AWG : 28-12
Specification
| Type | 5 Pin Female Terminal + 5 pin Male Right Angle |
| Pitch | 5.08mm |
| Current Rating | 15A , 300V AC |
| AWG Diameter | 28-12 |
| Termination | PCB Mount |
| Connector | PCB Terminal Block |
| Mounting Style | Through Hole |
| Country of Origin | China |
