Description

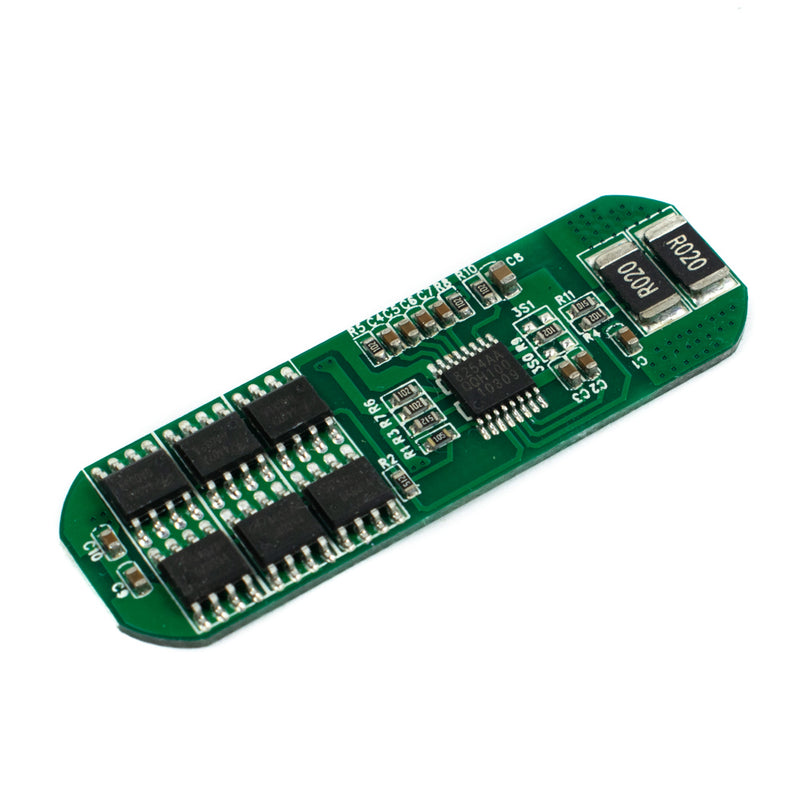

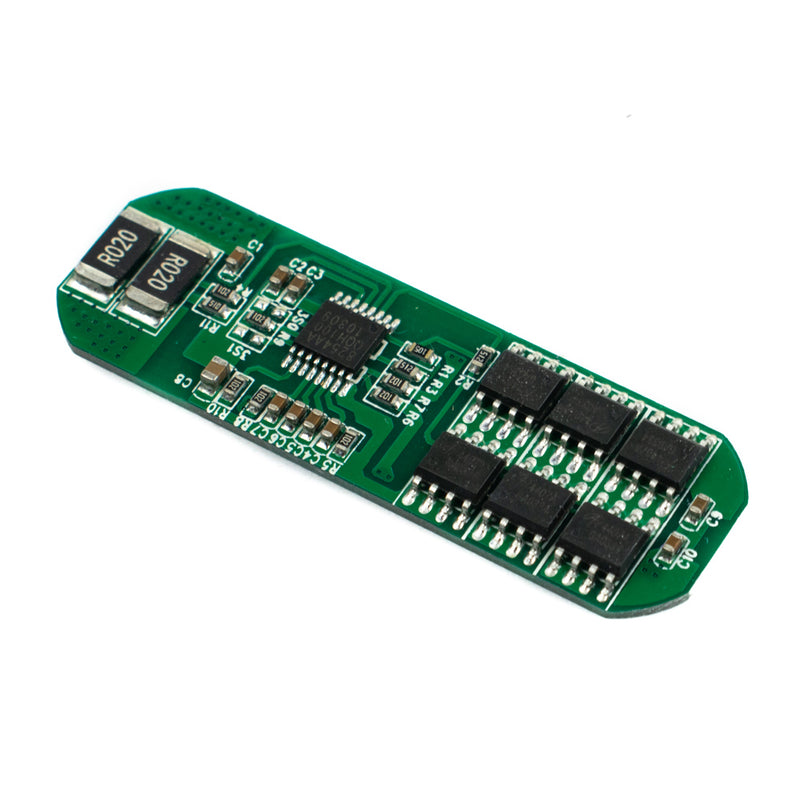

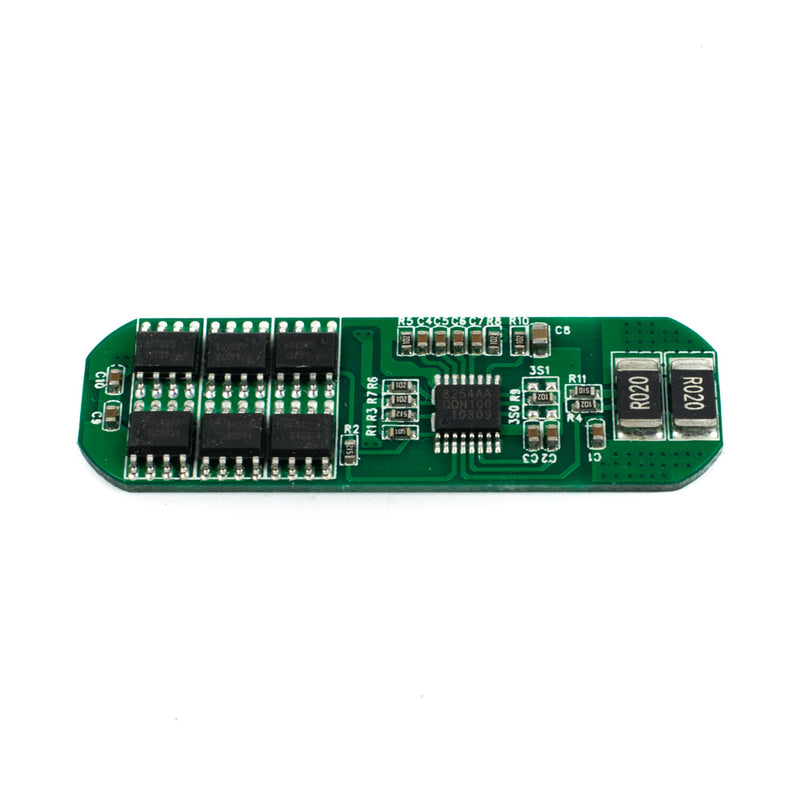

This is a LiFePO4 battery BMS protection board, often known as a battery management system, for LiFePO4 batteries. The board's design is lightweight, making it simple to store and move. Overcharging and over-discharging protection, as well as short circuit and overcurrent protection, are all included on the board. This board may also be used to charge lithium batteries, as long as they are rechargeable. We can construct a battery pack with a voltage rating of up to 15V DC by combining 4 LiFePO4 electric cells with this BMS system. Charging the LiFePO4 battery without BMS may degrade the quality of battery.
Features
- High-accuracy voltage detection circuit;
- Terminal of the charger using a high voltage device;
- Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
- MOS transistor can control the battery charge and discharge;
- Low standby current consumption.
Specifications
| Single overcharge detection voltage | 3.7V±0.025V |
| Overcharge detection delay time | 1.5s |
| Single overcharge release voltage | 3.60V±0.04V |
| Cell balance detection voltage | 3.5V±0.025V |
| Cell balance release voltage | 3.50V±0.025V |
| Balance Current | 70mA±10mA |
| Single over-discharge detection voltage | 2.10V±0.08V |
| Over-discharge detection delay time | 1.5s |
| Single over-discharge release voltage | 2.40V±0.1V |
| Quiescent Current | ≤40µA |
| Sustainable Discharge Current | 8A |
| Sustainable Charging Current | 8A |
| Stop Charging at Temp. | >50°C |
| Stop Discharging at Temp. | >70°C |
| Size | 70x17x3mm |
| Country of Origin | China |
