Description

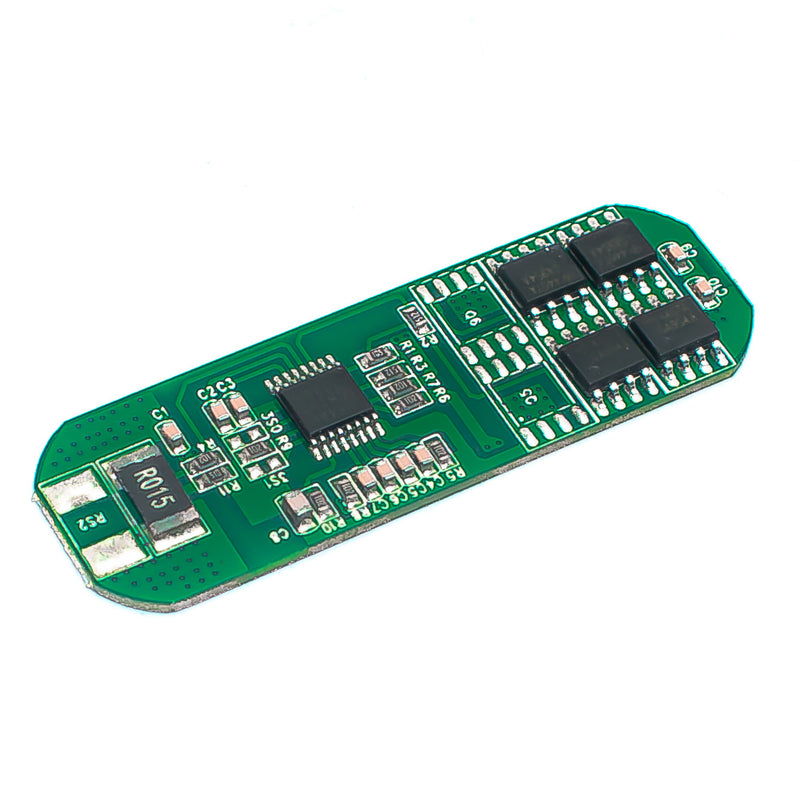

This board is a Lithium battery protection board or a battery management system that is used for 3.7V lithium-ion batteries. The board offers overcharging and over-discharging protection along with short circuit protection as well as over current protection. We can use this board to charge the lithium-ion/Lithium Polymer batteries provided that they are rechargeable.
Features:
- Its used for 3.7V Lithium ion battery
- Its operating voltage is 14.8V
- Its current is 6A
Specifications
| Maximum Working Current | 4A |
| Maximum Peak Current | 6A |
| Overcharge Voltage Range | 4.25-4.35V per cell |
| Over-Discharge Voltage | 2.3-3.0V |
| Quiescent Current | <30µA |
| Size | 50.5x16x2.6mm |
| Country of Origin | China |
