Description

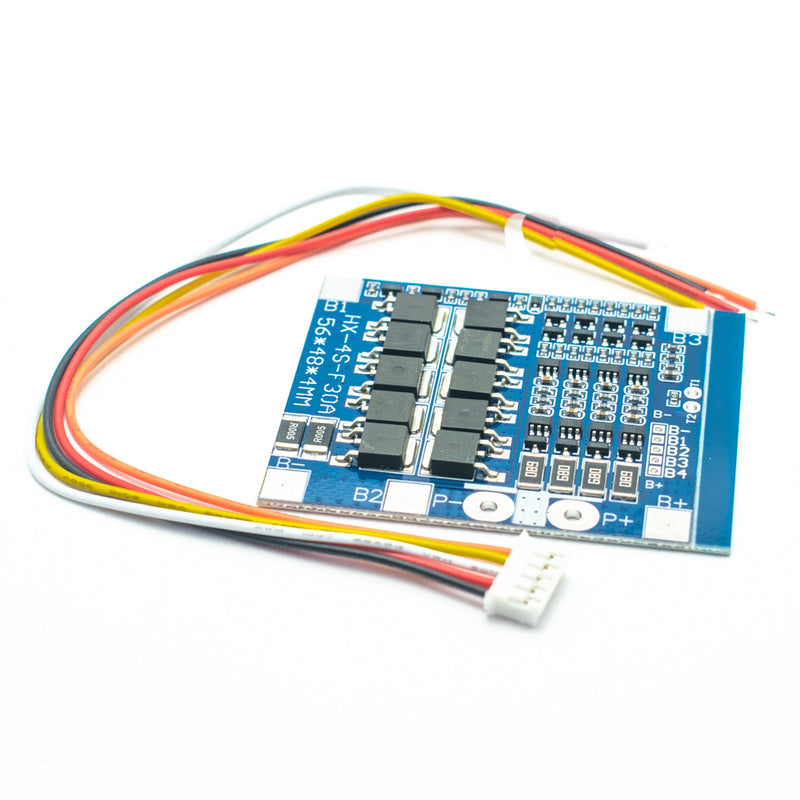

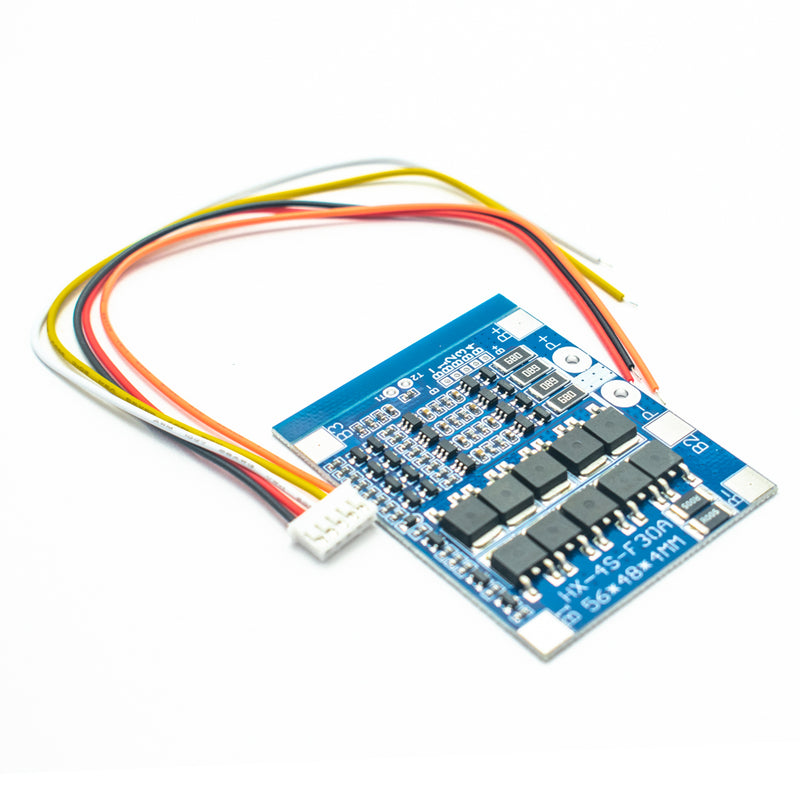

The 4S 30A 12.8V BMS Protection PCB Board is designed for LiFePO4 32650 batteries. It features balance charging to ensure uniform voltage across all cells, protecting against overcharge, over-discharge, overcurrent, and short circuits. Ideal for 4-cell battery packs, it enhances safety and prolongs battery life.
Specifications:
- Battery Type: LiFePO4 32650
- Cell Configuration: 4S (4 cells in series)
- Nominal Voltage: 12.8V
- Maximum Continuous Discharge Current: 30A
- Overcharge Protection Voltage: 3.6V ± 0.05V per cell
- Over-discharge Protection Voltage: 2.2V ± 0.05V per cell
- Balance Charge Voltage: 3.2V per cell
