LiFePO4 4S 12.8V 10A Battery Management System

Sold By: HatchnHackSKU: 9J07

Price:
Sale price₹ 299.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

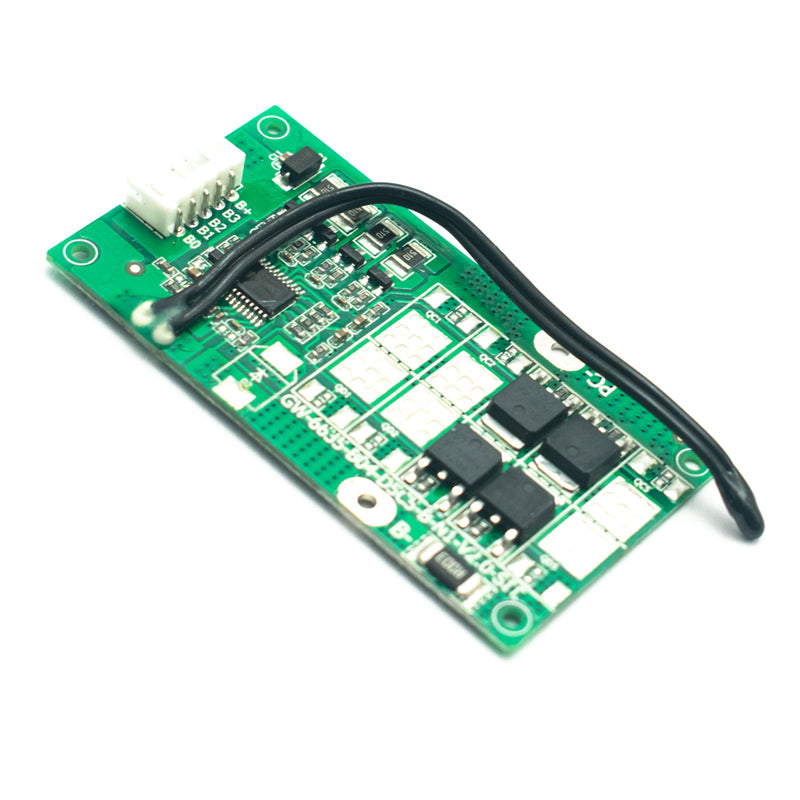

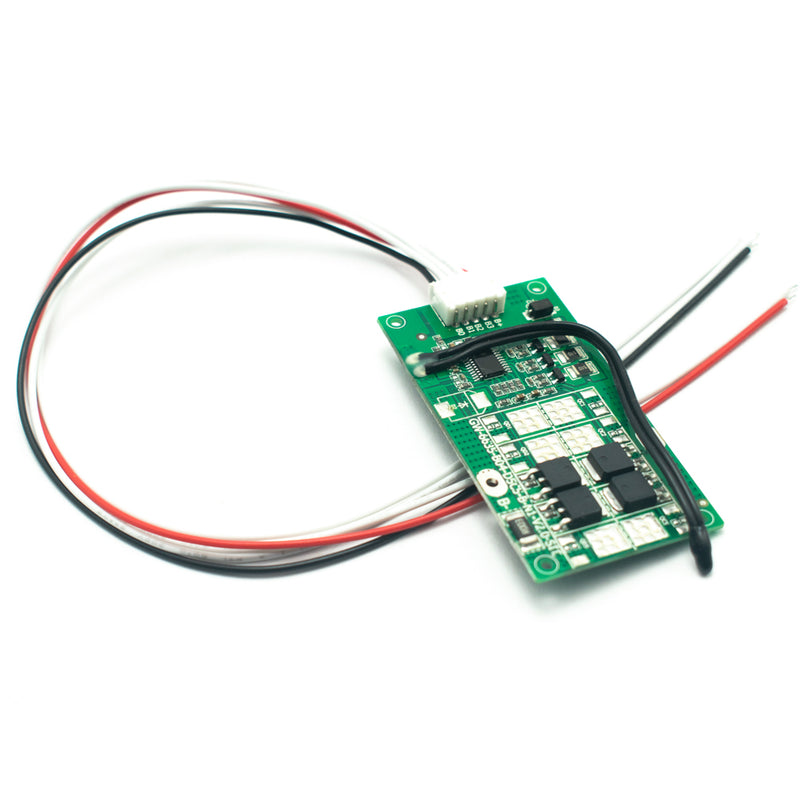

This is a Lithium battery protection board, often known as a battery management system, for LiFePO4 batteries. The board's design is lightweight, making it simple to store and move. Overcharging and over-discharging protection, as well as short circuit and overcurrent protection, are all included on the board. This board may also be used to charge lithium batteries, as long as they are rechargeable. We can construct a battery pack with a voltage rating of up to 15V DC by combining 4 LiFePO4 electric cells with this BMS system.


Specifications
Single overcharge detection voltage 3.7V±0.025V
Overcharge detection delay time 1.5s
Single overcharge release voltage 3.60V±0.04V
Cell balance detection voltage 3.5V±0.025V
Cell balance release voltage 3.50V±0.025V
Balance Current 70mA±10mA
Single over-discharge detection voltage 2.10V±0.08V
Over-discharge detection delay time 1.5s
Single over-discharge release voltage 2.40V±0.1V
Quiescent Current ≤40µA
Sustainable Discharge Current 10A
Sustainable Charging Current 10A
Stop Charging at Temp. >50°C
Stop Discharging at Temp. >70°C
Size 66x35x7mm
