Description
4inch DSI Round Touch Display
720 × 720, IPS, 10-Point Touch
Size 4"
|
Resolution 720×720
|
Display Interface DSI
|
Display Panel IPS
|
Viewing Angle 170°
|
Touch Type Capacitive
|
Touch Points 10-Points
|
Touch Port I2C
|
Touch Panel Toughened Glass
|
Touch Panel Tech Optical Bonding
|
Device & System Support
|
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver required
Supports Pi 4B/3B+/3A+, CM3/3+/4* * some CM3/3+/4 base boards require extra adapter cable
|
Connection Examples
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
for reference only, the Raspberry Pi boards are NOT included.
IPS Display Panel
Excellent Display Performance With 170° Wide Viewing Angle
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Adjustable Brightness Via Software

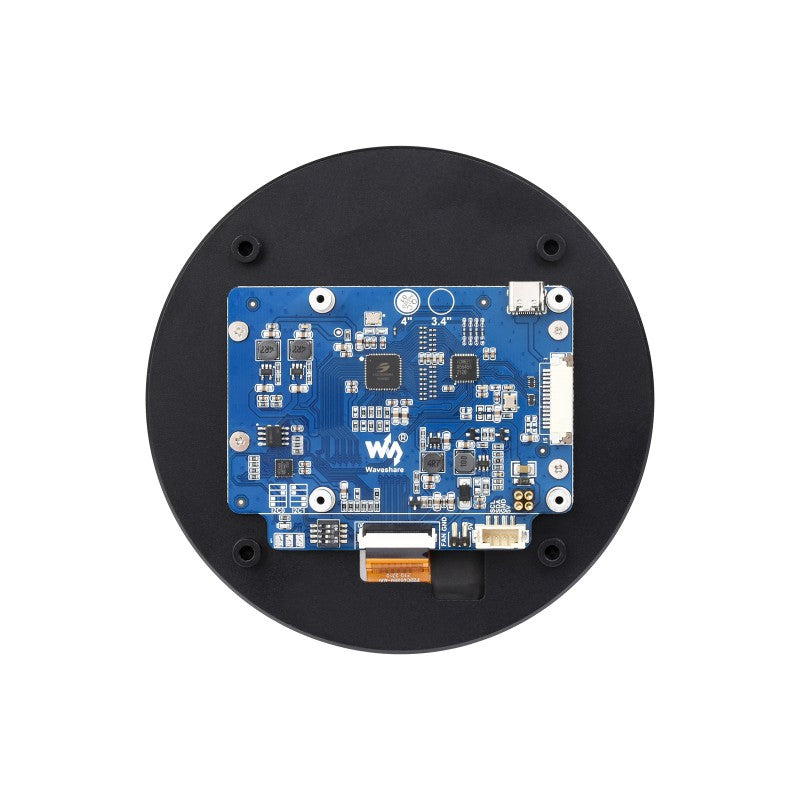

Interface Introduction
Application Examples
Smart Home |
In-vehicle Devices |
Consumer Electronics |
Industrial Equipments |
Dimensions
Package Contents
- 4inch DSI LCD (C) x1
- FPC 15 PIN cable (~ 50mm) x2
- Screwspack x1
- Weight: 0.021 kg
