Description

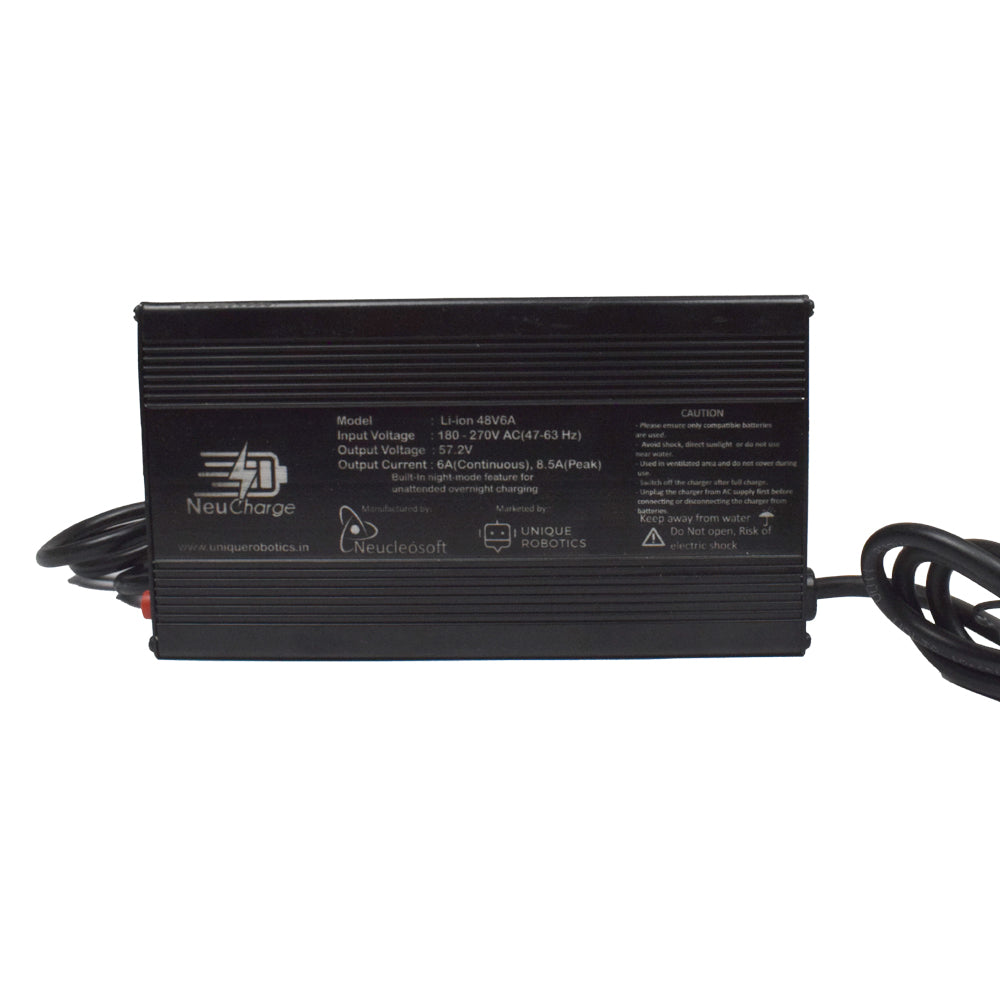

This is a 48V 6A Li-ion Battery Charging Power Supply. The Nominal Output Voltage is 57.2V with a continuous 6A current. It has a Built-in night mode feature for unattended overnight charging. The Input voltage is 180-270V AC Supply. This power supply encloses with a plastic body whose dimension is 195mm*106mm*76mm. The DC Interface is a type of XLR Male 3-Pin Connector with a 120mm Cable Length.
Features
- Build-in night mode feature for unattended overnight charging
- Good Quality
Applications
- Electric Vehicle Battery Charging.
Specifications
| Model | Li-ion 48V6A |
| Type |
Battery Charging Power Supply |
| Input Power Source | 180-270VAC @(47-63 Hz) |
| Output Voltage | 57.2 VDC |
| Continuous Output Current | 6A |
| Peak Output Current |
8.5A |
| Battery Charging Voltage | 48V |
| Size (L*W*D) (mm) | 195*106*76 (mm) |

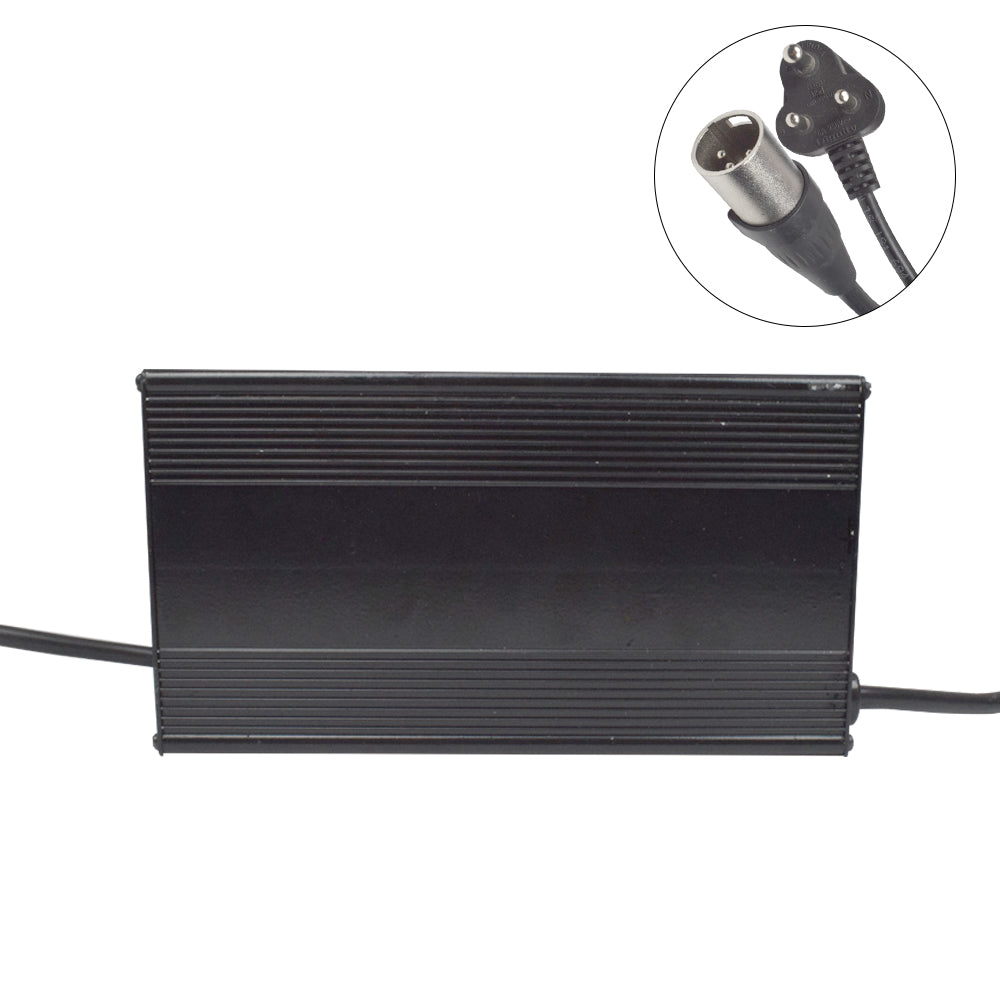

| Output DC Interface or Cord | XLR Male 3-Pin Type |
| DC Cord Diameter | 19mm |
| Length of DC Cable | 120mm |
| Body Material | Plastic |
| Colour | Black |
| Country of Origin | China |
