Description

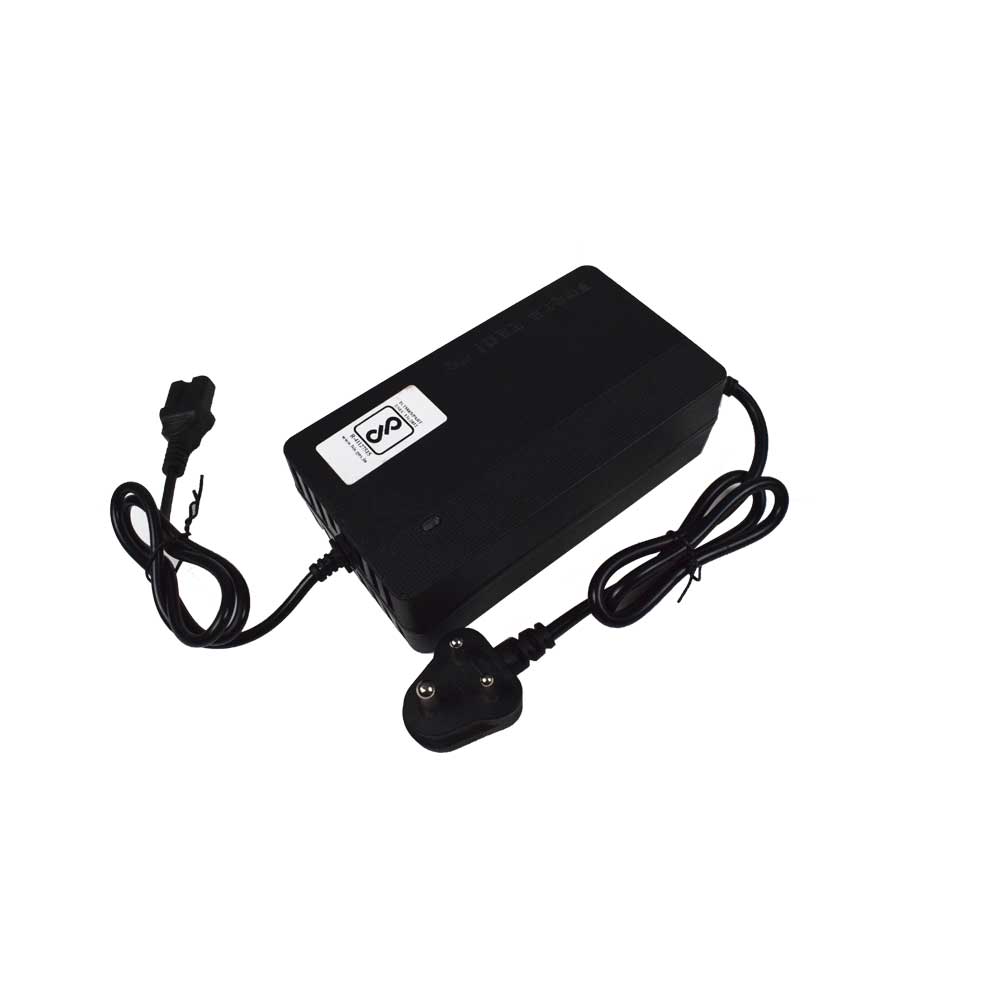

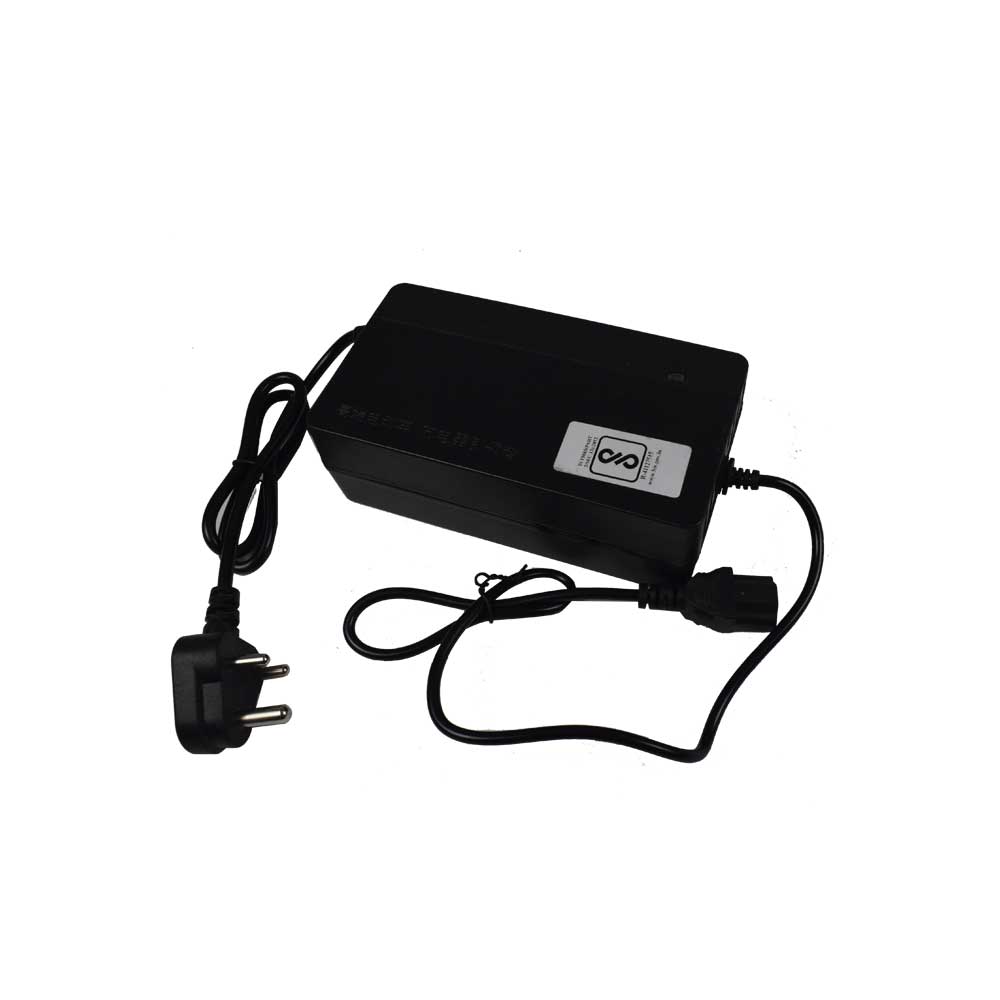

This is a 48V 20Ah Electric Vehicle Battery Charging Power Supply with 160 Watt Output Power. The supply of direct current (DC) is required for EV charging. Because electricity distribution systems supply alternating current (AC), a converter is required to provide direct current (DC) power to the battery.
Applications
- Electric Vehicle Battery Charging.
Specifications
| Product | Battery Charging Power Supply |
| Input Power Source | 220V AC @50Hz |
| Output Voltage Range | 54.5 VDC - 59.2 VDC |
| Output Current | 2.7A ±0.2A |
| Max Output Power | 160 Watt |
| Battery Charging Voltage | 48V 20Ah |
| Size (L*W*D) (mm) | 168*92*56 (mm) |
| Output Interface | Power Cord |
| Power Indication | YES (Green LED) |
| Material | Plastic |
| Colour | Black |
| Country of Origin | China |
