Description
- Launch Distance: 20-200 meters (different voltage, different results)
- Operating Voltage: 3.5-12V
- Operating Mode: AM
- Transfer Rate: 4KB / S
- Transmitting Power: 10mW
- Transmitting Frequency: 433M
Description:
Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Specification:
-
Receiver:
- Operating Voltage: DC5V
- Quiescent Current: 4MA
- Receiving Frequency: 433.92MHZ
- Receiver Sensitivity: -105DB
- Launch Distance: 20-200 meters (different voltage, different results)
-
Transmitter:
- Operating Voltage: 3.5-12V
- Operating Mode: AM
- Transfer Rate: 4KB / S
- Transmitting Power: 10mW
- Transmitting Frequency: 433M
Pin Description:

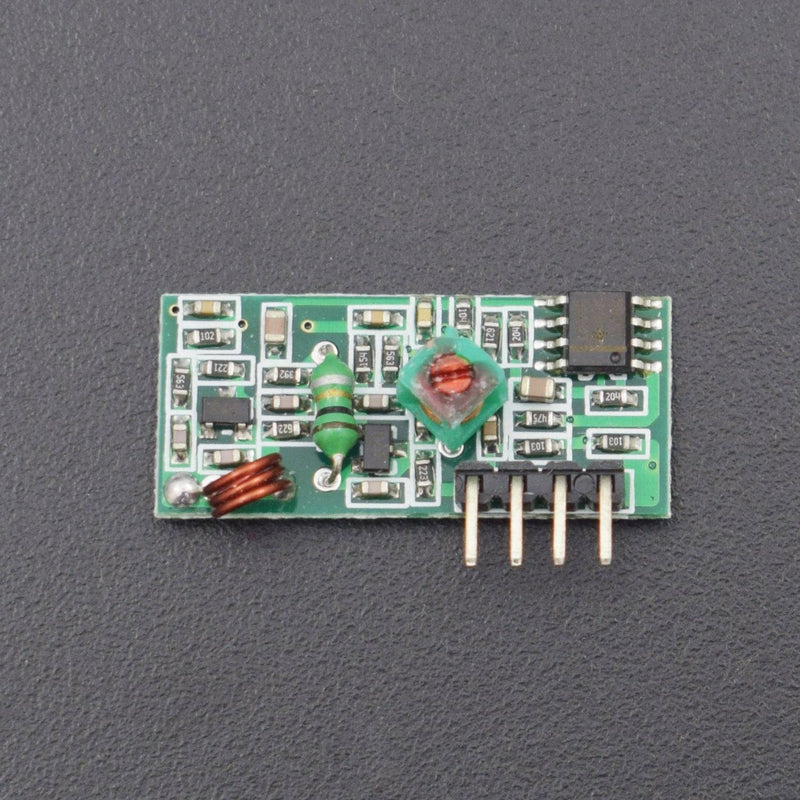

Receiver:
No. |
Pin Name |
Description |
1 |
VCC |
Power supply (3V to 12V) |
2 |
DATA |
Data received can be obtained from this pin |
3 |
DATA |
It serves the same purpose (anyone can be used) |
4 |
GND |
Connected to the ground of the circuit |
5 |
ANTENNA |
Solder wire/antenna to improve range (not mandatory) |

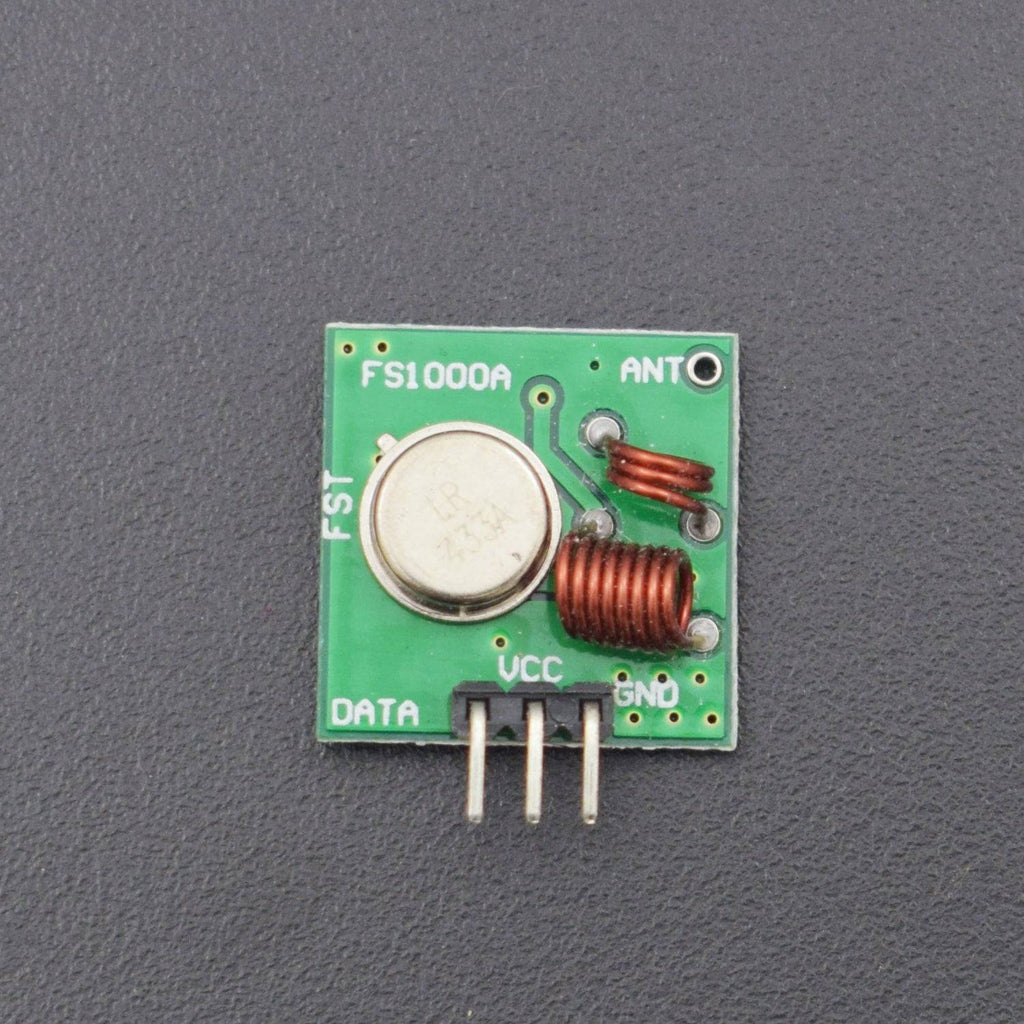

Transmitter:
No. |
Pin Name |
Description |
1 |
VCC |
Power supply (+5V only) |
2 |
DATA |
Data to be transmitted is sent to this pin |
3 |
GND |
Connected to the ground of the circuit |
4 |
ANTENNA |
Solder wire/antenna to improve range (not mandatory) |
Package Included:

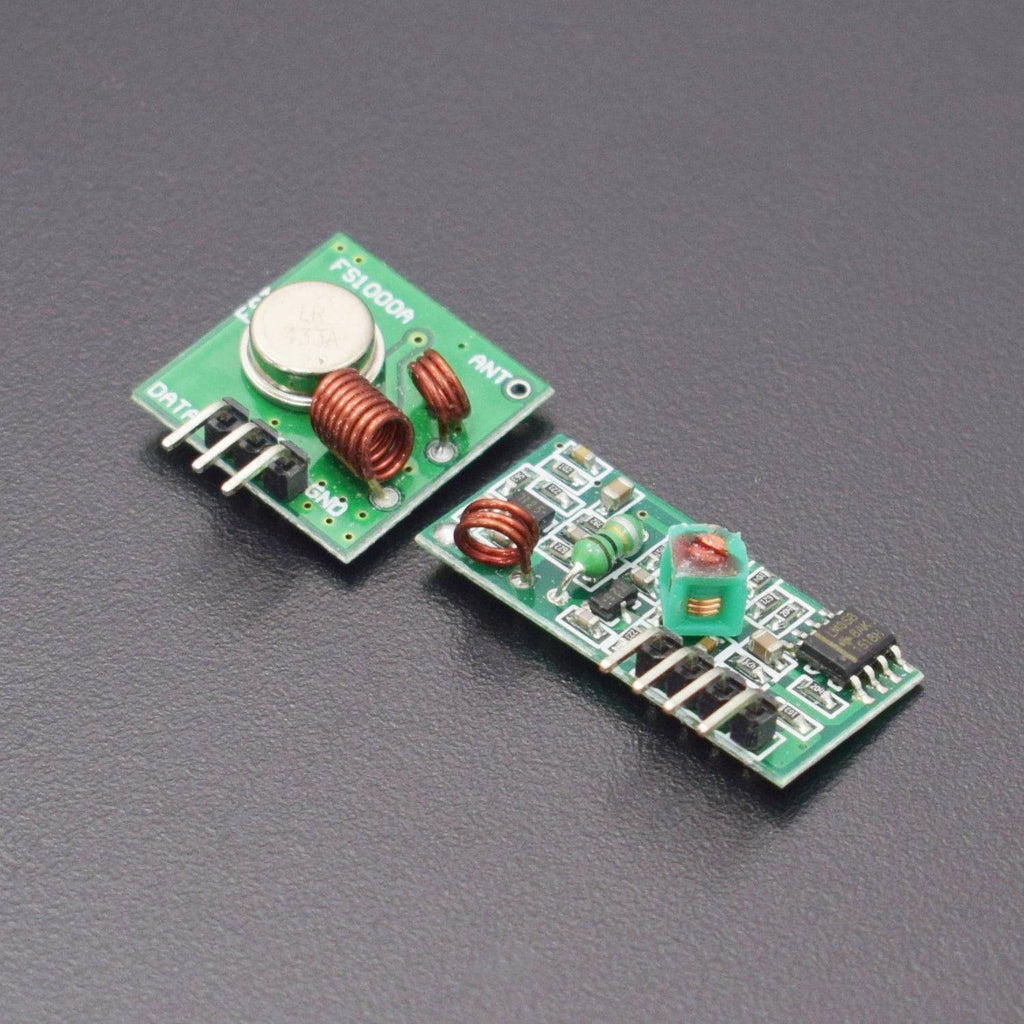

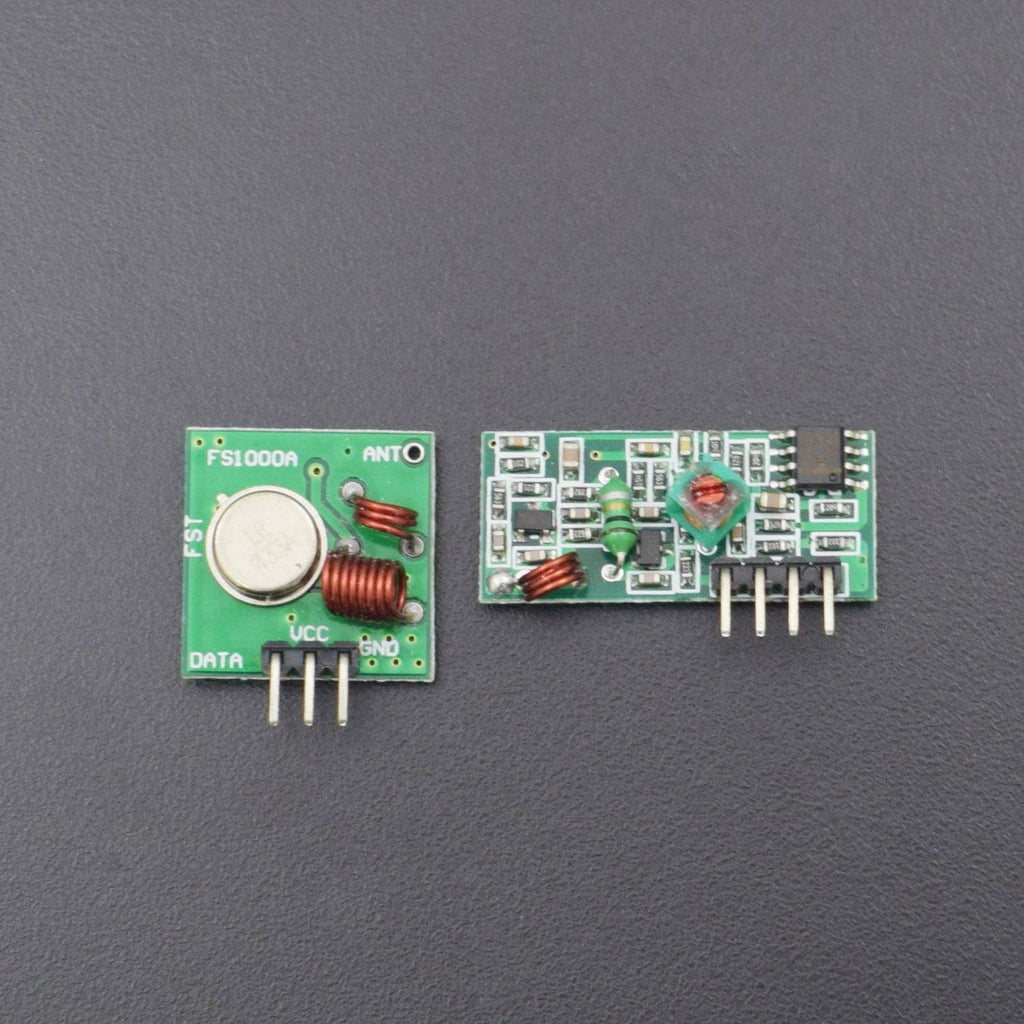

1 x 433Mhz RF Transmitter With Receiver
