Description

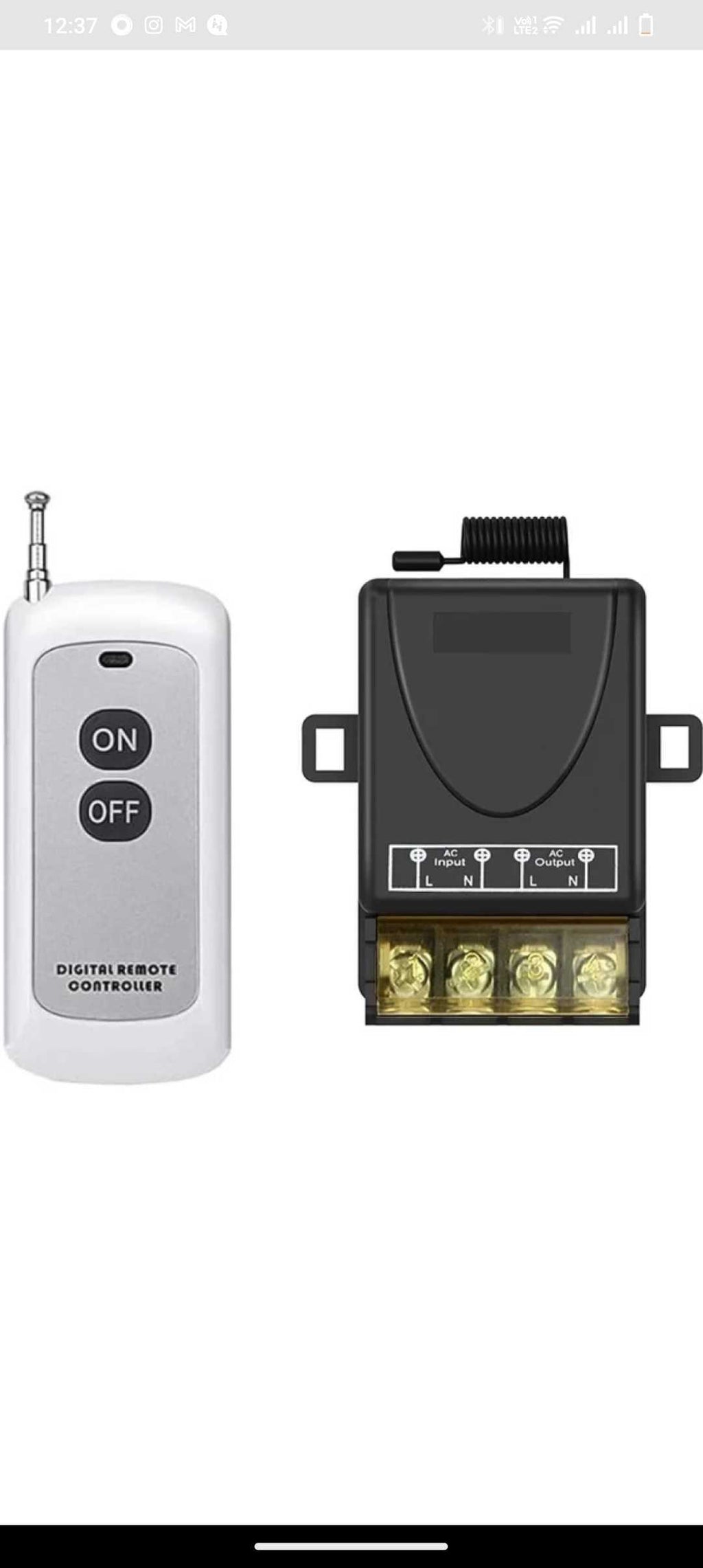

433 MHz Single Channel RF Transmitter Receiver Remote Control Switch for Heavy Loads up to 30A. This Device allows you to control appliances (Heavy Loads) with a current rating of up to 30A using the remote control.
Specification
|
Receiver |
|
| Working Voltage | 110-250V AC |
| Working Frequency | 433MHz |
| Modulation | ASK |
| Receiving Sensitivity | -104dBm |
| Working Temperature | -30°C~70°C |
| Max Load | 30A Relay, Resistive Load≤25A, Inductive Load≤20A |
| Operating Distance | 20-50 meter |
| Function | Toggle/Momentary/Latch |
| No. of Learnable Transmitters | 1-25 |
| Size | 60x40x30mm |

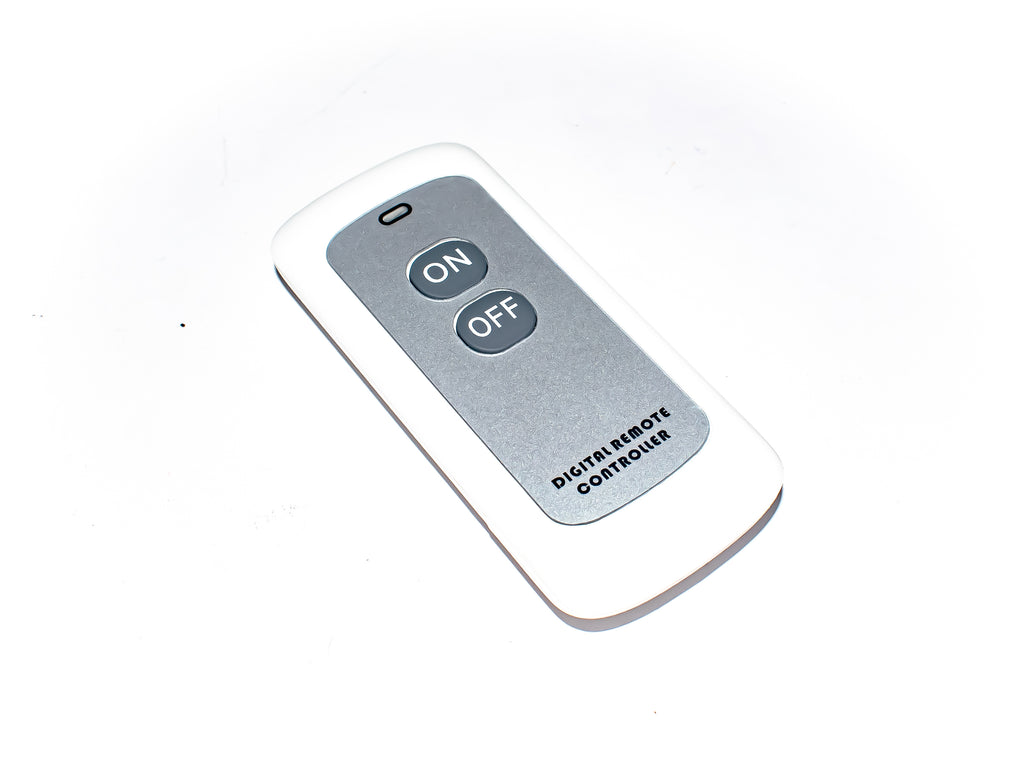

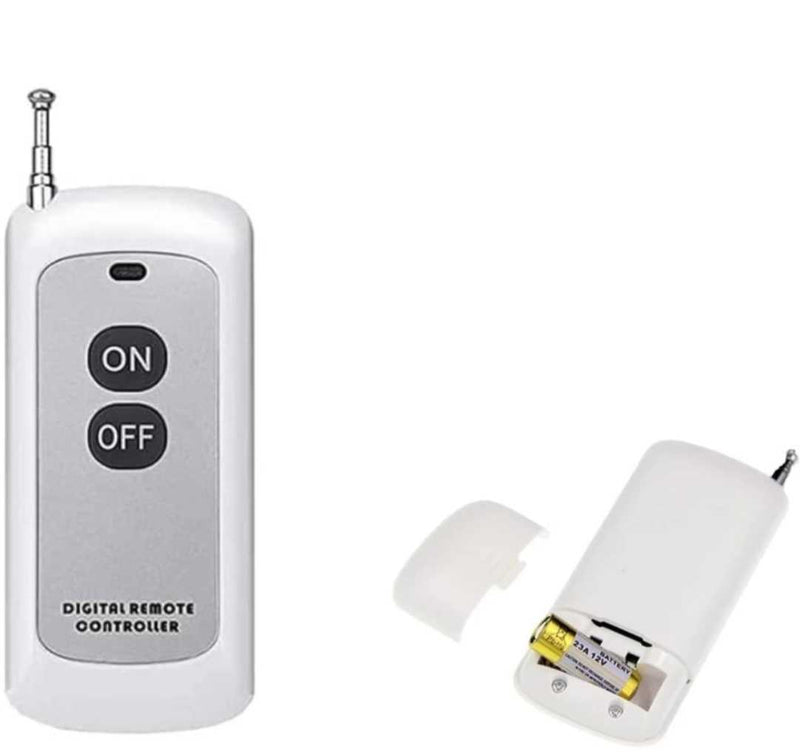

| Transmitter | |
| Working Voltage | 12V DC |
| Working Frequency | 433 MHz |
| Coding Chip | EV1527 |
| Number of Keys | 2 |
| Size | 92x40x15mm |
| Operating Distance | ≤600 meter Free Space |
