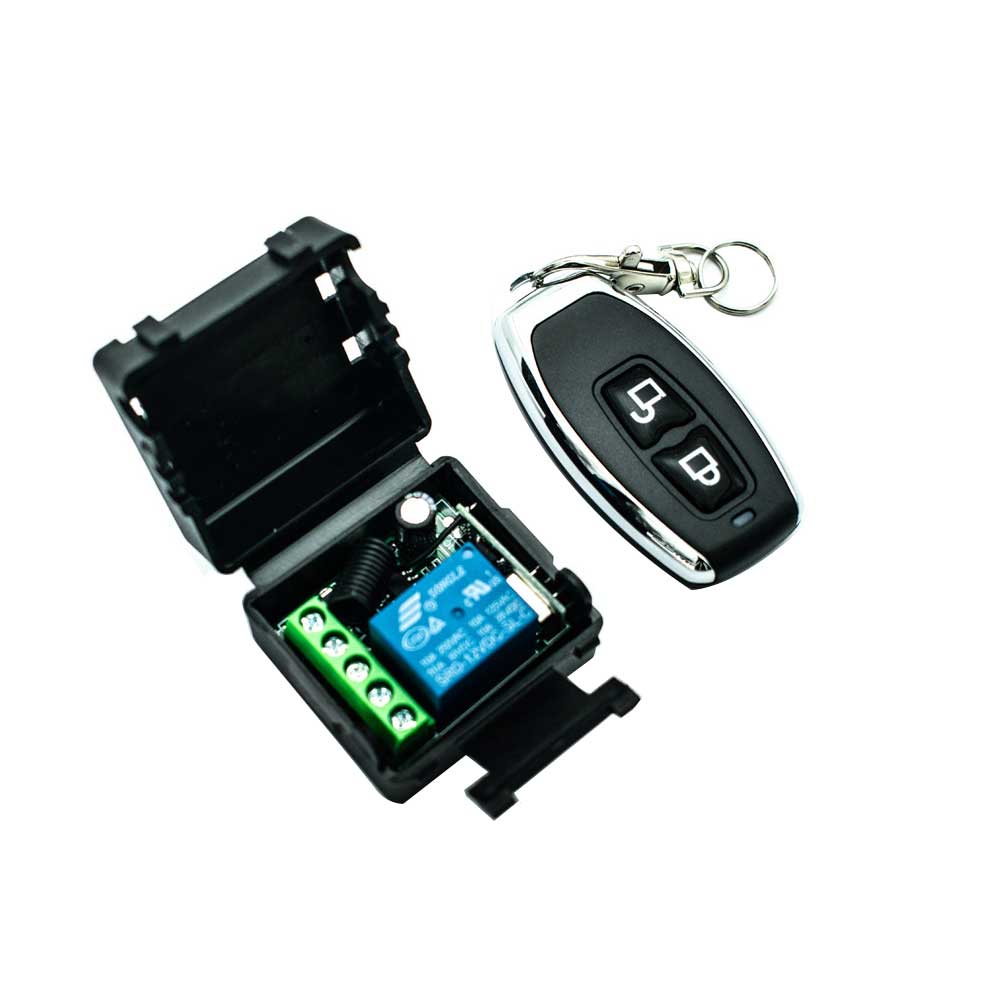

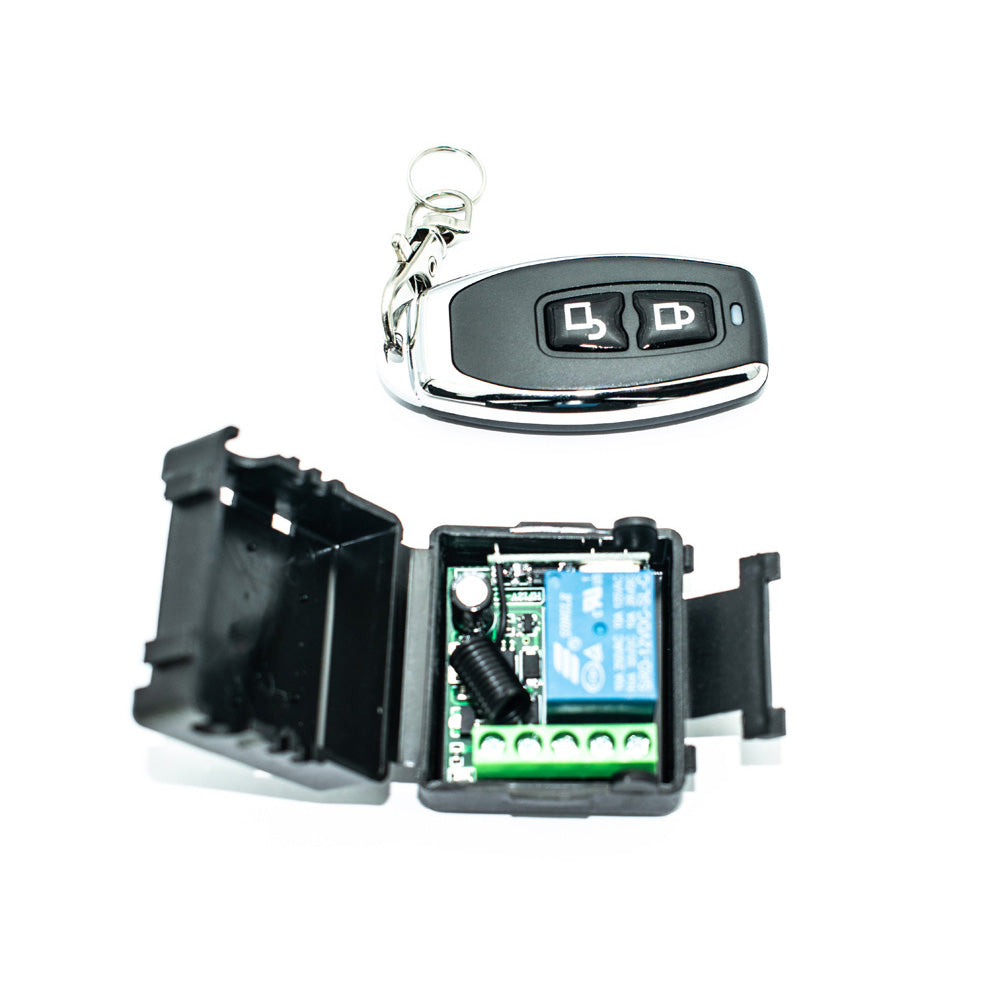

Wireless relay module using a remote control to switch a relay using a remote. It can be used as a Single channel wireless switch.
Applications: Garage Door, Household Electrical Appliances, RGB lights
Stable performance and strong to resist interference, not obstructed by walls and furniture!
Reference distance: 10 Meter (This is the theory distance in an open environment without interference, practical application due to the interference environment and decreased)
Characteristic: Double control(wall switch function and control function),safety(the shell applies to the fire-retardant material),easy installation(just wire connection)
- RF Receiver Module
- RF Transmitter (Remote)
- Plastic Case for Receiver
|Number of Channels||1 (One)|
|Operating Voltage||12V DC|
|RF Frequency||433 MHz|
|Receiver Sensitivity||>97 dBm|
|Dimension (LxWxH)||35x30x16.6 mm|
|Support remote control type||Fixed code, learning code|
QIACHIP's RF Transmitter Remote and RF Receiver Relay Switch Pair are used to provide remote access of appliances to the user within a range of 50 meters line of sight. You can use it to control garage doors, lights, fans, etc. This device is excellent for wireless communication over a short distance. Read more
