Description
- Saves space due to the small design
- Screw connection with tension sleeve
- Maximum contact force ensures a low-temperature rise
- Connection in accordance with EN-VDE Standard.

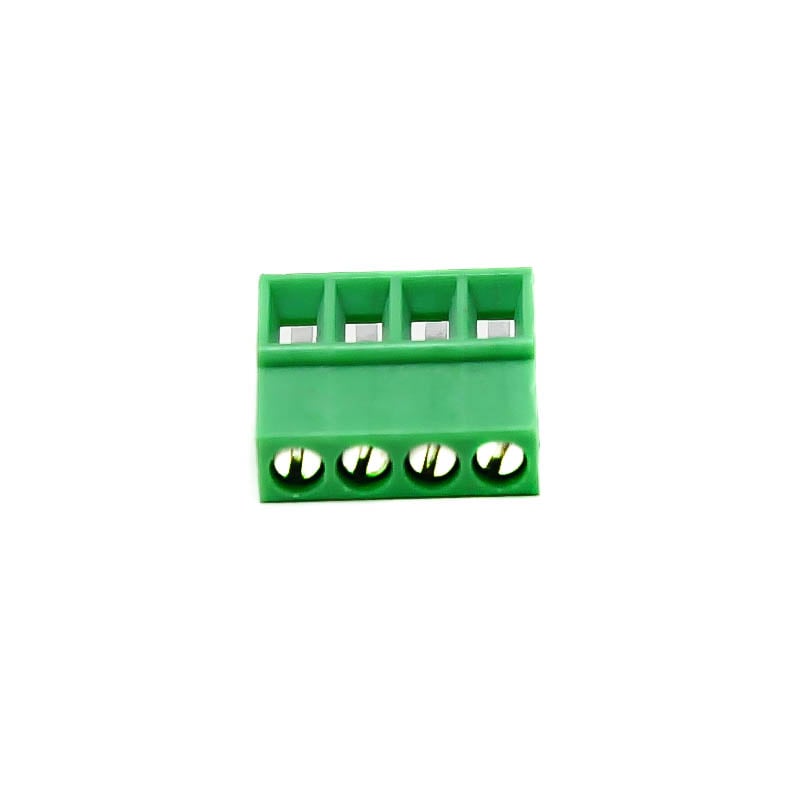

| Item Type |
PCB Terminal Block |
|---|---|
| Rated Current (A) |
6 |
| Rated Voltage (V): |
320 |
| Allowed Wire Size (AWG): |
22 ~ 18 |
| No. of Contacts |
4 |
| Mounting Type |
Through Hole |
| Pin Spacing (mm) |
2.54 |
| Material: |
Metal and plastic |
| Length (mm): |
10 |
| Width (mm): |
6 |
| Height (mm): |
12 |
| Weight (g): |
1 (approx) (each) |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 6 × 4 × 1 cm |
