Description

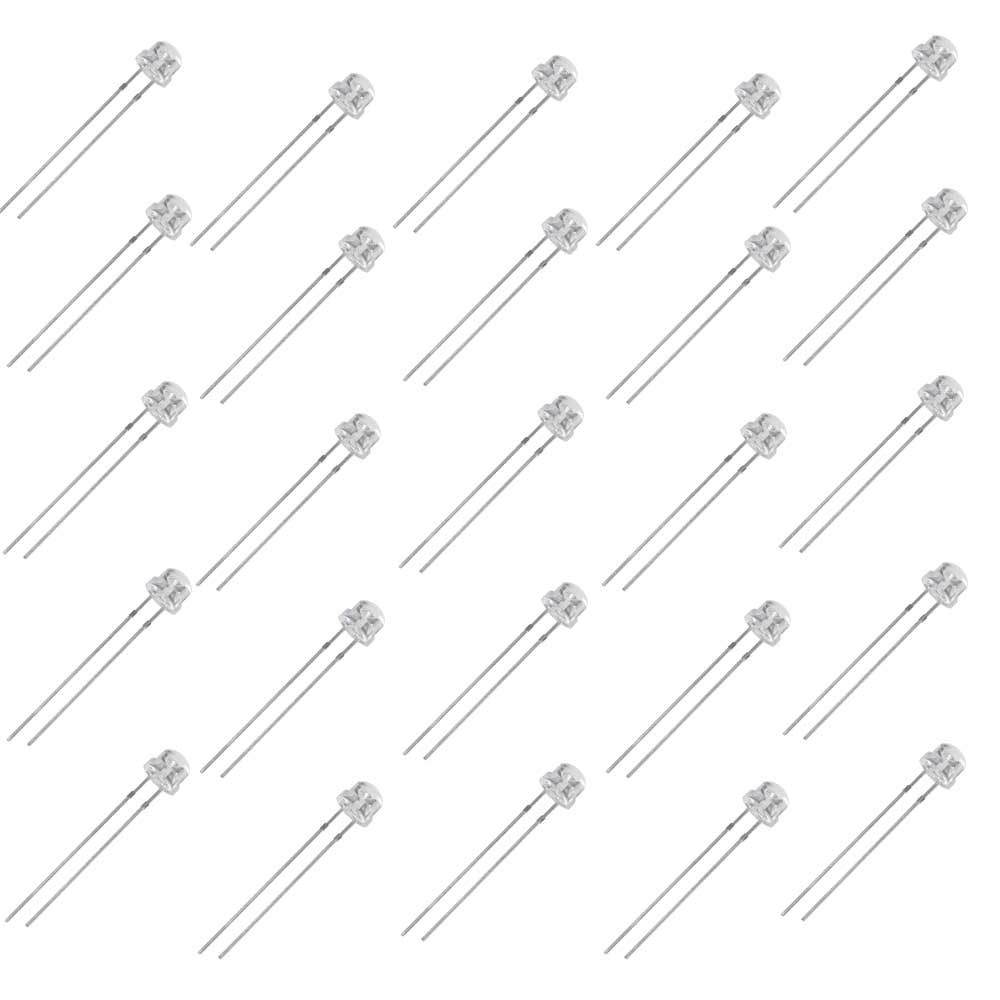

A Straw Hat LED features a special lens that allows it to scatter light similar to an incandescent light bulb. A basic LED emits light from a relatively small region, usually less than 45 degrees. The light from a Straw Hat LED is projected at a significantly broader viewing angle, generally around 120 degrees. Its Forward voltage is 2.8 to 3.4V and it is a Through Hole LED. This is a cool bright led with a colour temperature (CCT) ranging from 7000 to 9000K. These LEDs are used for general-purpose in electronic circuits, modules, devices, indicator lights, light Sources, and many other devices. These LEDs have two terminals Anode(+) and Cathode(-).
Because of the broader viewing angle, the emitted light is distributed over a larger region, avoiding the need for external lens designs.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
Positive terminal of LED(the big leg of the LED ) |
|
Cathode |
Negative terminal of LED(the small leg of the LED) |
Specifications
| Brand | NSEE |
| Product | 5mm Clear Cool White LED |
| Colour | White |
| Forward Voltage | 2.8-3.4V |
| Colour Temperature | 7000-9000K |
| Mounting Type | Through Hole |
| Lens Colour | Clear |
| No. of Pins | 2 |
| Diameter | 4.8mm |
| Power | 0.25w |
| MCD | 1200-1600mcd |
| Quantity | 1Pcs |
| Country of Origin | China |
