Description

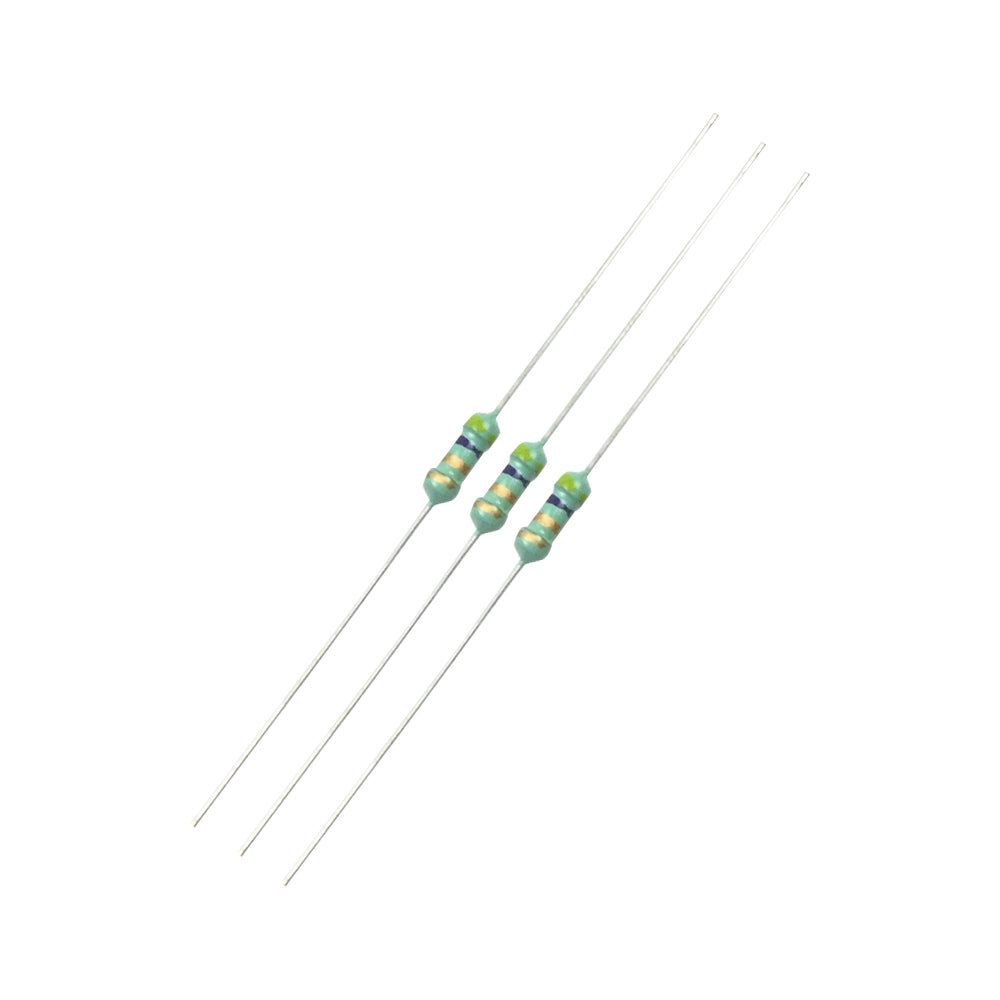

These are Carbon Film resistors with a value of 4.7 ohm 1/4W and a tolerance of ±5%. These Axial resistors are cylindrical in shape with copper-plated steel leads extending from each end. Carbon Film Resistors limit the flow of electric current using Carbon Film. The printed colour code rings, which are Yellow, Violet, Gold, and Gold for these 4.7E resistors, make it easy to identify the value of these resistors. A through-hole resistor is a type of resistor that is designed to be mounted on a printed circuit board (PCB) using through-hole technology. Through-hole resistors have leads (also known as pins) that extend through holes in the PCB, and the leads are soldered to the copper traces on the opposite side of the board to create a secure electrical connection. resistors are used in various electronic circuits for current limiting, voltage division, biasing, and many other purposes.
Features:
- It has two pins
- Its mounting style is Through a Hole
- Its Power is 1/4W
- Its tolerance is 5%
| Specifications | |
|---|---|
| No. Of Terminals | 2 |
| Resistance | 4.7 Ohm |
| Tolerance | 5% |
| Mounting Type | Through hole |
| Type | Resistor |
| Power | 1/4W |
