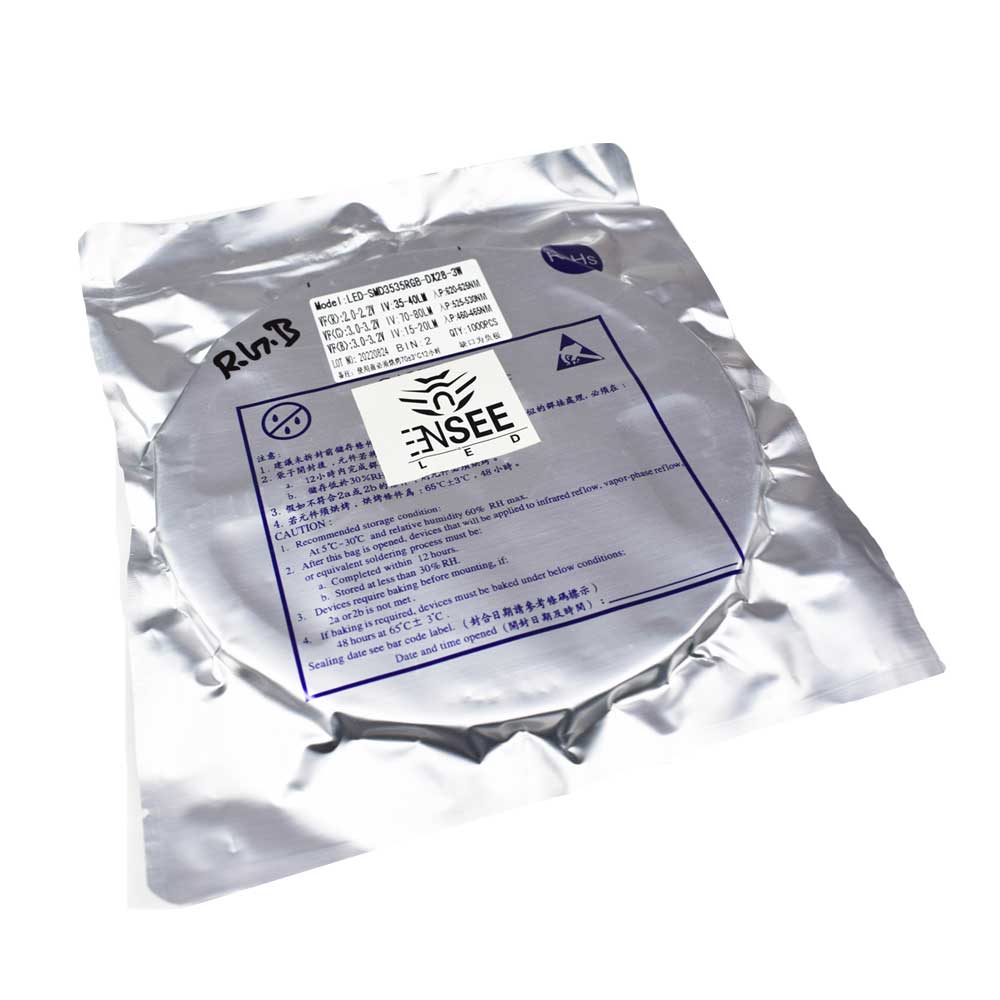

Description
This is a High-Quality RGB Colour SMD LED in a 3535 Package. These LEDs consume low power and generally produce a wide angle of light disbursement which can be narrowed through the use of external lenses. The Forward Voltage of Red is 2.0-2.2 volts, Green is 3.0-3.2 volts and the Blue is 3.0-3.2 volts. SMD LEDs are substantially smaller than lead frame-type components, they can be used on smaller boards, with higher packing density, less storage area, and smaller equipment. The most common application of these LEDs is as Home and Office Lighting Products, etc.
Specifications
| Brand | ENSEE |
|
Product |
3535 RGB LED |
| Led Shape |
Square |
| Power | 3W |
| Colour | RED, GREEN, BLUE |
|
(R) Forward Voltage(VF) |
2.0 - 2.2 V |
| (G) Forward Voltage(VF) | 3.0-3.2 V |
|
(B) Forward Voltage(VF) |
3.0-3.2 V |
|
(R) Lumens |
35-40 LM |
|
(G) Lumens |
70-80 LM |
|
(B) Lumens |
15-20 LM |
|
(R) Wavelength |
620-625nm |
|
(G) Wavelength |
525-530nm |
|
(B) Wavelength |
460-465nm |
|
Mounting |
SMD |
| Dimensions(LxB) | 3.5mm x 3.5mm |
| Quantity | Pack of 1Pcs in Package |
| Country of Origin | China |
