Description

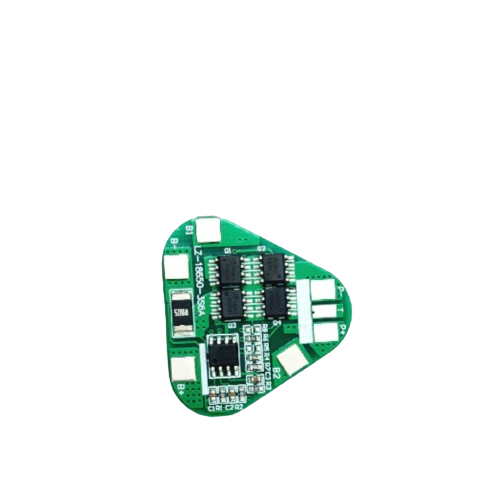

The 3S 6A Lithium Battery Protection BMS Module is a crucial component for managing the charging and discharging of 3-cell lithium battery packs. With a 6A current rating, it ensures safe operation by monitoring voltage levels, balancing cells, and providing overcharge, over-discharge, and short-circuit protection. Its compact design makes it ideal for various portable electronics applications.
Features:
- Charging Voltage: 12.6V-13V
- Overcharge Voltage Range: 4.25V-4.35V ± 0.05V
- Overpressure Voltage Range: 2.3V-3.0V ± 0.05V
- Upper Limit Operating Current: 5A-6A
- Upper Limit Instantaneous Current: 10A
- Quiescent Current: less than 30uA
- Internal Resistance: less than 45mohm
- Effective Life: more than 50,000 hours
- Operating Temperature: -40- +50 degrees
- Storage Conditions: -40- +80 degrees3S 11.1V 12.6V 6A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery)
- Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, a polymer lithium battery)
- Continuous discharge current (upper limit): 10A (if the cooling environment is not good, please reduce the load current use)
- Continuous charge current (upper limit): 6A.
