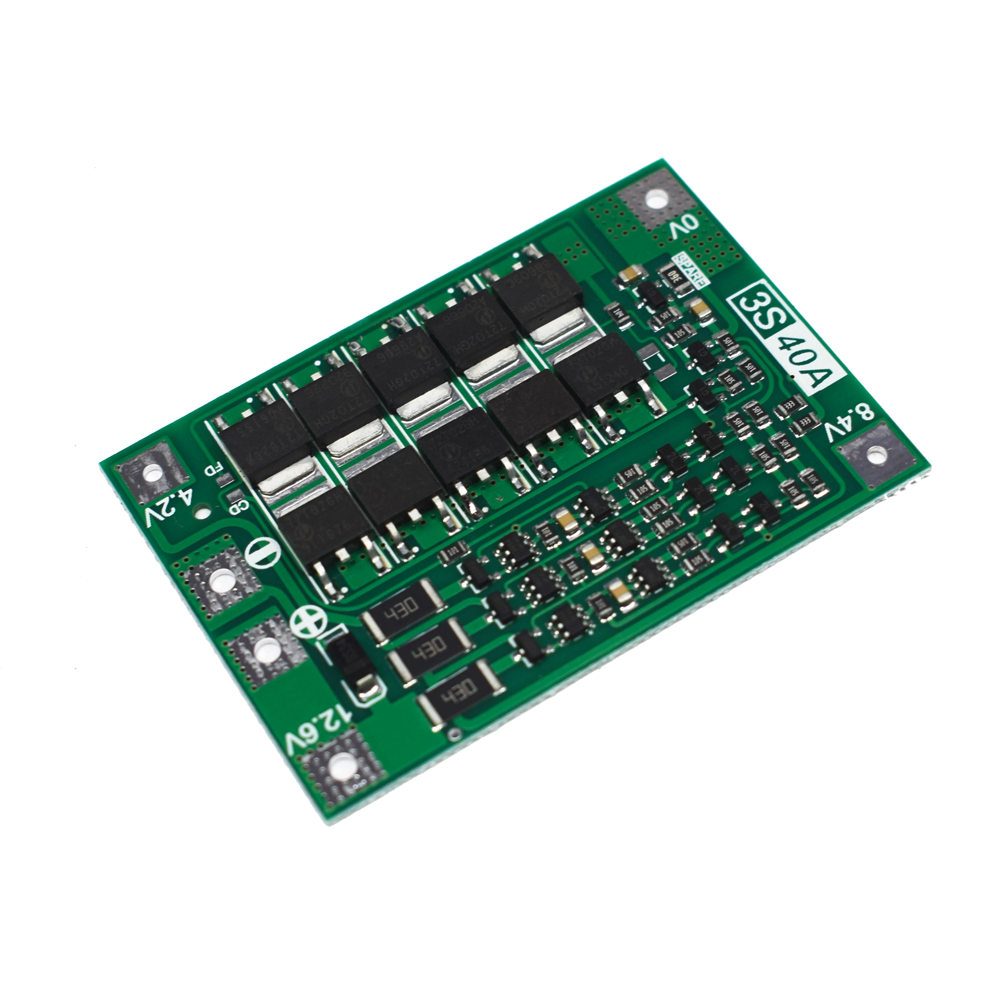

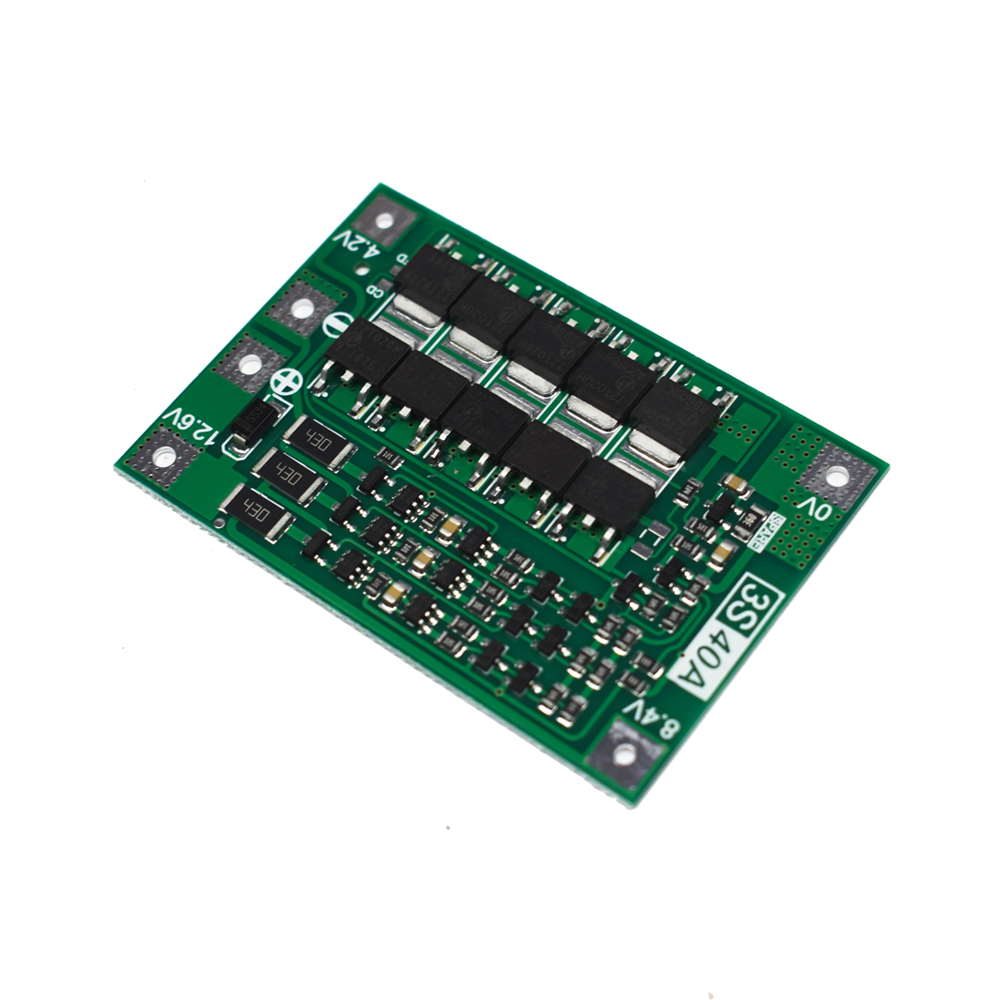

3S 40A 18650 Lithium Ion BMS for 11.1V Battery

Save 19%
Sold By: HatchnHackSKU: A01-06

Price:
Sale price₹ 162.00 Regular price₹ 201.00

Tax included Shipping calculated at checkout

Out of stock

Description

The 3 Series 40A 18650 Lithium Battery Protection Board 11.1V, 12.6V with Balance for Drill Motor Lipo Cell Module has an integrated 10 low load resistance MOS tube and a recovery function-AUTO Recovery.

For electric drill/sprayer/LED lights/low power inverter, it delivers a continuous discharge of 40A, 100mA balanced current. (If the cooling environment is poor, reduce the current load utilization)

The nominal voltage of 3.6V, 3.7V lithium battery (including 18650, 26650, a polymer lithium battery) with charging voltage ranging from 16.8V to 18.1V. With a continuous charging current of (maximum limit): 20A, the board runs smoothly. The balanced version is suited for beginning currents of less than 80A and power of less than 135W. (with balance).

Specification
Charging Voltage 12.6V DC CC/CV
Balance Voltage for Single Cell 4.2V
Max Continuous Charge Current 20A
Max Continuous Discharge Current 40A
Overcharge Detection Voltage 4.25V
Overcharge Release Voltage 4.15V
Over-Discharge Detection Voltage 2.5V
Over-Discharge Release Voltage 3.0V
Over-Current Detection Current 40A
Dimensions 41.6x54.8x3.4mm
External Short Circuit Detection Yes
Automatic Recovery on the release of a fault condition Yes
