Description

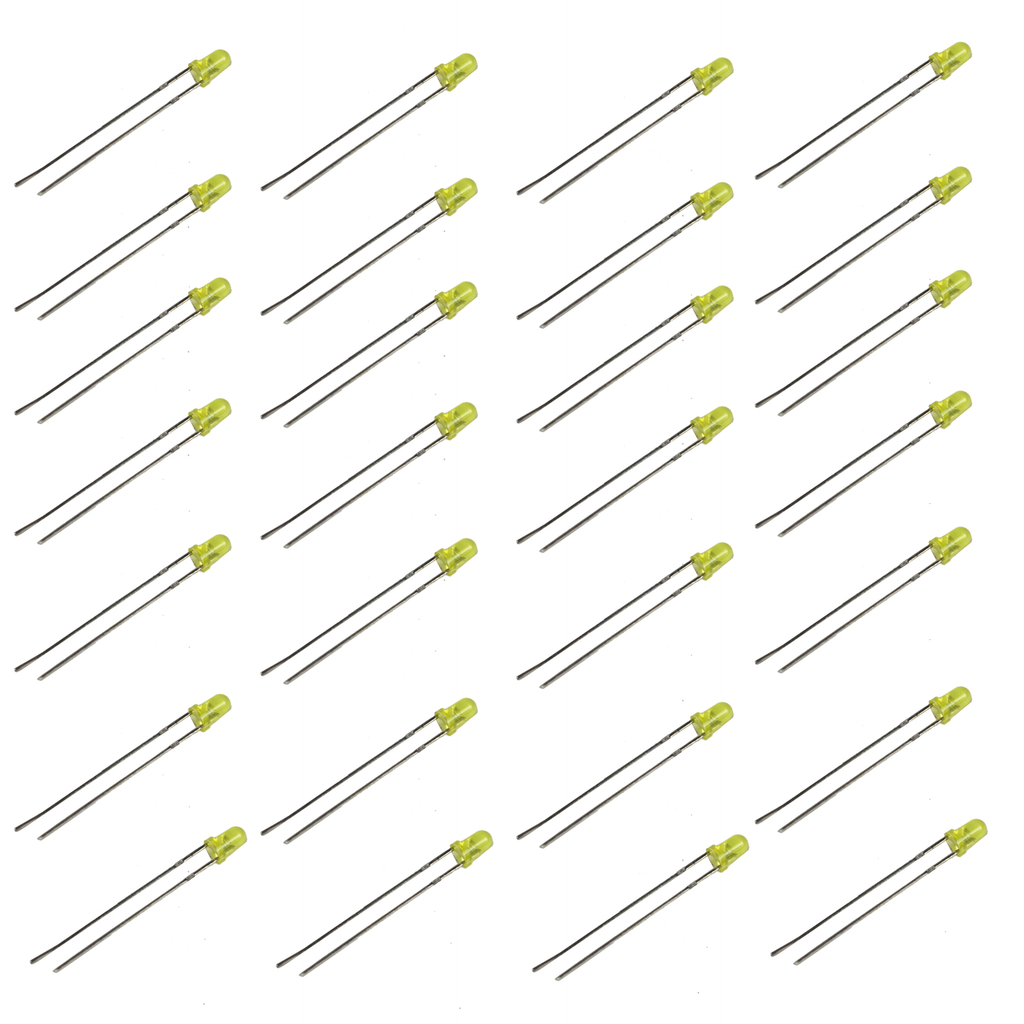

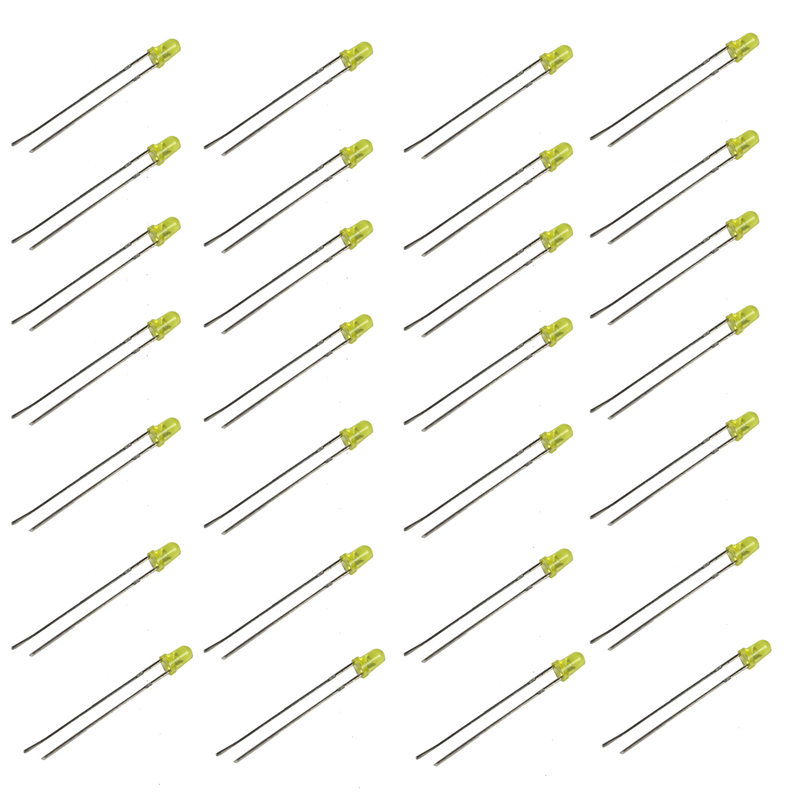

It is a general-purpose 3mm Yellow Colour LED, Its Forward voltage is 1.8 to 2.4V and it is a Through Hole LED. These LEDs are used for general-purpose in electronic circuits, modules, devices, indicator lights, and many other devices. These LEDs have two terminals Anode(+) and Cathode(-). It is a low power consumption with a wide viewing angle Ideal for backlight and indicator. The most common application of these LEDs is as indicator lights, pin status, blinky display, etc.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
Positive terminal of LED(the big leg of the LED ) |
|
Cathode |
Negative terminal of LED(the small leg of the LED) |
Specifications
| Brand | NSEE |
| Product | 3mm Round Yellow LED |
| Wavelength | 587-593 nm |
| LED Colour | Yellow |
| Lens Colour | Yellow |
| Forward Voltage | 1.8 - 2.4V |
| LED Type | Through Hole |
| Application | General lighting, Indication Purpose |
| Diameter | 3mm |
| No. of Pins | 02 |
| MCD | 300-400 mcd |
| Quantity | 1Pcs |
| Country of Origin | China |
