Description

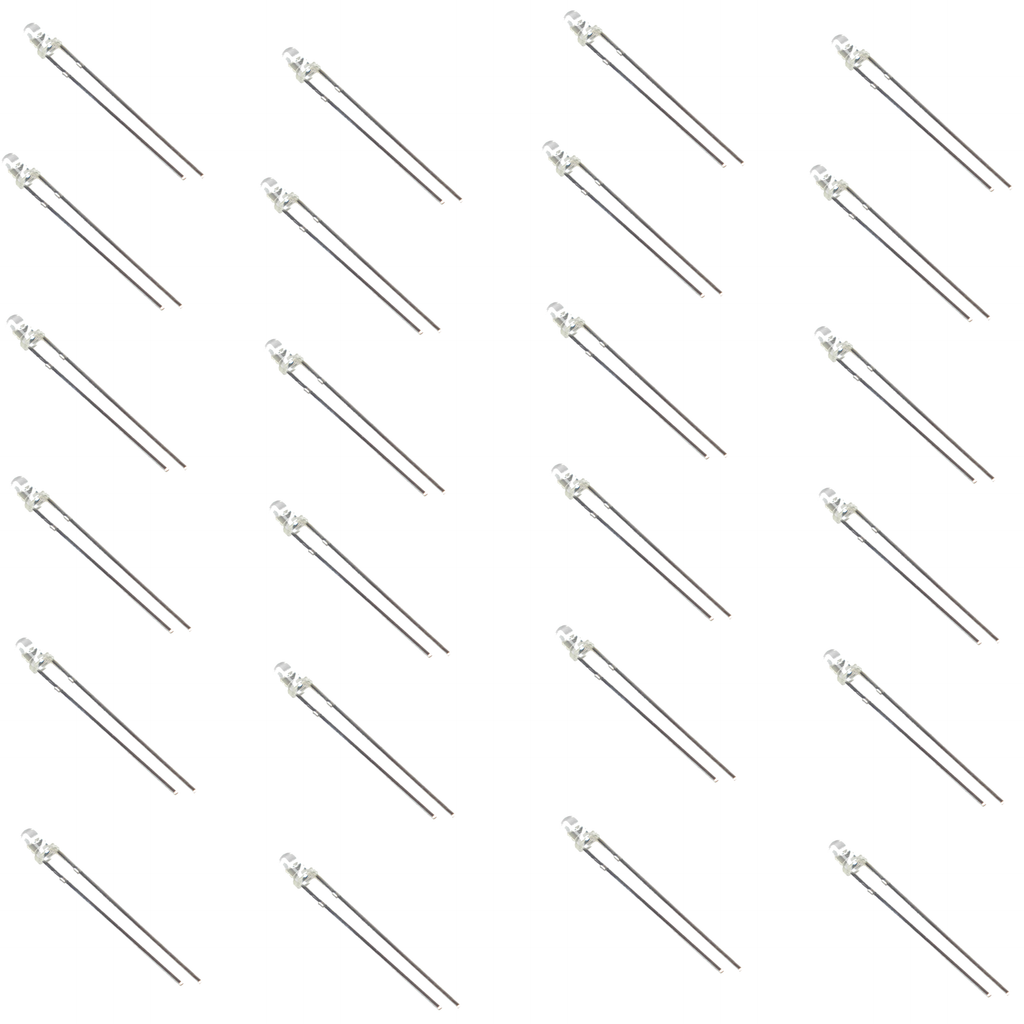

It is a general-purpose 3mm Clear Cool White Colour LED, Its Forward voltage is 2.8 to 3.4V and it is a Through Hole LED. This is a cool bright led with a colour temperature (CCT) ranging from 7000 to 9000K. These LEDs are used for general-purpose in electronic circuits, modules, devices, indicator lights, light Sources, and many other devices. These LEDs have two terminals Anode(+) and Cathode(-). It is a low power consumption with a wide viewing angle Ideal for backlight and source light. The most common application of these LEDs is as source lights, indication lights, etc.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
Positive terminal of LED(the big leg of the LED ) |
|
Cathode |
Negative terminal of LED(the small leg of the LED) |
Specifications
| Brand | ENSEE |
| Product | 3mm Cool White LED |
| Colour-Temperature(CCT) | 7000-9000K |
| LED Colour | White |
| Lens Colour | Clear |
| Forward Voltage | 2.8 - 3.4V |
| LED Type | Through Hole |
| Application | General lighting, Source light |
| Diameter | 3mm |
| No. of Pins | 02 |
| MCD | 3000-5000 mcd |
| Quantity | 1Pcs |
| Country of Origin | China |
