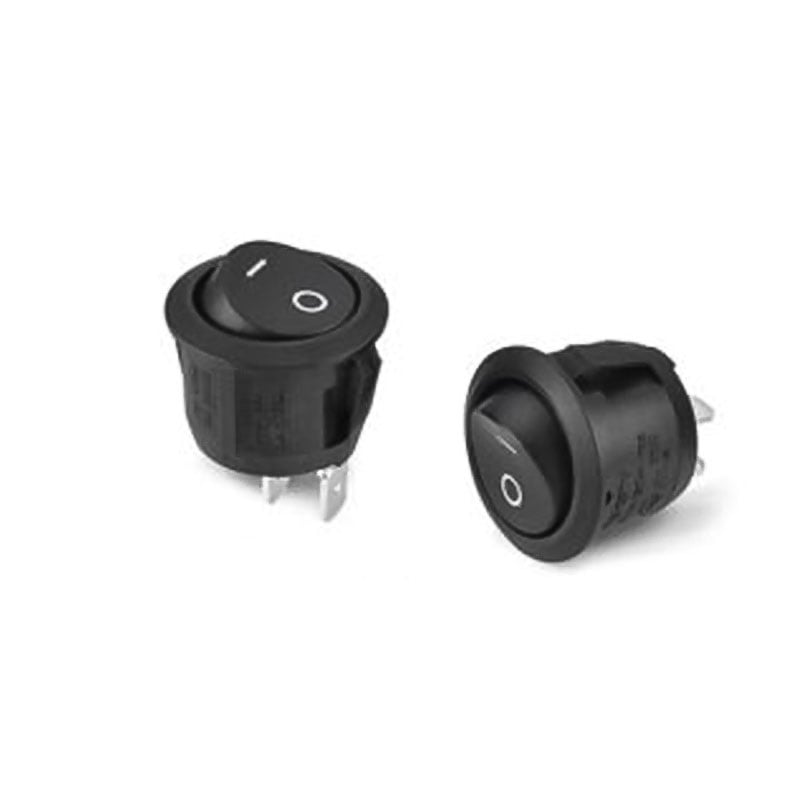

Description
- Rating: Max 3A up to 250VAC
- Toggle Mode: ON-OFF
- Structure: SPST
- Shape: Round
- Panel Cut-Out: 15 x 13 (Dia x Height) mm
- Overall Dimensions: 16.3 x 15 (D x H)
| Rating |
Max 3A up to 250V AC |
|---|---|
| Toggle Mode |
ON-OFF |
| Structure |
SPST |
| Actuator Shape |
Round |
| Panel Cut-Out |
15 x 13 mm (Dia x H) |
| Colour |
Black |
| Material |
Plastic & Metal |
| Switching Life |
50000-100000 Cycles |
| Contact Resistance |
50mΩ |
| Insulation Resistance |
≥100mΩ |
| Withstand Voltage |
1500Vac |
| Length (mm): |
16.3 |
| Height (mm): |
15 |
| Weight (g): |
3 (each) |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 4 × 3 × 2 cm |
