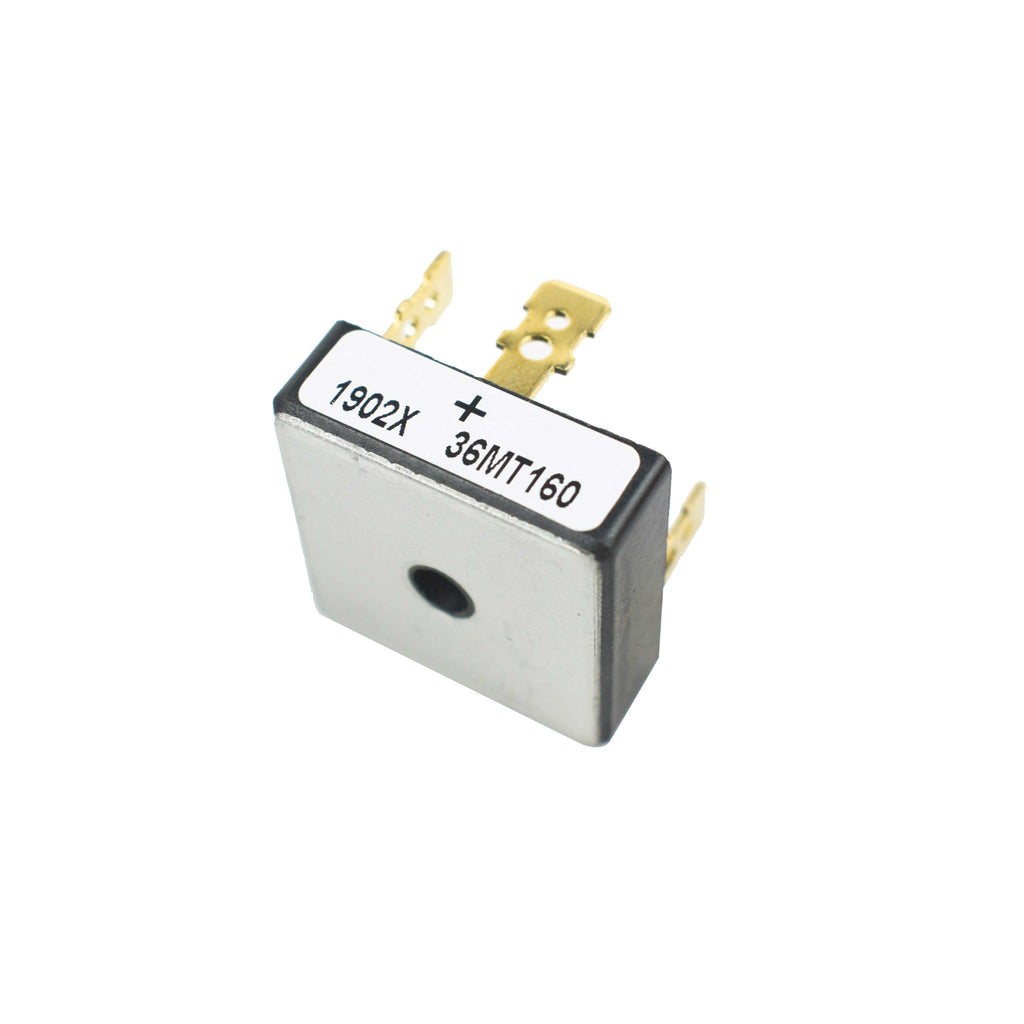

36MT160 1600V 35A Three Phase Bridge Rectifier

Save 19%
Sold By: HatchnHack

Price:
Sale price₹ 257.84 Regular price₹ 319.70

Tax included Shipping calculated at checkout

Out of stock

Description

The 36MT160  is a Three Phase Bridge Rectifier Diode. The maximum DC current that this IC can handle is 35A hence can be used for a broad range of applications. This IC has a reverse breakdown voltage of 1600V and a low forward voltage drop of 1.2V. It has high efficiency and a high surge current capability of 500A. If you are looking for a compact IC for rectification application this can be a good choice. This bridge rectifier is typically used in large UPS systems, electroplating, electro-refining and anodising plants, and large DC motor controllers.

Features

  • Universal, 3 way terminals: push-on, wrap around or solder
  • High thermal conductivity package, electrically insulated case
  • Center hole fixing
  • Excellent power/volume ratio
  • Terminal solder temperature: 235-260°C mx. time: 8-10 sec.
Specification
Model 36MT160
Type Bridge Rectifier Diode
Working Peak Reverse Voltage 1600 V
Average Forward Rectified Output Current 35A
Peak Reverse Current at 25°C 100µA
Operating and Storage Temperature Range -40°C TO 150°C
Quantity 50
Country of Origin China
