Description

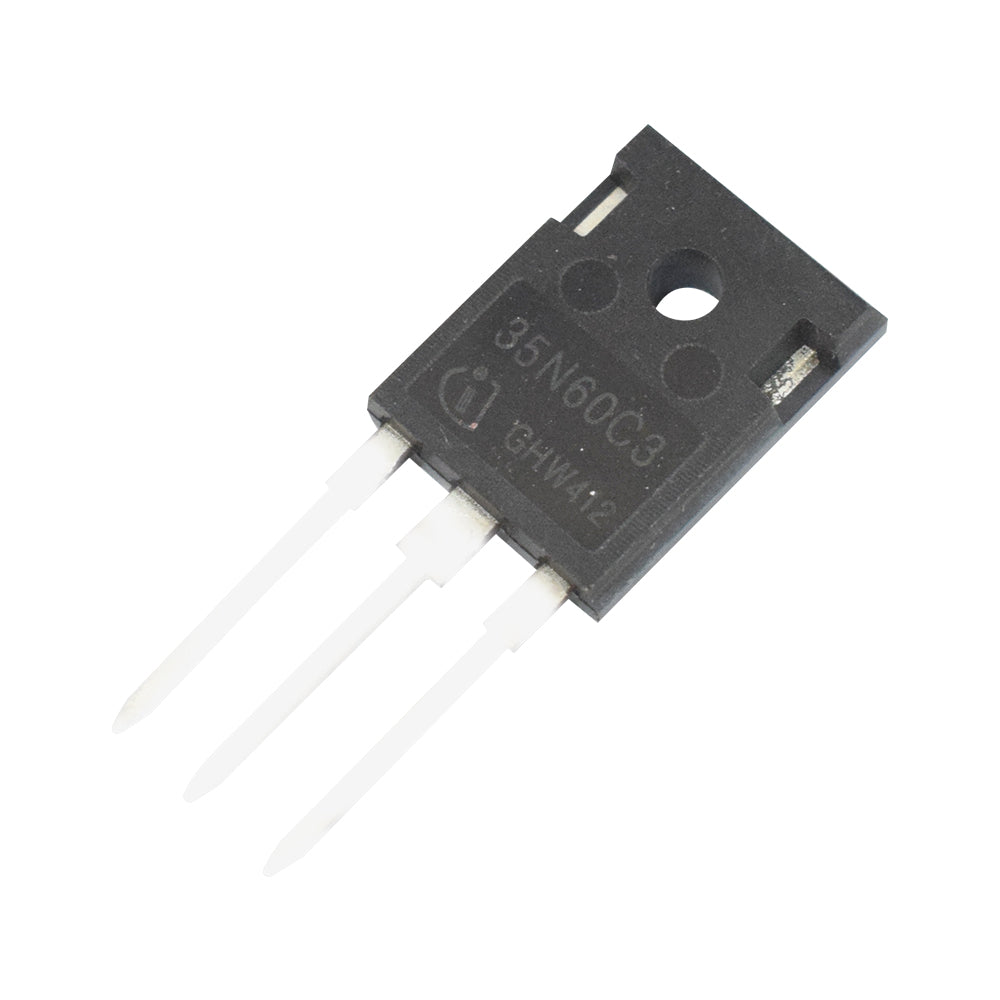

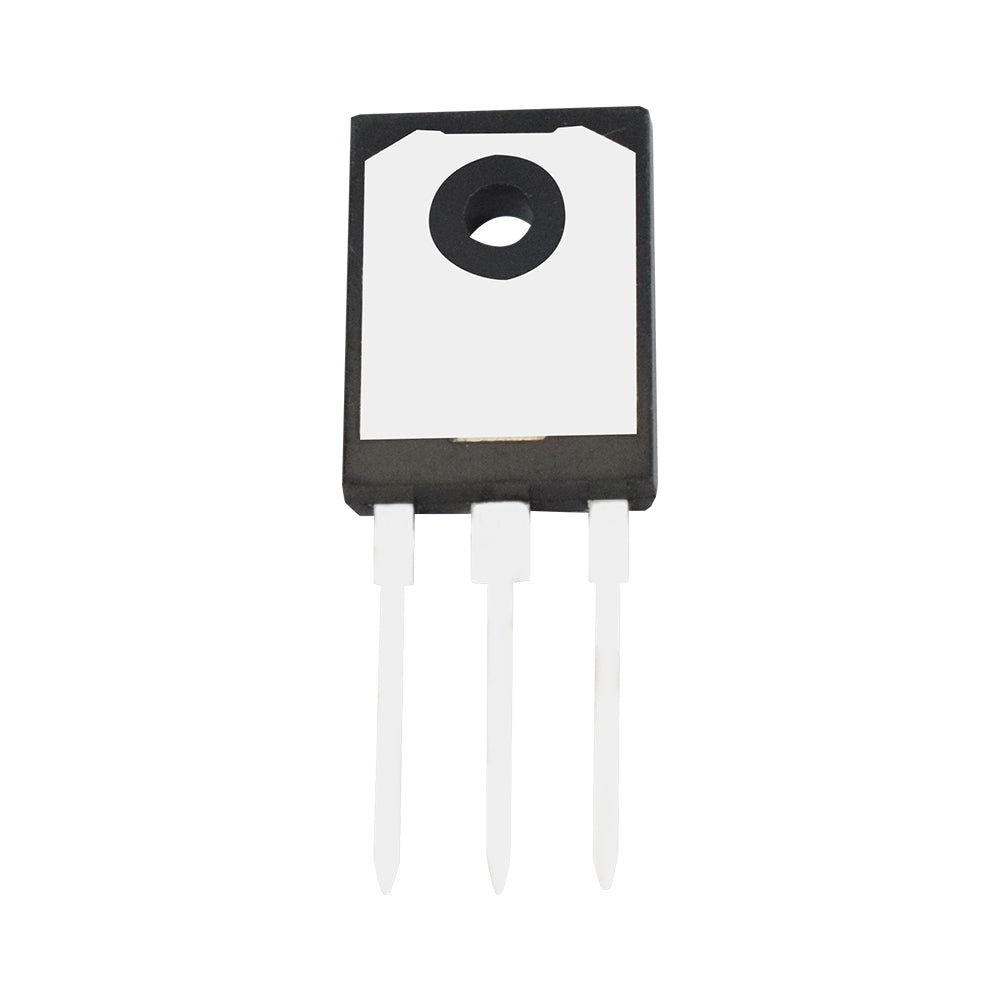

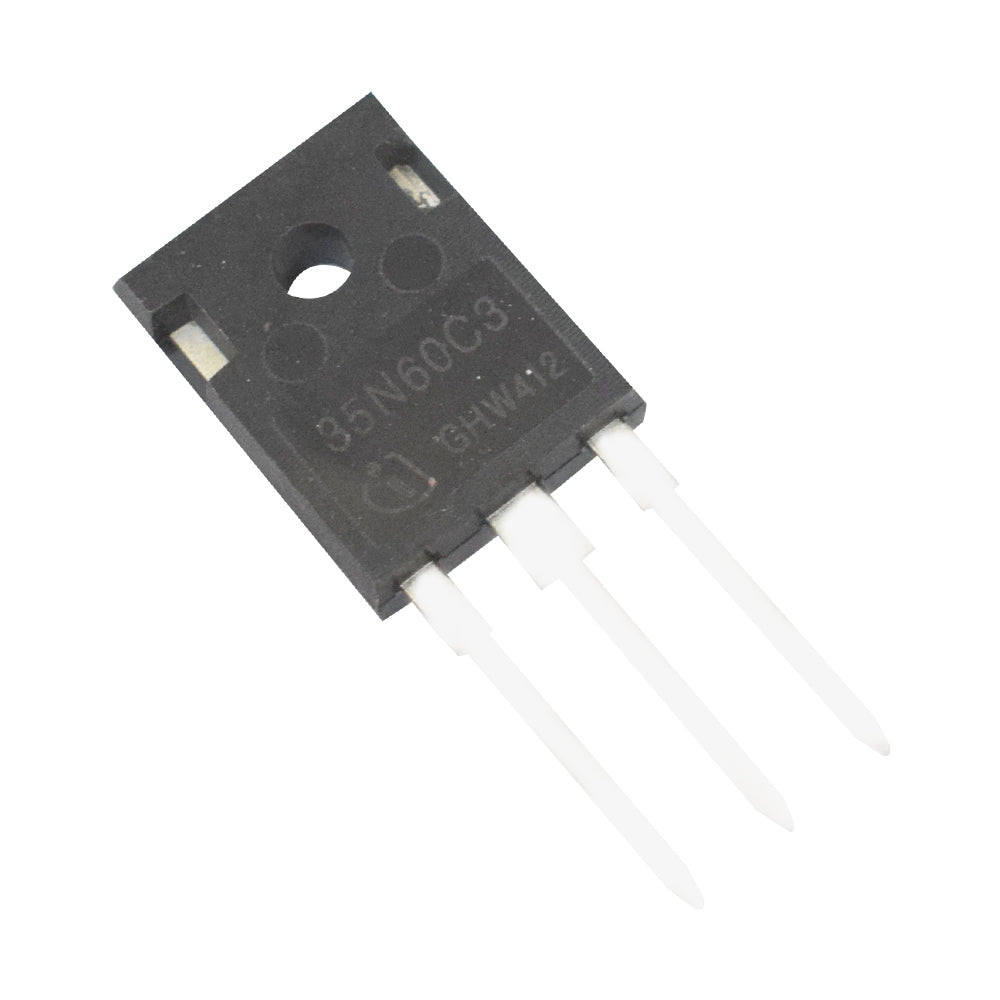

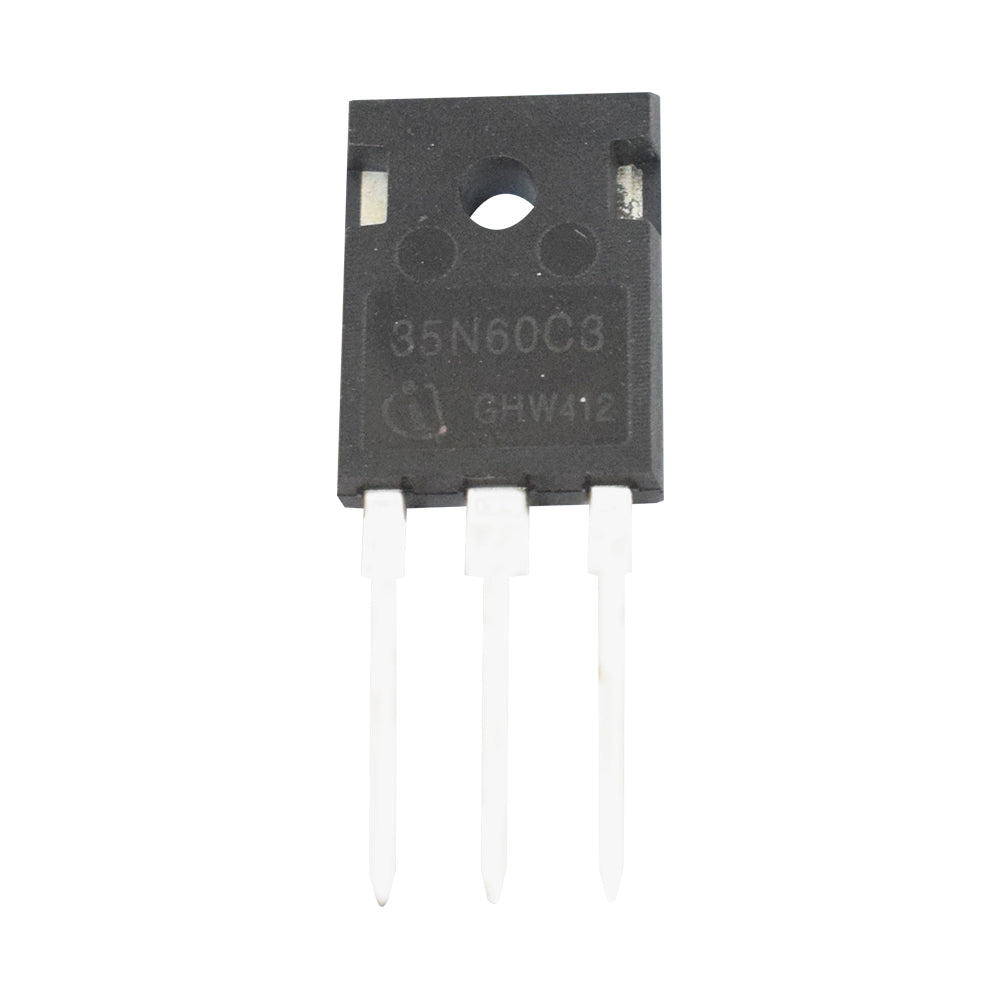

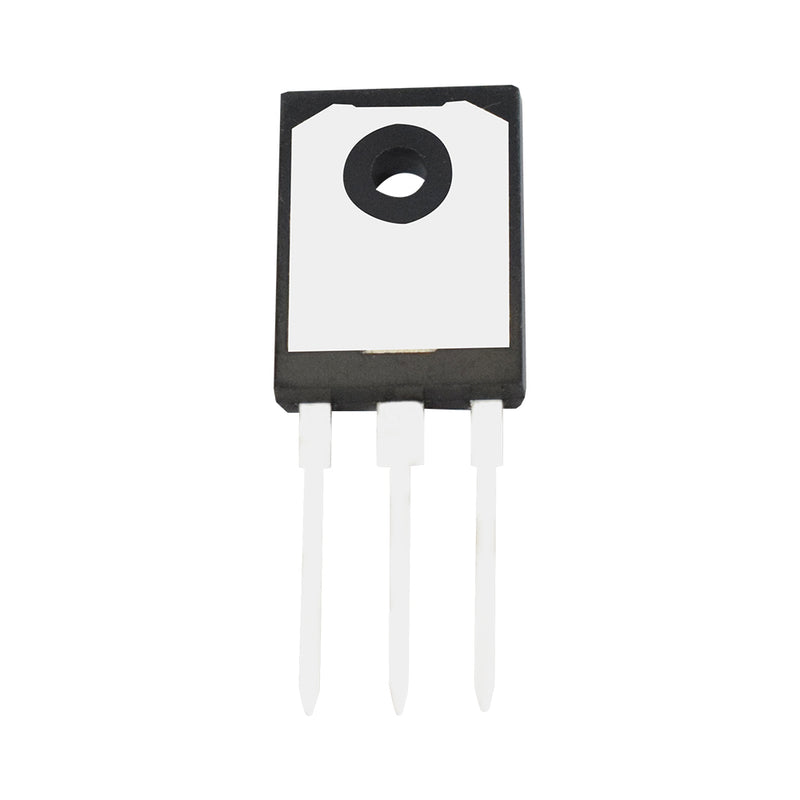

35N60C3 is a power transistor which is mainly used in power-switching applications. It's used for fast switching applications like SMPS, UPS, Inverter and other general switching applications. Its drain-source voltage is 650V, and its drain current is 34.6A.
Features
- High-speed switching
- Avalanche energy rated (UIS)
- New revolutionary high-voltage technology
- Ultra low gate charge
- Periodic avalanche rated
- Extreme dv/dT rated
- Ultra low effective capacitances
- Improved transconductance
Specification
| Model | 35N60C3 |
| Type | Power Transistor |
| Package | TO-247AC |
| VDS | 650V |
| Pulsed drain current (Id pulse) | 103A |
| Gate source voltage | 20V |
| Max. power dissipation (Pd) | 313W |
| Storage temperature range | -55~150 (degree C) |
| Country of Origin | China |
