Description

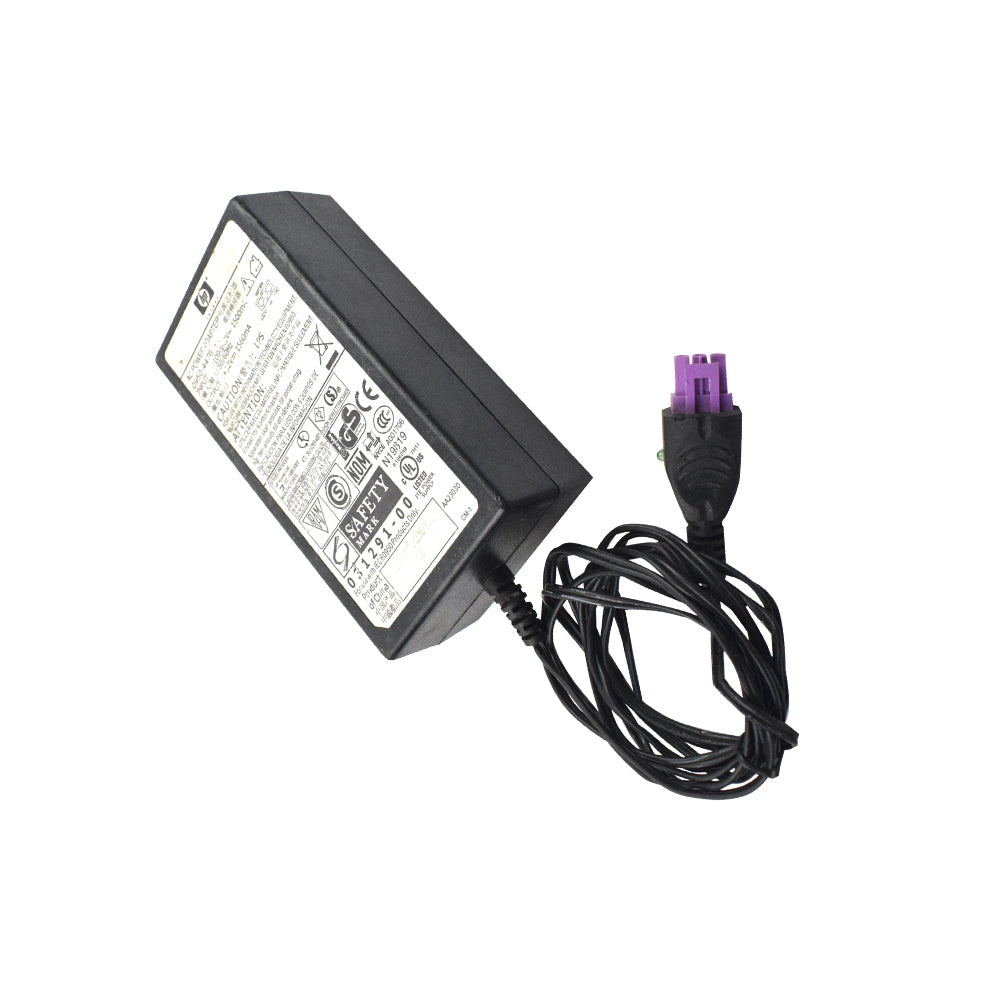

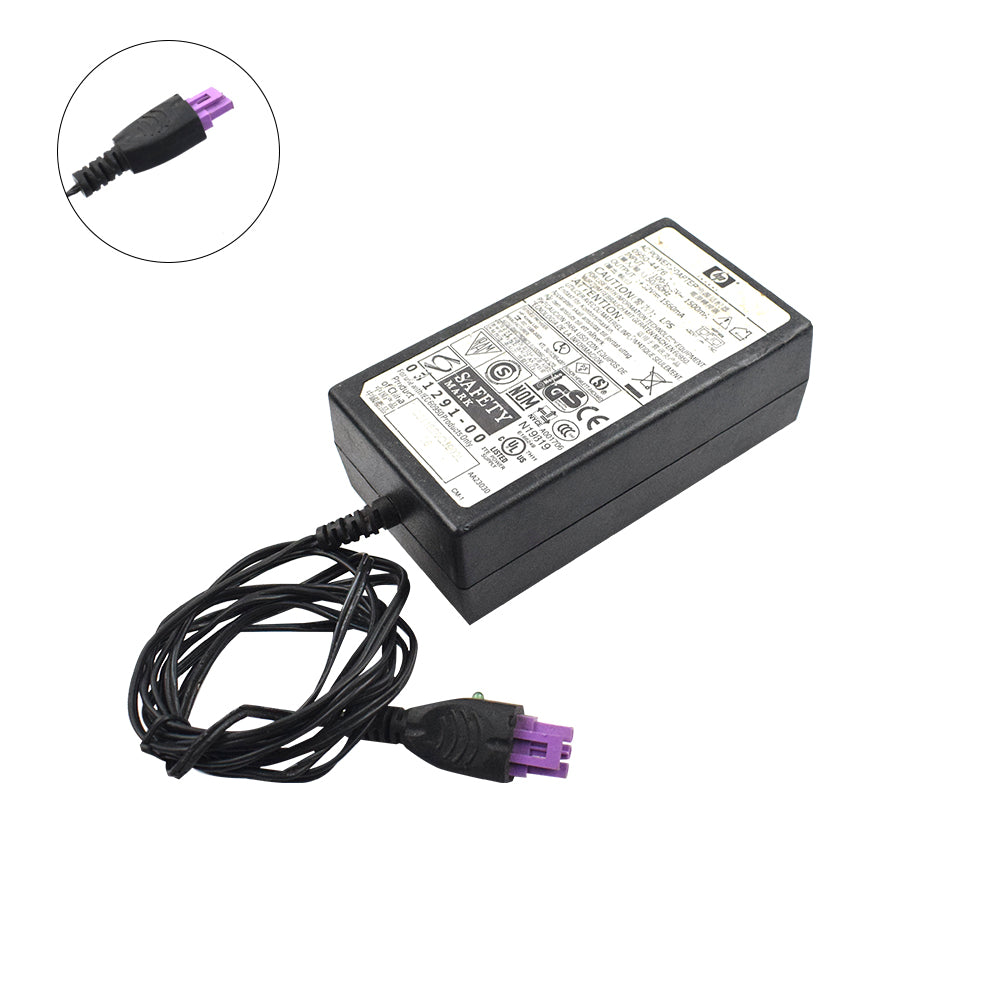

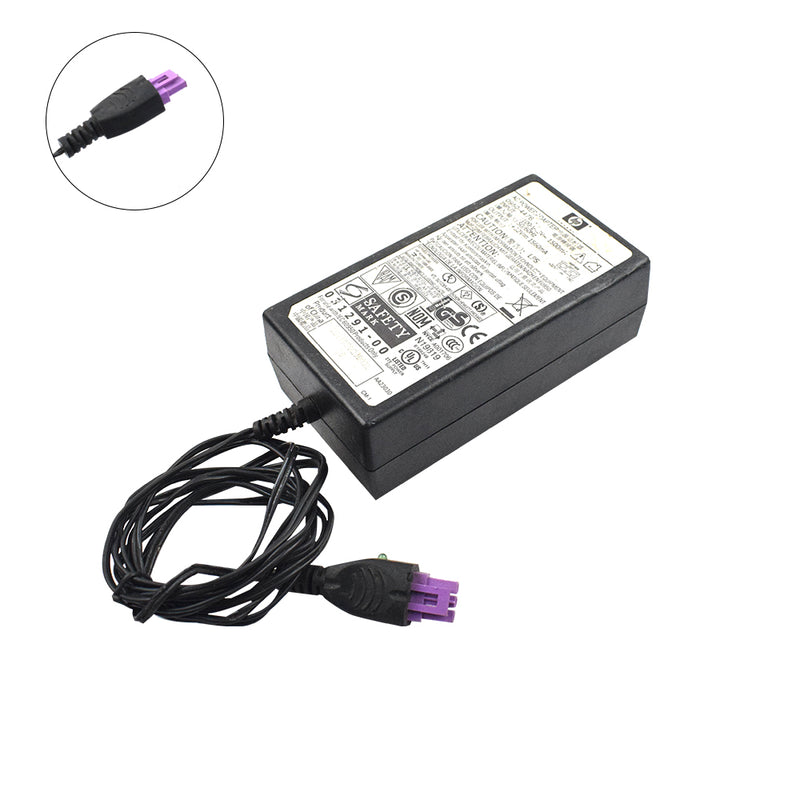

It is a 32V 1560mA AC-DC Power Supply Adapter. An AC adapter is an external power supply that converts alternating current (AC) from a wall outlet to a direct current (DC) needed by an electronic device. This is an AC-DC power adapter with a switched-mode power supply (SMPS) which converts 100-240V AC to 32V DC. It has a maximum current rating around 1560mA. The supply includes all forms of protections. It Commonly used in laptops Printers , PC Printer and thermal Printer.
Features:
- Highly efficient, compact, durable and long life.
- High-Reliability
- Short Circuit, Over Voltage & Over Current Protection
- Good quality SMPS Based Adapter
- Stabilized output, low ripple & low interference
- High Efficiency & low energy consumption
Specifications
| Product | 32V AC-DC Power Supply Adapter |
| Type | AC-DC Adapter |
| Input Voltage | 100V-240V AC |
| Frequency | 50/60Hz |
| Output Voltage | 32V DC |
| Output Current | 1560mA |
| Size | 117*64*40 mm |
| DC Output Cable Length | 2 meter |
| DC Port | 3-Pin DC Output Port |
| AC Socket Type | 3-Pin AC Socket Type B (UK TYPE) |
| Brand | Not Specified |
| Country of Origin | China |
