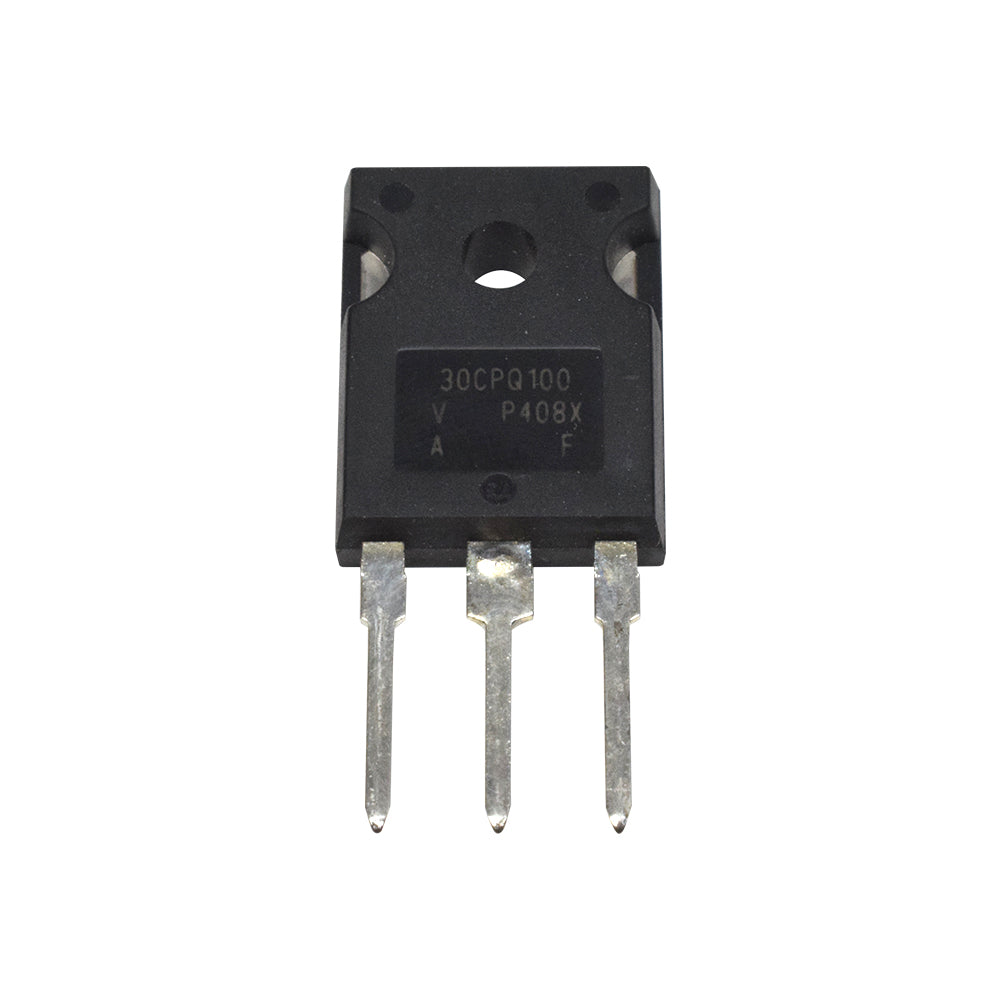

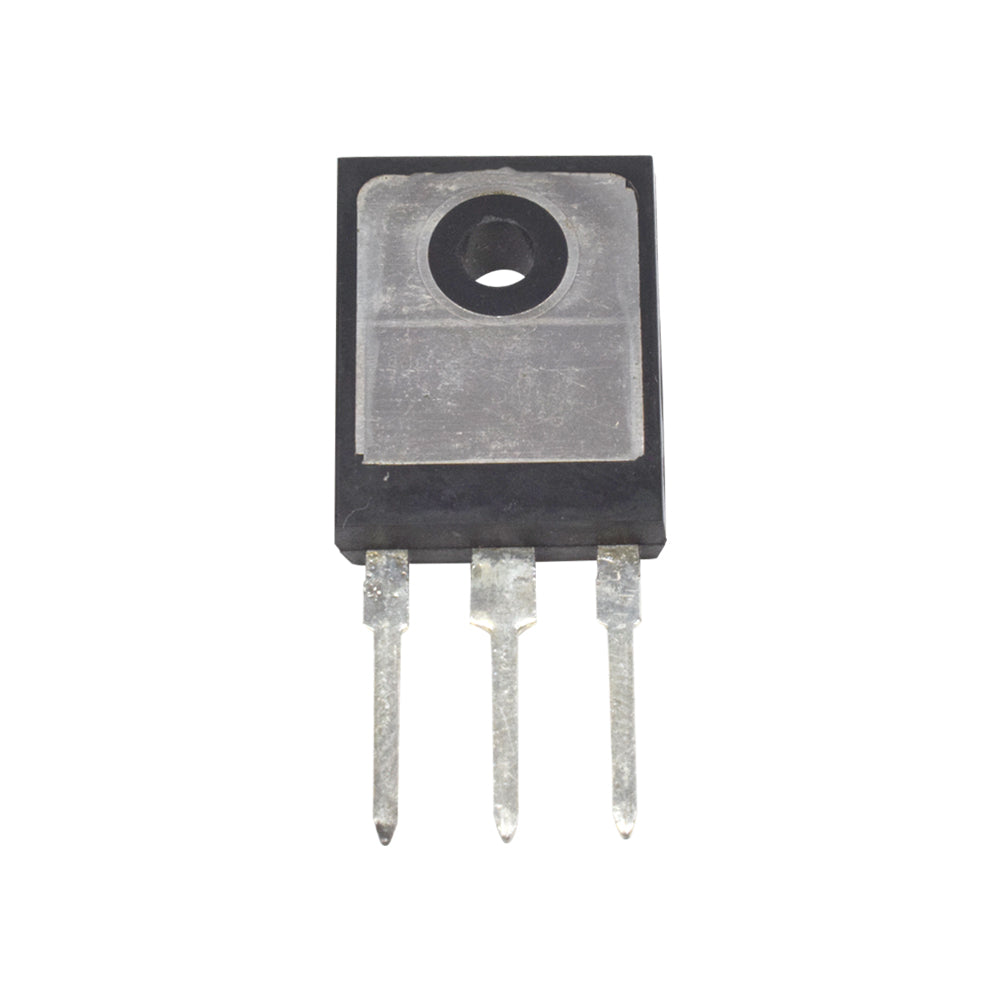

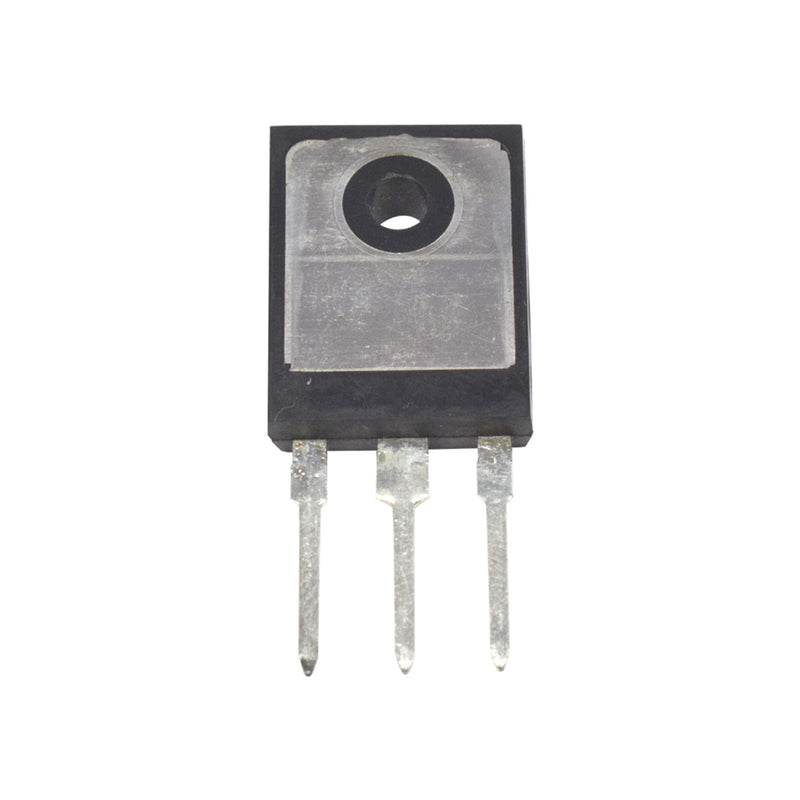

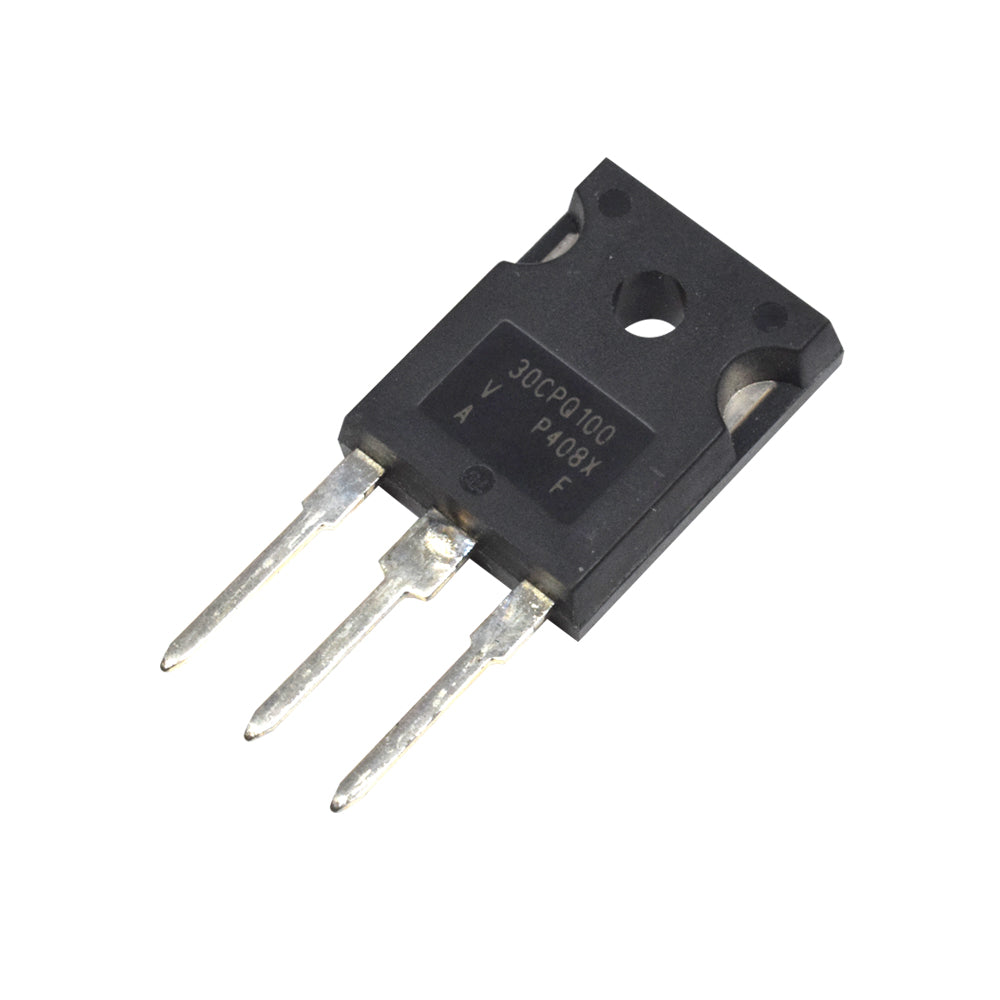

30CPQ100 30A Schottky Rectifier

Save 13%
Sold By: HatchnHackSKU: SD42

Sale price₹ 105.00 Regular price₹ 120.00

Tax included Shipping calculated at checkout

Min Qty: 10


30CPQ100  is a Schottky rectifier. Its primary purpose is to provide rectification, i.e., allow current to flow only easily along one specific direction. In this way, they are used in typical DC circuits to enable or block current or in AC circuits as part of wave shaping. It's maximum forward current is 30A. Schottky rectifiers have been developed to have minimal reverse leakage even at high temperatures. With its proprietary barrier technology, the junction temperature of 175° C may be reliably operated. Switching power supplies, converters, free-wheeling diodes, and reverse battery protection are typical applications.


  • Its junction temperature is 175-degree centigrade

  • It has a centre-tap package

  • High-purity, high-temperature epoxy encapsulation for
    enhanced mechanical strength and moisture resistance
  • Low forward voltage drop, High-frequency operation
  • Guard ring for enhanced ruggedness and long term

Model 30CPQ100
Type Schottky rectifier
Package TO-247AC
Current 30A
VRRM 80/100V
VF 0.67 V
DC reverse voltage 100V
Operating and Storage Temperature Range -55°C TO 150°C
Country of Origin China
