Description

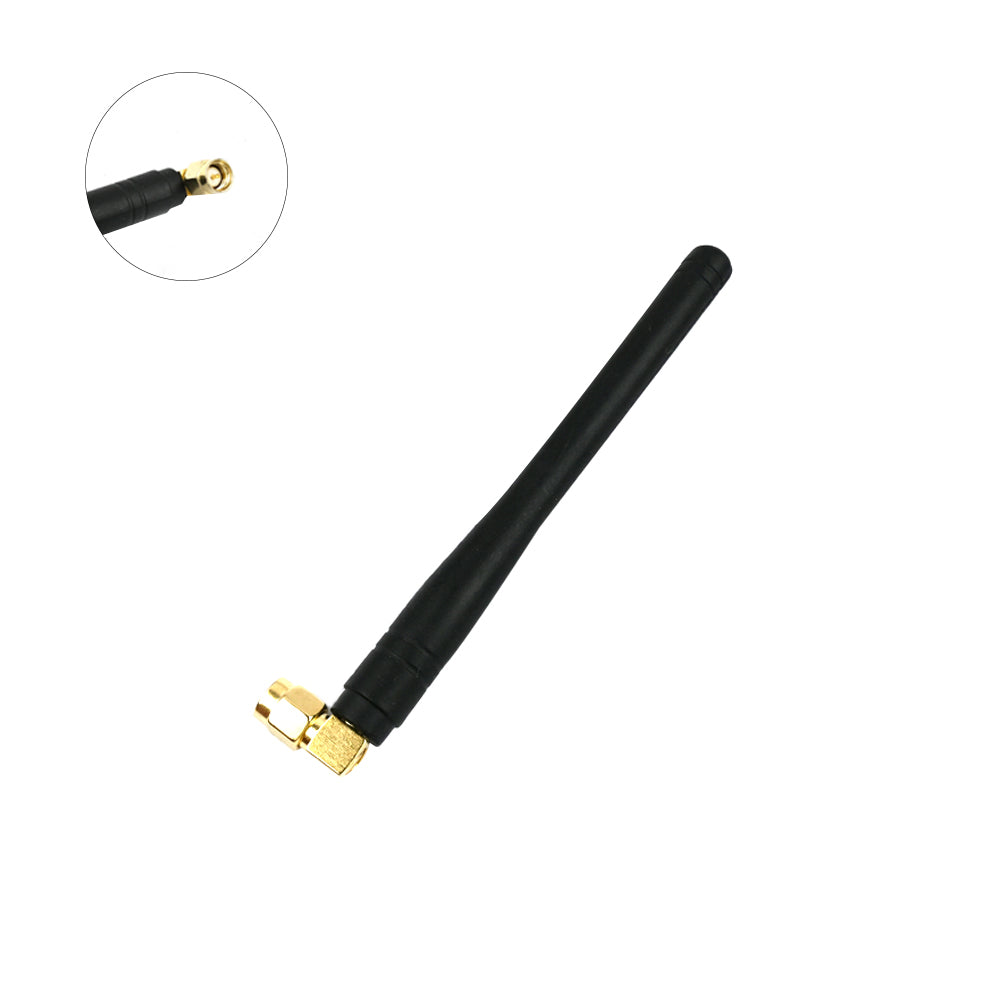

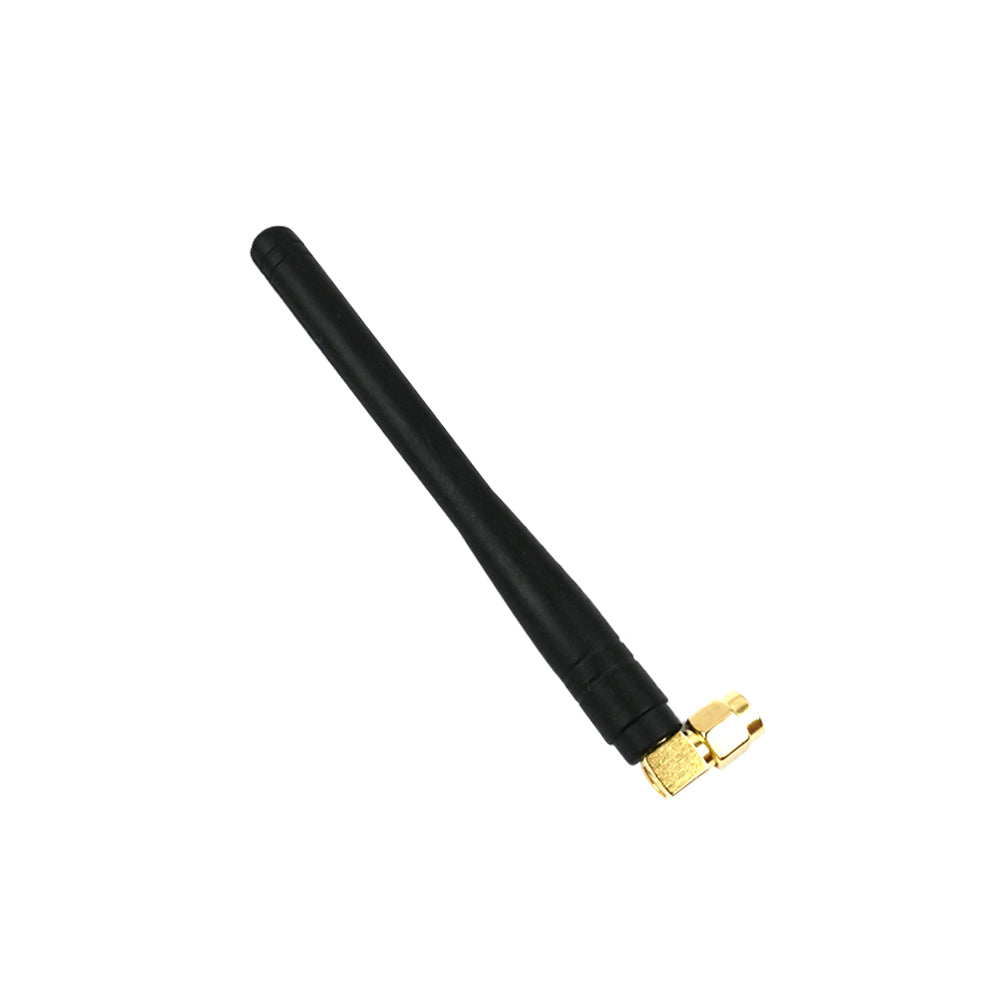

It's a 3Dbi SMA(m) RA antenna. This is a commonly used rubber duck- type GSM Antenna with a standard Right Angle SMA Male Connector. This is the antenna for GSM Modems. It is a small, high-quality, quad-band, standard SMA terminated, cellular antenna, which has a length of 2 inches.
Features
- Application: Wireless GSM communication
- Its connector type is Right angle SMA male
- Its polarization is vertical type
- It can be added to wireless USB adapter or router
Specification
| Product type | SMA(m) RA Antenna |
| Typical gain | 3Dbi |
| Frequency range | 900-1800Mhz |
| Bandwidth (MHz) | 10 |
| Input impedance | 50 Ohm |
| Maximum input power | 50 W |
| Dimensions | 10x100mm |
| Color | Black |
| Connector | SMA male , ID- 4.2mm |
| Country of Origin | China |
