Description

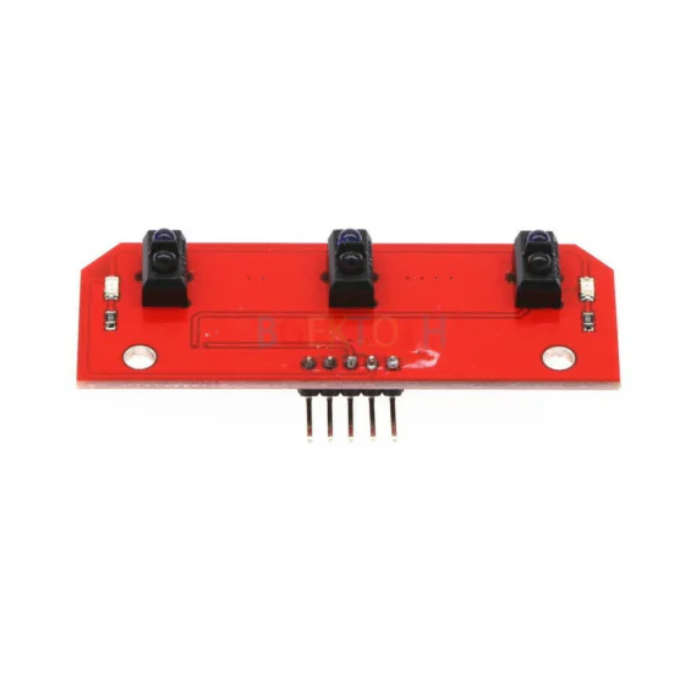

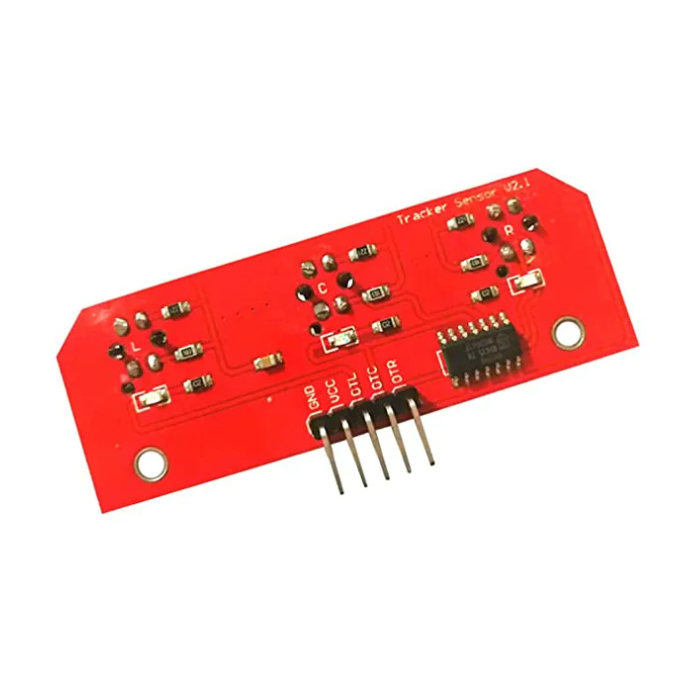

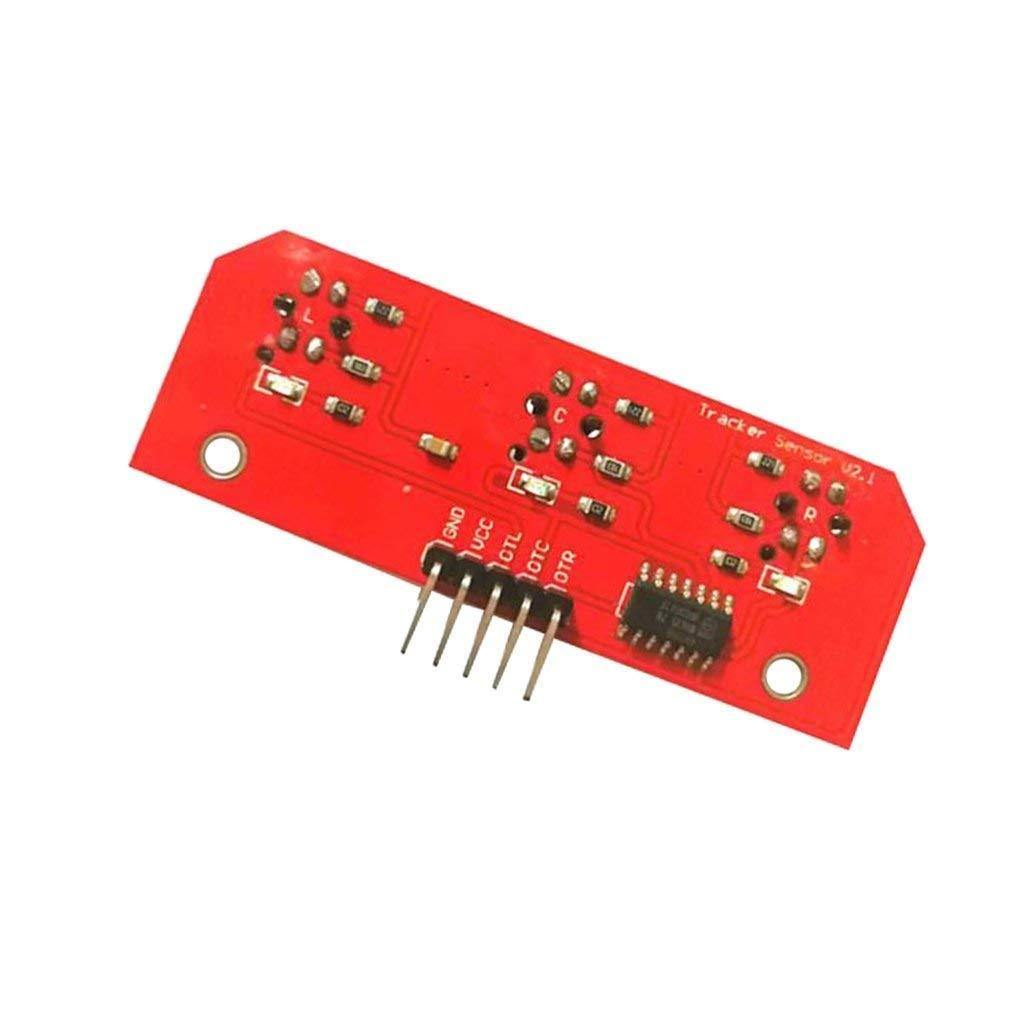

3 Channel IR Infrared CTRT5000 Line Detection Module
The 3 Channel IR Infrared CTRT5000 Line Detection Module uses Infrared to detect the line so it has anti-interference ability, visible light will not interfere with its operation. The TCRT5000 is a reflective sensor that includes an infrared emitter and phototransistor in a leaded package that blocks visible light. It has indicator LEDs on it, when tracing sensor senses a key signal, LED lights, otherwise off.
3 channel line-following sensor modules are necessary parts for making a robot. Adopt Infrared detection, high ability of anti-interference. Using the CTRT5000 sensor, high sensitivity, and stability. Fine workmanship, with indicator light. Come with bolt holes for easy installation. It has 3 TCRT5000 Infrared Line Tracking sensors with an onboard comparator, LED indicators, and other signal conditioning components, and yes it is Arduino-compatible!
Application:
- Line follower robot
- Obstacle detector robot
- Grid navigating robots
- Maze Solving Robot
- Home automation
- Smart parking system
Package Includes:
- 1 x 3 Channel IR Infrared CTRT5000 Line Detection Module
Specifications:
| Power supply | 5V DC |
| Number of channels | 3 |
| Dimensions(LxWxH) | 3x2x1cm |
| Weight | 5gm |
