Description

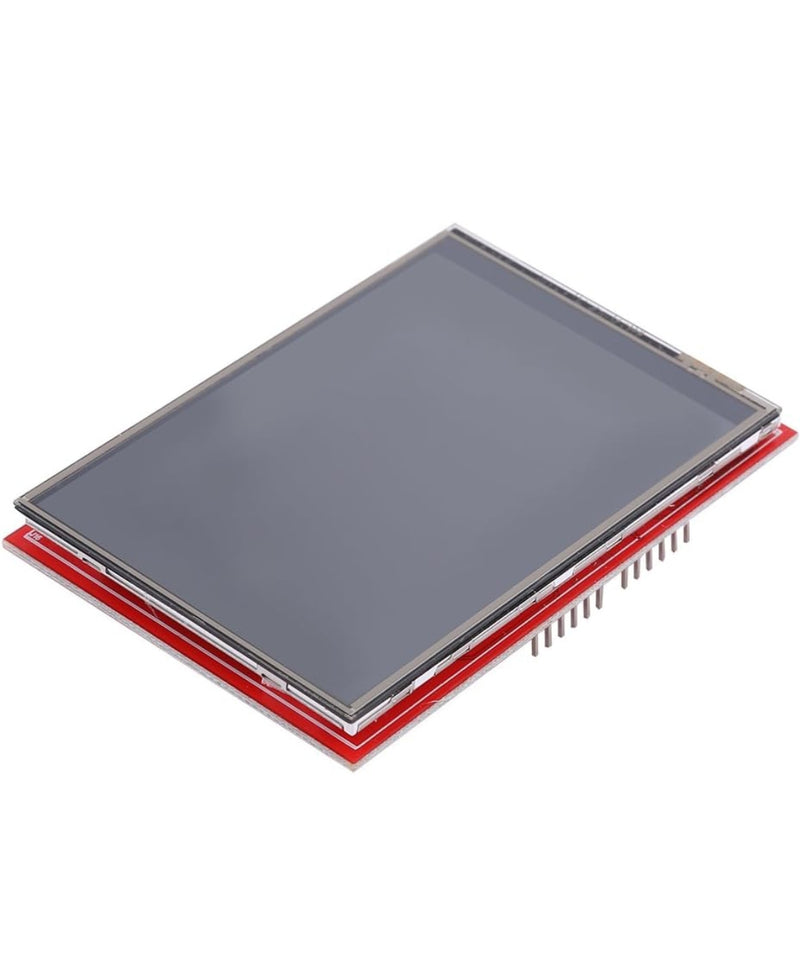

It’s a TFT Module. TFT LCD Display Modules are offered in standard display, resistive touch, and capacitive touch versions, in addition to a variety of sizes. With their color image RGB mode, TFT LCD displays give rich colors, detailed images, and bright graphics. Each pixel on this type of display has its own TFT. These TFTs function as independent switches, allowing the pixels to rapidly change state, and help them turn on and off much more quickly.
Features :
- 3.5-inch color screen, supports 65K color display
- 320X480 resolution, optional touch function
- Using the SPI serial bus, it only takes a few IOs to illuminate the display
- Easy to expand the experiment with SD card slot
- Provides a rich sample program
- Military-grade process standards, long-term stable work
- Provides underlying driver technical support
- Display rich colors.
Specifications :
| Product | 3.5 Inch TFT Module |
| Type | Module |
| Driver IC. |
ILI9488 |
| Touch | Yes |
| Display Size | 3.5 Inch |
| Resolutions | 320X480 (Pixel) |
| Display Color | RGB 65K color |
| Operating Voltage | 3.3/5V |
| Country of Origin | China |
