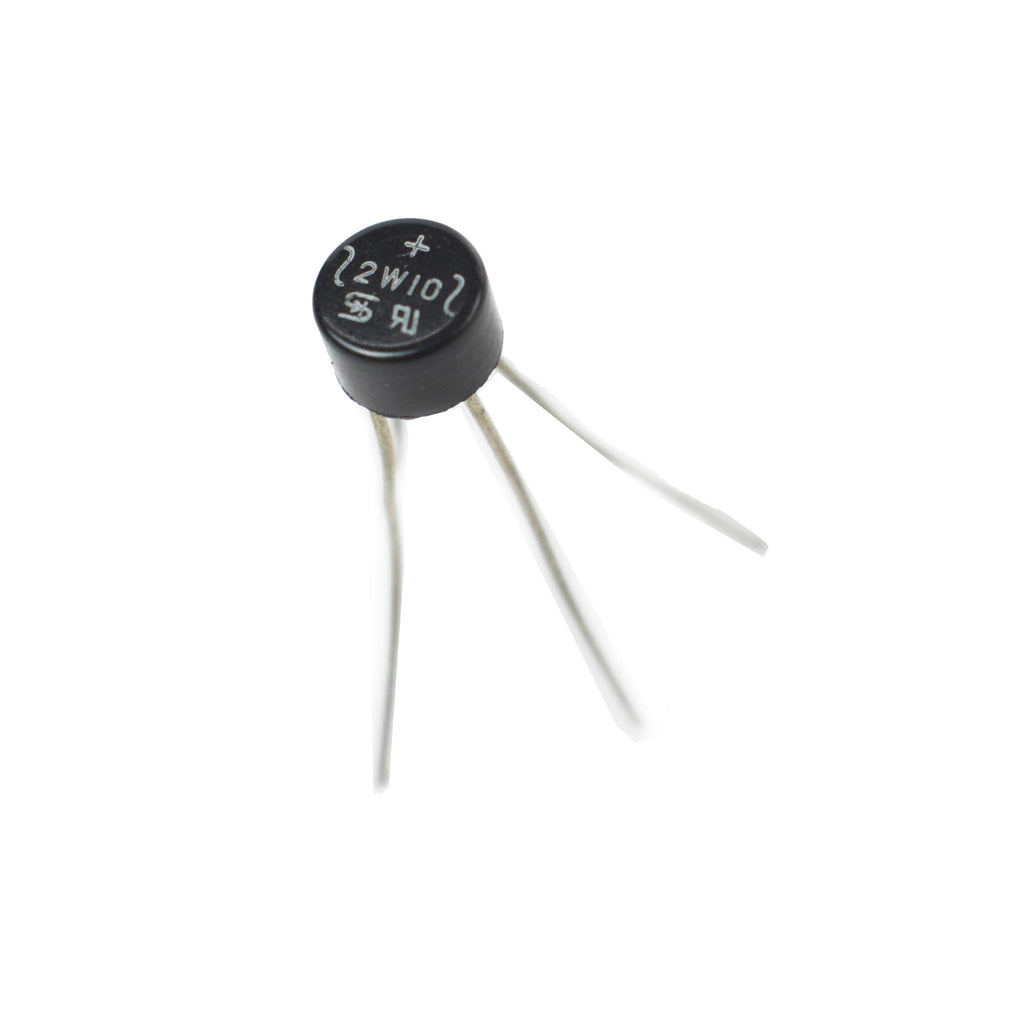

2W10 1000V 2A Single Phase Bridge Rectifier

Save 20%
Sold By: HatchnHackSKU: D12-23

Sale price₹ 8.00 Regular price₹ 10.00

Tax included Shipping calculated at checkout

Min Qty: 10


The 2W10 is  a Single Phase Bridge Rectifier . The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum average current this IC can handle is around  2A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.0V. It has high efficiency and a  surge current capability of 60A. If you are looking for a compact IC for rectification application this can be a good choice.


  • Diffused Junction
  • High Current Capability
  • High Reliability
  • High Surge Current Capability
  • Ideal for Printed Circuit Boards
Model 2W10
Type Bridge Rectifier Diode
Dc blocking voltage 1000 v
Max Vrms  value  700 v
Operating Temperature range  -55°C to 150°C
Storage Temperature range  -55°C to 150°C
Country of Origin China
